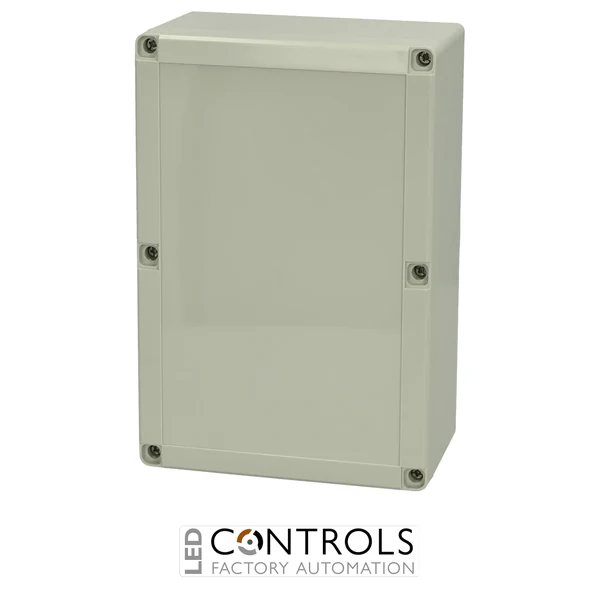

Why Choose the Fibox PCQ3 162409 7035811 Polycarbonate Enclosure?
The Fibox PCQ3 162409 7035811 is a robust polycarbonate electrical enclosure with a grey quick-locking cover designed to house and protect electrical, electronic and automation components in demanding industrial environments. Part of the established Fibox EURONORD 3 enclosure range, it is particularly suited to DIN-rail mounted terminal blocks, sensors and other electrical equipment requiring dependable environmental protection.
Manufactured from durable polycarbonate, the PCQ3 162409 combines excellent electrical insulation with practical mechanical protection. The enclosure features a RAL 7035 light grey base and cover, a polyurethane gasket and quick-locking cover screws, while the base includes screws for fitting a compatible mounting plate or DIN rail.
With external dimensions of 160 × 240 × 90 mm and IP66/IP67 ingress protection, the PCQ3 162409 provides reliable protection against dust and water. It also offers IK07/IK08 impact resistance, continuous operating temperatures from -40 to +80 °C, UV resistance to UL 746C and a UL 94 V-0 flammability rating for demanding electrical and industrial applications.
Key Advantages
- Robust polycarbonate electrical enclosure for industrial applications.
- Quick-locking cover screws provide convenient access during installation and maintenance.
- IP66/IP67 ingress protection against dust and water.
- IK07/IK08 impact resistance for dependable mechanical protection.
- 160 × 240 × 90 mm external dimensions provide practical installation space in a compact format.
- Totally insulated construction for electrical applications.
- Halogen-free, UV-resistant and UL 94 V-0 rated polycarbonate construction.
Key Features
- Fibox EURONORD 3 series.
- Polycarbonate enclosure with grey quick-locking cover.
- 160 × 240 × 90 mm external dimensions.
- RAL 7035 light grey base and cover.
- Polyurethane gasket for environmental sealing.
- Quick-locking cover screws for convenient opening and closing.
- IP66/IP67 protection according to EN 60529.
- IK07/IK08 impact resistance according to EN 62262.
- Totally insulated electrical construction.
- Halogen-free according to DIN/VDE 0472 Part 815.
- UV resistance to UL 746C.
- UL 94 V-0 flammability rating.
- 960 °C glow-wire test rating.
- Base supplied with screws for mounting plate or DIN rail.
Reliable Protection with Quick-Locking Access
Electrical enclosures protect sensitive components from dust, water, accidental contact and mechanical damage. The Fibox PCQ3 162409 combines high ingress protection with durable polycarbonate construction, making it suitable for protecting terminal blocks, sensors, controls and other electrical or electronic equipment in industrial environments.
The quick-locking cover design simplifies access during installation, inspection and maintenance, while the polyurethane gasket helps maintain effective environmental sealing when the enclosure is correctly secured. Compatible accessories include the TRH 24 DIN-35 mounting rail, TM 1624 mounting plate and TH A grey plastic hinges, providing flexible installation options for electrical and automation equipment.
Typical Applications
- Industrial control and automation systems.
- DIN-rail mounted terminal blocks.
- Sensors and instrumentation equipment.
- Electrical junction and distribution applications.
- Machine control and OEM equipment.
- Installations requiring convenient quick-locking enclosure access.
- Indoor and outdoor installations requiring IP66/IP67 protection.
