Why Choose the Fibox ALN 081306 Aluminium Enclosure?

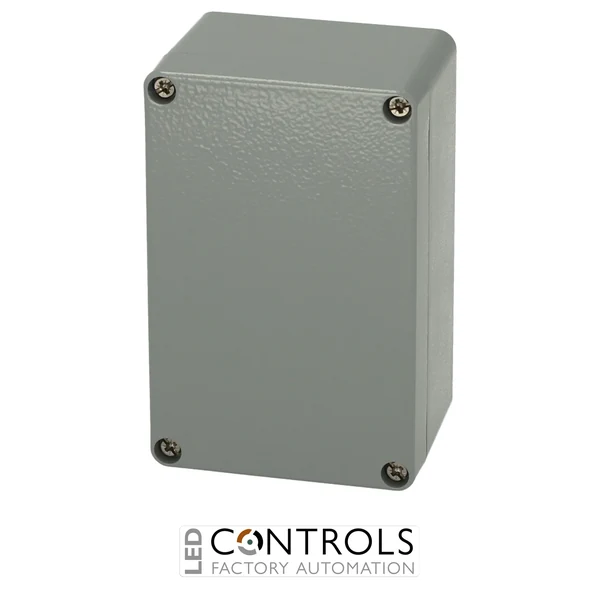

The Fibox ALN 081306, product number 7811150, is a robust painted aluminium electrical enclosure designed to house and protect electrical, electronic and instrumentation components in demanding environments. As part of the Fibox ALN aluminium enclosure series, it combines strong metal construction with high levels of ingress and impact protection.
The enclosure provides IP66, IP67 and IP68 ingress protection in accordance with EN 60529 together with an IK08 impact resistance rating in accordance with EN 62262. The ALN range is particularly suited to applications where mechanical durability, resistance to environmental exposure and EMC shielding characteristics are important.
Measuring 81 mm high × 127 mm wide × 57 mm deep, the ALN 081306 is suitable for DIN rail-mounted terminal blocks, sensors and other compact industrial components. It is supplied with an aluminium base incorporating screws for mounting a plate or DIN rail, together with a cover featuring a polyurethane (PUR) gasket and stainless steel cover screws.
Key Advantages
- Robust painted aluminium enclosure for industrial electrical and electronic equipment.
- IP66, IP67 and IP68 protection against dust and water ingress.
- IK08 impact resistance for demanding industrial environments.
- Compact 81 × 127 × 57 mm enclosure dimensions.
- Wide continuous operating temperature range of -50 to +80 °C.
- Polyurethane gasket and stainless steel cover screws support dependable enclosure sealing.
Key Features
- Fibox ALN aluminium enclosure series.
- Painted aluminium construction.
- IP66 / IP67 / IP68 ingress protection to EN 60529.
- IK08 impact resistance to EN 62262.
- 81 mm height × 127 mm width × 57 mm depth.
- Base and cover finished in RAL 7001.
- Polyurethane gasket.
- Continuous operating temperature range of -50 to +80 °C.
- Short-term temperature range of -50 to +120 °C.
- Halogen-free according to DIN/VDE 0472 Part 815.
- UV resistant to UL 746C.
- UL Type ratings include NEMA 1, 4, 4X, 6, 12 and 13.
Reliable Protection for Electrical and Electronic Equipment
The Fibox ALN series is designed for installations requiring the mechanical strength and protective characteristics of aluminium. The ALN 081306 combines high ingress protection with IK08 impact resistance and a broad operating temperature range, making it suitable for protecting terminals, sensors, instrumentation and electronic components in challenging industrial environments.
Its polyurethane cover gasket helps maintain the enclosure seal, while stainless steel cover screws provide durable fastening. The enclosure base includes screws for mounting a plate or DIN rail, allowing internal components to be arranged to suit the application while retaining the benefits of a purpose-designed industrial enclosure.
Typical Applications
- DIN rail-mounted terminal block installations.
- Industrial sensor and instrumentation housings.
- Electrical terminal and connection applications.
- Industrial control and automation systems.
- Electronic equipment requiring robust environmental protection.
- Applications requiring aluminium construction and EMC shielding characteristics.
