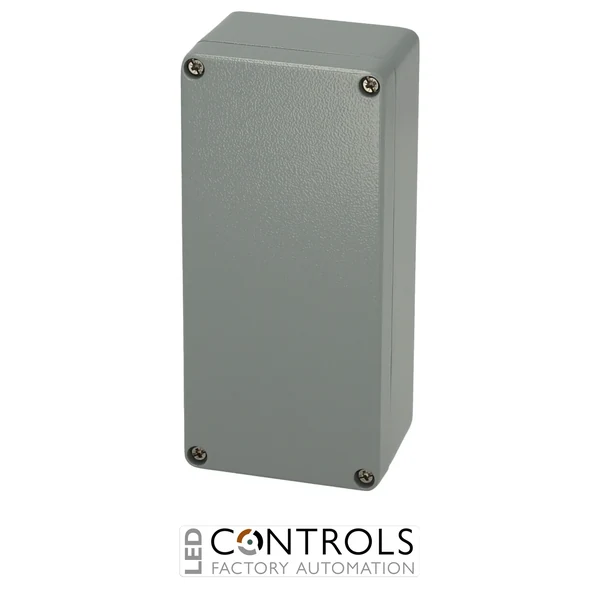

Why Choose the Fibox ALN 081806 Aluminium Enclosure?
The Fibox ALN 081806, product number 7811170, is a robust painted aluminium electrical enclosure designed to protect electrical, electronic and instrumentation components in demanding industrial environments. As part of the Fibox ALN aluminium enclosure series, it combines durable metal construction with high ingress protection, impact resistance and effective EMC shielding characteristics.
The enclosure provides IP66, IP67 and IP68 ingress protection and the ALN series is rated to IK08 impact resistance. Its painted aluminium construction offers high resistance to chemical attack, while the broad temperature capability of the ALN range makes it suitable for applications exposed to demanding environmental conditions.
Measuring 81 mm high × 177 mm wide × 57 mm deep, the ALN 081806 provides useful internal space while retaining a compact profile. The enclosure includes a base with screws for mounting a plate or DIN rail, together with a cover featuring a polyurethane (PUR) gasket and stainless steel cover screws, making it particularly suitable for terminal blocks, sensors and industrial electronic equipment.
Key Advantages
- Robust painted aluminium enclosure for industrial electrical and electronic equipment.
- IP66, IP67 and IP68 protection against dust and water ingress.
- IK08 impact resistance across the Fibox ALN enclosure range.
- Practical 81 × 177 × 57 mm enclosure dimensions.
- Painted aluminium construction provides high resistance to chemical attack.
- Aluminium construction provides useful EMC shielding for sensitive equipment.
Key Features
- Fibox ALN aluminium enclosure series.
- Painted aluminium construction.
- IP66 / IP67 / IP68 ingress protection.
- IK08 impact resistance for the ALN range.
- 81 mm height × 177 mm width × 57 mm depth.
- Polyurethane gasket for reliable cover sealing.
- Stainless steel cover screws.
- Base supplied with screws for mounting plate or DIN rail installation.
- Designed for DIN rail-mounted terminal blocks, sensors and electrical components.
- Painted construction provides enhanced resistance to chemical attack.
- Aluminium construction provides EMC shielding characteristics.
Reliable Protection for Electrical and Electronic Equipment
The Fibox ALN series is designed for applications requiring the mechanical strength and protective characteristics of aluminium. Its combination of high ingress protection, IK08 impact resistance, chemical resistance and EMC shielding makes the ALN 081806 a versatile enclosure for protecting terminals, sensors and electronic equipment in industrial installations.
The enclosure base provides mounting provision for a plate or DIN rail, allowing internal equipment to be arranged to suit the application. A polyurethane cover gasket helps maintain environmental protection, while stainless steel cover screws provide durable fastening for repeated installation and maintenance access.
Typical Applications
- DIN rail-mounted terminal block installations.
- Industrial sensor and instrumentation housings.
- Electrical terminal and junction applications.
- Industrial control and automation systems.
- Electronic equipment requiring robust environmental protection.
- Applications requiring aluminium construction and EMC shielding characteristics.
