Why Choose the ABB 856119 APO Modular Electrical Enclosure?

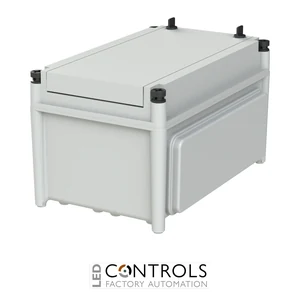

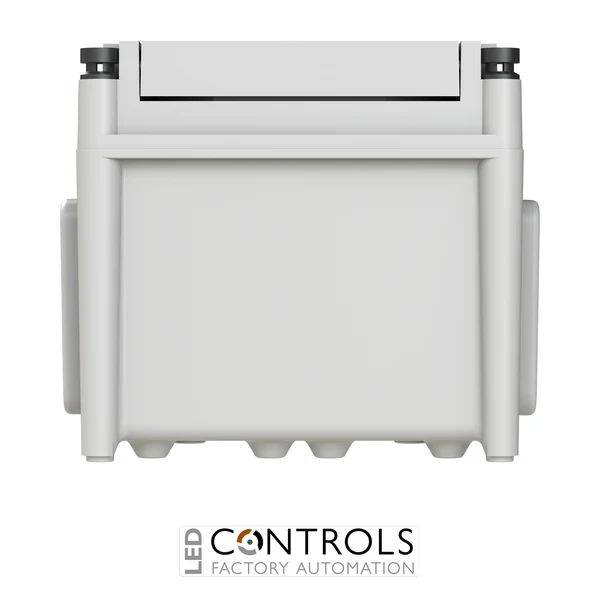

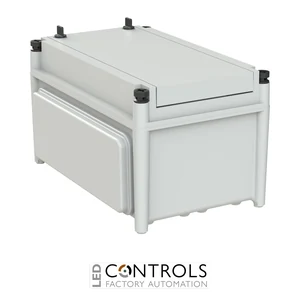

The ABB 856119 Modular Enclosure, manufacturer order code 4TBO856119C0100, is a modular electrical enclosure from the ABB APO Enclosures product range. Featuring a 14-module capacity arranged in a single row, this enclosure provides a dedicated housing format for compatible modular electrical distribution, switching and protection equipment.
Identified by ABB as 856119 Modular Enclosure 14M 1R, the product is designed around a compact, single-row modular arrangement. This configuration is suitable for electrical installations requiring a defined number of modular device positions without the additional rows associated with larger distribution enclosures.
The ABB APO enclosure family supports professional electrical equipment housing applications in commercial and industrial environments. The ABB 856119 provides a practical option for electrical installers and panel builders selecting an enclosure for suitable modular devices, subject to verification of equipment compatibility, mounting arrangements and the required protection characteristics.
Key Advantages
- 14-module capacity provides a defined arrangement for compatible modular electrical equipment.
- Single-row configuration supports straightforward organisation of modular devices.
- ABB APO enclosure range offers a recognised product family for electrical equipment housing.
- Compact modular arrangement is suitable for installations that do not require multiple equipment rows.
- Supports the planning of electrical distribution and circuit protection assemblies.
- Provides a dedicated enclosure format for compatible modular switching devices.
- Suitable for professional electrical installation, maintenance and panel-building projects.
- Clear manufacturer identification simplifies product selection and replacement.
- Can be considered for new electrical installations and compatible refurbishment projects.
Key Features
- Manufacturer: ABB.
- Product reference: 856119.
- ABB manufacturer order code: 4TBO856119C0100.
- Product family: APO Enclosures.
- Product type: Modular electrical enclosure.
- Module capacity: 14 modules.
- Number of rows: 1.
- Manufacturer configuration: 14M 1R.
- Equipment arrangement: Single-row modular layout.
- Designed for compatible modular electrical distribution and protection equipment.
- Applicable to electrical installation and distribution assembly projects.
Single-Row Modular Housing for Electrical Distribution Equipment
The ABB 856119 APO modular enclosure provides a specified capacity of 14 modules in 1 row. This arrangement is relevant to electrical distribution installations using compatible modular devices, including suitably selected circuit breakers, isolators and other modular electrical components.
A single-row enclosure can help installers organise related electrical devices within a defined mounting arrangement. The actual equipment selection should take account of the manufacturer's module dimensions, device widths, electrical clearances, wiring requirements and any necessary accessories.
Compared with the ABB 856120, which provides 28 modules across 2 rows, the ABB 856119 offers a smaller single-row configuration. This makes the 856119 an option where a 14-module capacity is sufficient and a larger two-row enclosure is unnecessary.
Before installation, the external dimensions, mounting method, cover arrangement, ingress protection rating and supplied accessories should be confirmed against the documentation for the exact ABB product. The completed assembly must meet the applicable electrical installation requirements.
Typical Applications
- Compact modular electrical distribution assemblies.
- Low-voltage circuit protection equipment housings.
- Commercial building electrical installations.
- Industrial modular switching and protection arrangements.
- Single-row electrical distribution equipment installations.
- Electrical control and auxiliary distribution assemblies.
- Electrical panel-building and installation projects.
- Maintenance and replacement of compatible ABB APO modular enclosures.
