Pfannenberg CCE 6501 42130505005 is a 5 kW SP industrial process chiller combining Smart Cooling and Precision Cooling functionality for accurate liquid temperature control in machinery and precision manufacturing processes.

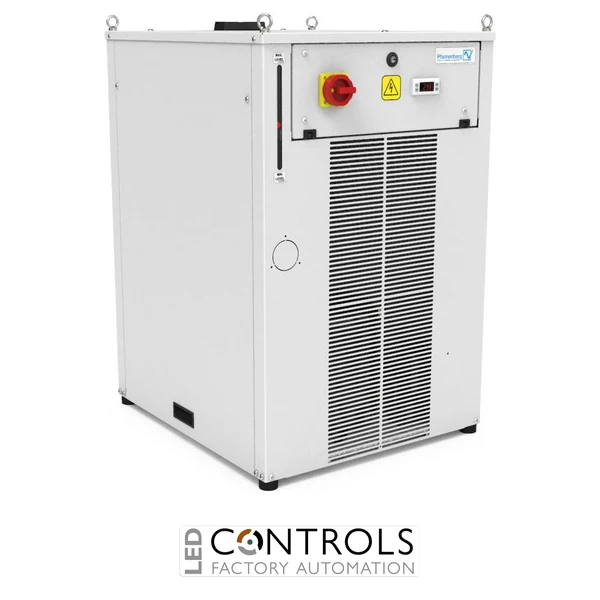

The Pfannenberg CCE 6501 5000 WT CE SP STD, article number 42130505005, is a compact and highly capable 5 kW industrial process chiller designed for precise liquid cooling of machinery, motors and industrial processes. As part of the Pfannenberg CCE compact chiller series, the SP configuration combines Smart Cooling (S) and Precision Cooling (P) functionality for applications requiring enhanced temperature control and monitoring.
Smart Cooling provides advanced temperature control and error detection, while Precision Cooling extends the platform for processes where particularly stable coolant temperatures are important. Combined with the CCE series' programmable control module, service-friendly construction and corrosion-resistant hydraulic circuit, these capabilities make the CCE 6501 SP well suited to machine tools, high-speed machining centres and precision manufacturing equipment.
With a rated cooling capacity of 5 kW at W18/A32, a nominal pump flow rate of 17 l/min and pump pressure of 2.6 bar, the CCE 6501 provides dependable coolant circulation for industrial applications. It operates from a 400 V three-phase supply at 50 Hz or 460 V three-phase supply at 60 Hz and supports water or water/glycol cooling media.
Industrial chillers such as the Pfannenberg CCE 6501 remove process heat by circulating temperature-controlled liquid between the chiller and connected machinery. Maintaining a stable coolant temperature helps minimise thermal expansion, protect temperature-sensitive components and improve process repeatability in machine tools, motors, automation systems and precision production equipment.
The SP configuration is particularly suitable for applications with increased temperature-control requirements. Smart Cooling provides advanced temperature management and error detection, while Precision Cooling is intended for processes where enhanced temperature stability is required. Together, these capabilities provide machine builders and manufacturers with a compact cooling platform for demanding precision applications.
| Manufacturer | Pfannenberg |
|---|---|
| Series | CCE Compact Chillers |
| Model | CCE 6501 5000 WT CE SP STD |
| Article number / SKU | 42130505005 |
| Product type | Industrial process chiller |
| Configuration | SP |
| Smart Cooling | Yes |
| Precision Cooling | Yes |
| Hydraulic Protection | No |
| Cooling capacity | 5 kW at W18/A32 |
| Rated voltage | 400 V AC 3~ / 460 V AC 3~ |
| Frequency | 50 / 60 Hz |
| Voltage tolerance | ±10 % |
| Frequency tolerance | ±1 % |
| Pump flow rate | 17 l/min at 50 Hz |
| Pump pressure | 2.6 bar |
| Ambient temperature | +15 to +50 °C |
| Cooling medium | Water / water-glycol mixture |
| Coolant connection | 3/4-inch BSP female |
| Noise level | <62 dB(A) at 50 Hz according to EN ISO 3741 |
| Dimensions (H × W × D) | approx. 983 × 600 × 727 mm |
| Housing | Powder-coated steel |
| Hydraulic circuit | Non-ferrous components |
| Installation | Stand-alone |
| Control | Programmable control module |
| Certification | CE |
The Pfannenberg CCE 6501 SP is an industrial process chiller designed for precise liquid temperature control in machine tools, motors, manufacturing machinery, automation systems and other temperature-sensitive industrial equipment.
The CCE 6501 provides a rated cooling capacity of 5 kW at W18/A32, including pump power loss, with the rating based on a coolant outlet temperature of +18 °C and ambient temperature of +32 °C.
The SP configuration combines Smart Cooling (S) and Precision Cooling (P), providing advanced temperature control, error detection and enhanced temperature stability for demanding industrial processes.
The CCE 6501 operates from a 400 V three-phase supply at 50 Hz or 460 V three-phase supply at 60 Hz, with a rated voltage tolerance of ±10 %.
The CCE 6501 provides a nominal pump flow rate of 17 l/min at 50 Hz and pump pressure of 2.6 bar for reliable circulation through industrial liquid-cooling circuits.
Pfannenberg CCE compact chillers provide reliable industrial liquid temperature control, with the SP configuration combining Smart Cooling and Precision Cooling functionality for machine builders and manufacturers requiring enhanced process stability, monitoring and temperature management.
