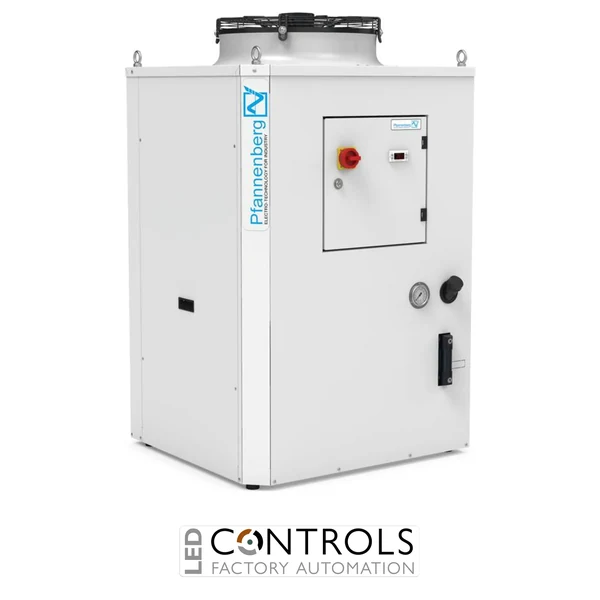

Pfannenberg EB 65 WT CE HSP STD industrial liquid chiller with 6.5 kW cooling capacity designed for advanced process cooling and machinery temperature control.
The Pfannenberg EB 65 WT CE HSP STD 42030655021 is a high-performance industrial liquid chiller designed for precise cooling of machinery, process equipment and industrial automation systems. As part of the advanced Pfannenberg EB 2.0 chiller series, it delivers reliable fluid temperature control with enhanced hydraulic and monitoring features for demanding industrial applications.
This chiller combines a robust steel housing with thick powder coating, separate refrigeration and hydraulic circuits, and a programmable control module that enables accurate regulation of cooling medium temperature with minimal temperature hysteresis. The HSP configuration includes advanced options such as hot-gas bypass, differential temperature control, hydraulic protection and additional monitoring functions for improved system performance.
With a cooling capacity of 6.5 kW and a 400 V AC three-phase / 460 V AC three-phase supply, the EB 65 WT CE HSP STD is ideal for industrial machinery, production equipment and process cooling systems requiring reliable and continuous thermal management.
Industrial chillers such as the Pfannenberg EB 65 WT CE HSP STD remove heat from circulating fluids to maintain stable operating temperatures for machinery and production systems. This controlled cooling helps protect components, improve reliability and support consistent industrial processes.
The EB 2.0 WT series is engineered for applications requiring dependable cooling, robust construction and precise temperature regulation. The HSP configuration provides enhanced hydraulic monitoring and protection features, making it suitable for complex industrial cooling installations.
| Manufacturer | Pfannenberg |
|---|---|
| Series | EB 2.0 WT Chillers |
| Model | EB 65 WT CE HSP STD |
| Part number | 42030655021 |
| Product type | Industrial liquid chiller |
| Cooling capacity | 6.5 kW |
| Supply voltage | 400 V AC / 460 V AC |
| Supply frequency | 50 / 60 Hz |
| Phase | Three phase |
| Pump type | Centrifugal pump |
| Nominal pump flow rate | 17 l/min |
| Pump pressure | 3 bar (50 Hz) / 5.2 bar (60 Hz) |
| Cooling medium | Water/glycol 80/20 |
| Cooling medium temperature range | +13...+35 °C |
| Factory temperature setting | +18 °C |
| Ambient temperature range | +15...+45 °C |
| Refrigerant | R410A |
| Refrigerant charge | 1.05 kg |
| Tank volume | 50 l |
| Maximum power consumption | 3 kW (50 Hz) / 4 kW (60 Hz) |
| Maximum current consumption | 7 A (50 Hz) / 8 A (60 Hz) |
| Control voltage | 24 V AC |
| Protection rating | IP54 |
| Noise level | approx. 71 dB(A) |
| Weight | approx. 130 kg |
| Medium connection | IG 3/4" BSP |
| Colour | RAL 7035 |
The EB 65 WT CE HSP STD is an industrial liquid chiller designed for cooling machinery, process equipment and automation systems requiring accurate temperature control.
The Pfannenberg EB 65 WT CE HSP STD provides a cooling capacity of 6.5 kW.
The unit operates from a 400 V AC three-phase / 460 V AC three-phase supply.
The chiller is designed for water, water/glycol mixtures and low-viscosity oils, with the standard specification using an 80/20 water/glycol mixture.
The HSP configuration includes differential temperature control, temperature alarms, tank level control, phase monitoring, flow switching, hydraulic protection and hot-gas bypass functionality.
Pfannenberg EB series chillers are trusted by engineers worldwide for reliable process cooling, advanced monitoring capability and precise temperature control in demanding industrial applications.
