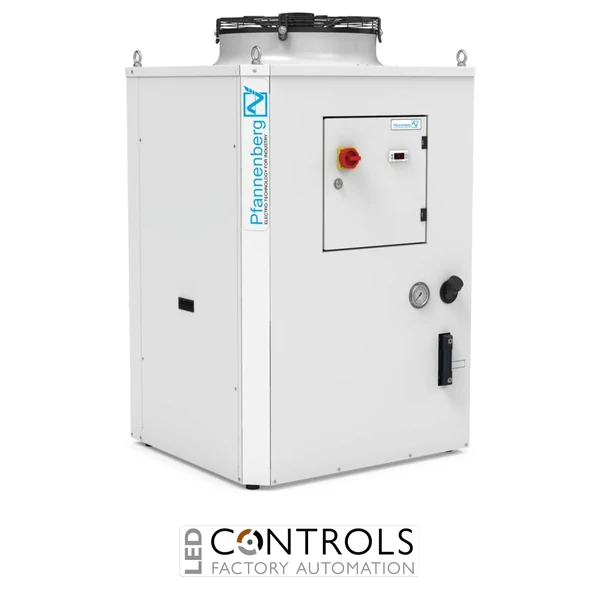

Pfannenberg EB 80 WT CE H STD industrial liquid chiller with 8 kW cooling capacity designed for reliable process cooling and machinery temperature control.
The Pfannenberg EB 80 WT CE H STD 42030805009 is a high-performance industrial liquid chiller designed for reliable cooling of machinery, process equipment and industrial automation systems. As part of the advanced Pfannenberg EB 2.0 WT chiller series, it provides efficient liquid cooling with enhanced hydraulic functionality for demanding industrial applications.
This chiller features a robust steel housing with thick powder coating, separate refrigeration and hydraulic circuits, and a programmable control module that allows accurate cooling medium temperature regulation with small temperature hysteresis. The H configuration includes additional installed features such as electric tank level control, electronic thermostat, phase monitoring, flow switch, hydraulic relief valve and a non-ferrous hydraulic circuit.
With a cooling capacity of 8 kW and a 400 V AC three-phase / 460 V AC three-phase supply, the EB 80 WT CE H STD is suitable for industrial machinery, production equipment and process cooling systems requiring continuous and dependable thermal management.
Industrial chillers such as the Pfannenberg EB 80 WT CE H STD maintain stable operating temperatures by removing heat from circulating cooling fluids. This helps protect machinery components, improve process reliability and support consistent performance in industrial environments.
The EB WT series is designed for engineers requiring dependable cooling performance, robust construction and precise temperature regulation. Its integrated pump system, programmable controller and enhanced hydraulic monitoring make it suitable for modern manufacturing and automation applications.
| Manufacturer | Pfannenberg |
|---|---|
| Series | EB 2.0 WT Chillers |
| Model | EB 80 WT CE H STD |
| Part number | 42030805009 |
| Product type | Industrial liquid chiller |
| Cooling capacity | 8 kW |
| Supply voltage | 400 V AC / 460 V AC |
| Supply frequency | 50 / 60 Hz |
| Phase | Three phase |
| Pump type | Centrifugal pump |
| Nominal pump flow rate | 21 l/min |
| Pump pressure | 3 bar (50 Hz) / 5 bar (60 Hz) |
| Cooling medium | Water/glycol 20% |
| Cooling medium temperature range | +13...+35 °C |
| Factory temperature setting | +18 °C |
| Ambient temperature range | +15...+45 °C |
| Refrigerant | R410A |
| Refrigerant charge | 1.1 kg |
| Tank volume | 50 l |
| Maximum power consumption | 3.5 kW (50 Hz) / 4.7 kW (60 Hz) |
| Maximum current consumption | 8 A (50 Hz) / 8.5 A (60 Hz) |
| Control voltage | 24 V AC |
| Protection rating | IP54 |
| Noise level | approx. 71 dB(A) |
| Weight | approx. 130 kg |
| Colour | RAL 7035 |
The EB 80 WT CE H STD is an industrial liquid chiller designed for cooling machinery, process equipment and automation systems requiring reliable temperature control.
The Pfannenberg EB 80 WT CE H STD provides a cooling capacity of 8 kW.
The unit operates from a 400 V AC three-phase / 460 V AC three-phase supply.
The chiller is designed for water and water/glycol mixtures, with the standard specification using a 20% glycol mixture.
The H configuration includes electric tank level control, electronic thermostat, phase monitoring, flow switch, hydraulic relief valve and a non-ferrous hydraulic circuit.
Pfannenberg EB series chillers are trusted by engineers worldwide for reliable process cooling, advanced hydraulic functionality and precise temperature control in demanding industrial applications.
