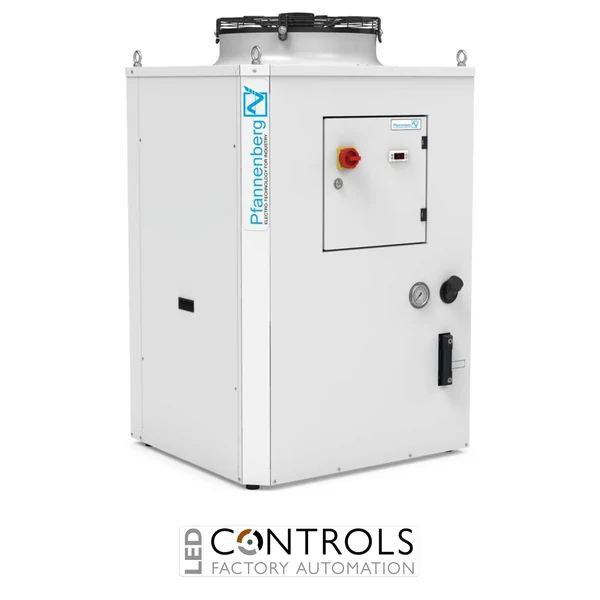

Pfannenberg EB 95 WT CE SP STD industrial liquid cooling chiller with 9.5 kW cooling capacity designed for reliable process cooling and temperature control.
The Pfannenberg EB 95 WT CE SP STD is a robust industrial liquid cooling chiller designed to provide reliable temperature control for water and water-glycol circuits in demanding manufacturing and automation applications. As part of the proven Pfannenberg EB series, it delivers efficient process cooling performance for machine tools, industrial equipment and systems requiring stable thermal management.
This active liquid cooler combines a dedicated refrigeration circuit with a separate hydraulic circuit to maintain consistent cooling performance. The SP configuration includes additional installed features such as a polypropylene air filter, hot-gas bypass, error message indication, fan control, anti-vibration damper, lifting eyebolt, non-ferrous hydraulic circuit, differential thermostat and electronic thermostat control.
With a cooling capacity of 9.5 kW, a 400 V / 460 V three-phase supply and support for water + glycol 20% cooling fluid, the EB 95 WT CE SP STD is designed for reliable industrial cooling where accurate temperature regulation and continuous operation are required.
Industrial chillers such as the Pfannenberg EB 95 WT CE SP STD remove heat from process fluids and circulate cooled liquid through connected machinery. This allows equipment to maintain stable operating temperatures while improving reliability and protecting sensitive components.
The EB series is engineered for industrial users requiring efficient cooling performance, simple integration and dependable operation. Its programmable control module enables precise regulation of the cooling medium temperature and supports modern manufacturing requirements.
| Manufacturer | Pfannenberg |
|---|---|
| Series | EB Liquid Cooling Chillers |
| Model | EB 95 WT CE SP STD |
| Part number | 42030955015 |
| Product type | Industrial liquid cooling chiller |
| Cooling capacity | 9.5 kW |
| Refrigerant type | R410A |
| Refrigerant group | 2 |
| Refrigerant charge | 1.15 kg |
| Cooling fluid | Water + glycol 20% |
| Cooling fluid set point range | 13–35 °C |
| Factory set point | 18 °C |
| Tank volume | 50 L |
| Pump type | Centrifugal |
| Nominal flow rate | 26 L/min |
| Nominal pressure | 3 bar at 50 Hz / 4.4 bar at 60 Hz |
| Power supply | 400/460 V AC, 3-phase, 50/60 Hz |
| Control circuit | 24 V AC |
| Maximum power input | 3.90 kW at 50 Hz / 5.20 kW at 60 Hz |
| Maximum current input | 8.5 A at 50 Hz / 9.5 A at 60 Hz |
| Protection rating | IP54 |
| Colour | RAL 7035 |
| Noise level | 71 dB(A) |
| Weight | approx. 130 kg |
| Ambient temperature range | 15–45 °C |
This chiller is used for industrial liquid cooling applications requiring stable process temperatures for machinery and production equipment.
The EB 95 WT CE SP STD provides a cooling capacity of 9.5 kW.
The unit supports water and glycol 20% cooling mixtures.
The chiller operates from a 400/460 V AC three-phase supply at 50/60 Hz.
The SP configuration includes additional features including hot-gas bypass, fan control, differential thermostat, electronic thermostat, non-ferrous hydraulic circuit and other installed accessories.
Pfannenberg EB series chillers are trusted by engineers and manufacturers worldwide to provide reliable liquid cooling, precise temperature control and efficient operation in demanding industrial environments.
