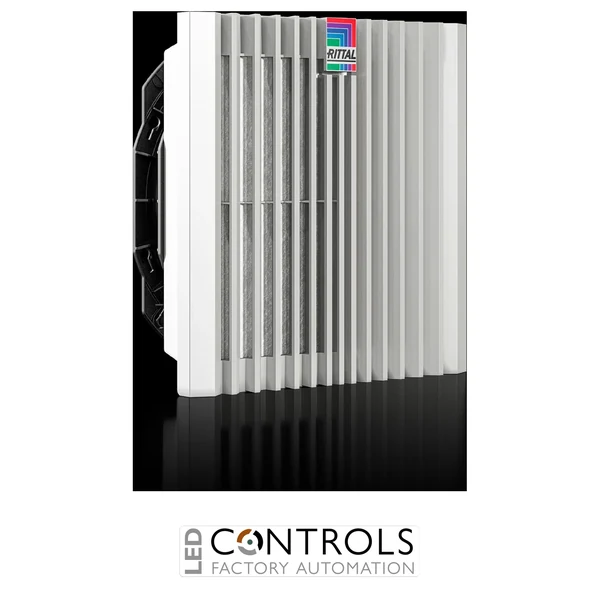

Rittal SK3240.800 Blue e+ EMC fan-and-filter unit providing 175/157 m³/h filtered airflow from a 230 V single-phase 50/60 Hz supply with IP54 protection and EMC shielding for industrial enclosures.
£323.09
The Rittal SK3240.800 is a high-performance Blue e+ EMC fan-and-filter unit designed to provide reliable filtered ventilation while maintaining electromagnetic shielding in industrial electrical enclosures. Its EMC design provides a high shielding and attenuation effect and meets requirement category 2 according to EN 61587-3, making it particularly suitable for sensitive electronic and automation installations.
Operating from a 230 V AC single-phase, 50/60 Hz supply, the SK3240.800 delivers an unimpeded airflow of 175 m³/h at 50 Hz and 157 m³/h at 60 Hz with its EMC chopped-fibre filter. When paired with the corresponding outlet filter, airflow is approximately 130 m³/h at 50 Hz and 112 m³/h at 60 Hz.
Measuring 255 × 255 × 129 mm and finished in RAL 7035 light grey, the unit features Rittal diagonal fan technology for improved pressure stability and more uniform enclosure ventilation. Tool-free mounting, optimised detent hooks and an easy-opening louvred grille simplify installation and filter maintenance, while standard IP54 protection supports dependable operation in industrial environments.
Electrical enclosures containing drives, PLCs, power electronics and communication equipment often require both effective heat dissipation and protection against electromagnetic interference. The Rittal SK3240.800 combines forced-air ventilation with EMC shielding, allowing filtered ambient air to cool enclosure components while helping maintain the shielding performance of the installation.
Rittal's diagonal fan technology improves pressure stability to promote more even and consistent ventilation throughout the enclosure. Combined with the supplied EMC filter mat and requirement category 2 performance according to EN 61587-3, the SK3240.800 provides a practical cooling solution for sensitive industrial electronics and automation systems.
| Manufacturer | Rittal |
|---|---|
| Series | SK Blue e+ |
| Model | SK3240.800 |
| Article number | 3240800 |
| Product type | EMC fan-and-filter unit |
| Design | Wall-mounted, EMC |
| Rated operating voltage | 230 V AC, 1~ |
| Frequency | 50/60 Hz |
| Unimpeded airflow with chopped-fibre filter | 175 m³/h at 50 Hz / 157 m³/h at 60 Hz |
| Airflow with matching outlet filter | 130 m³/h at 50 Hz / 112 m³/h at 60 Hz |
| Rated power | 33.1 W at 50 Hz / 37.3 W at 60 Hz |
| Maximum rated current | 0.20 A at 50 Hz / 0.21 A at 60 Hz |
| Fan | Diagonal, shaded-pole motor |
| Fan bearing | Ball bearing |
| EMC performance | Requirement category 2 according to EN 61587-3 |
| Protection rating | IP54 with chopped-fibre filter |
| Protection with hose-proof hood | IP56 |
| NEMA protection | Type 12 with chopped-fibre filter |
| Pre-fuse | 2 A |
| Operating temperature | -30 to +55 °C |
| Storage temperature | -30 to +70 °C |
| Noise level | 48 dB(A) at 50 Hz / 45 dB(A) at 60 Hz |
| Width | 255 mm |
| Height | 255 mm |
| Depth | 129 mm |
| Installation depth | 108 mm |
| Mounting cut-out | 224 × 224 mm |
| Material | Plastic |
| Colour | RAL 7035 light grey |
| Net weight | approx. 2.16 kg |
| Pack quantity | 1 piece |
| EAN | 4028177998094 |
| ETIM | EC000320 |
The SK3240.800 provides filtered forced-air cooling with EMC shielding for industrial electrical enclosures containing sensitive electronic and automation equipment.
With its EMC chopped-fibre filter, the unit provides an unimpeded airflow of 175 m³/h at 50 Hz and 157 m³/h at 60 Hz.
The fan-and-filter unit operates from a 230 V AC single-phase supply at 50/60 Hz.
The EMC fan-and-filter unit provides a high shielding and attenuation effect and meets requirement category 2 according to EN 61587-3.
The unit provides IP54 protection with its chopped-fibre filter and can achieve IP56 when installed with the appropriate Rittal hose-proof hood.
Rittal Blue e+ EMC fan-and-filter units combine reliable enclosure ventilation with effective electromagnetic shielding, helping protect sensitive industrial electronics while maintaining controlled airflow and dependable operating temperatures.
