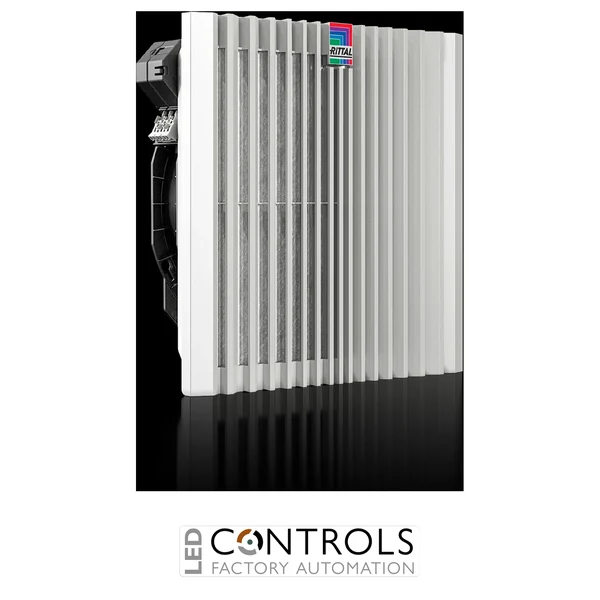

Rittal SK 3245.800 Blue e+ EMC fan-and-filter unit for industrial enclosure cooling, providing 931 m³/h airflow from a 200-240 V single-phase supply with an EC motor, EMC shielding, intelligent control interfaces and a 323 x 323 x 161 mm RAL 7035 housing.
£731.05
The Rittal SK 3245.800 is a high-capacity Blue e+ EMC fan-and-filter unit designed to provide powerful filtered forced-air cooling while helping preserve the electromagnetic shielding of industrial electrical enclosures. Rittal specifies a high shielding and attenuation effect meeting requirement category 2 to EN 61587-3, making the unit particularly suitable for cabinets containing sensitive automation, communication and electronic equipment.
The SK 3245.800 combines a diagonal fan with an energy-efficient EC motor and an EMC filter mat. Diagonal fan technology provides improved pressure stability for more even and consistent enclosure ventilation, while optimised detent hooks allow fast, tool-free installation. A convenient opening mechanism on the louvred grille also simplifies routine filter inspection and replacement.
Operating from a 200–240 V single-phase, 50/60 Hz supply, the SK 3245.800 provides an unimpeded airflow of 931 m³/h with its EMC filter mat. Its 323 × 323 × 161 mm RAL 7035 housing, integrated EC control interfaces and EMC construction make it a powerful enclosure climate control solution where high airflow, energy efficiency and electromagnetic compatibility are all important.
Fan-and-filter units provide forced-air enclosure cooling by drawing cooler ambient air through filter media and circulating it across heat-generating components. A suitably positioned outlet filter allows heated air to leave the cabinet, creating continuous airflow that helps control internal temperatures and reduce thermal stress on PLCs, drives, power electronics and other industrial equipment.
Ventilation openings can compromise the electromagnetic shielding of an enclosure, particularly where sensitive electronic equipment is installed. The Rittal SK 3245.800 addresses both requirements by combining 931 m³/h airflow with EMC shielding and an EC fan platform offering control, speed feedback, fault signalling and RS485 communication. This makes it particularly suitable for demanding applications where thermal management and electromagnetic compatibility must be considered together.
| Manufacturer | Rittal |
|---|---|
| Series | SK Blue e+ |
| Model | SK 3245.800 |
| Product type | EMC fan-and-filter unit |
| Design | Wall-mounted, EMC |
| EMC performance | Requirement category 2 to EN 61587-3 |
| Air throughput, unimpeded | 931 m³/h |
| Air throughput with matching outlet filter | 728 m³/h |
| Rated operating voltage | 200–240 V AC |
| Input phases | 1-phase |
| Frequency | 50 / 60 Hz |
| Power consumption | 173.5 W |
| Maximum rated current | 1.38 A |
| Fan type | Diagonal fan |
| Motor technology | EC motor |
| Control input | 0–10 V / PWM |
| Monitoring output | Speed output |
| Fault monitoring | Floating fault signal contact |
| Communication interface | RS485, Modbus |
| Protection rating | IP51 with EMC filter mat |
| Enhanced protection with hood | IP56 with EMC filter mat and hose-proof hood |
| NEMA protection | Type 12 with EMC filter mat |
| Enhanced NEMA protection | Type 3 and Type 3R with EMC filter mat and hose-proof hood |
| Mounting type | Tool-free snap mounting |
| Material | Plastic |
| Colour | RAL 7035 |
| Width | 323 mm |
| Height | 323 mm |
| Depth | 161 mm |
| Dimensions (W × H × D) | 323 × 323 × 161 mm |
| Installation depth | 141 mm |
| Mounting cut-out | 292 × 292 mm |
| Operating temperature range | -25 °C to 55 °C |
| Storage temperature range | -25 °C to 70 °C |
| Noise level | 72 dB(A) |
| Supply includes | Complete unit ready to install with EMC filter mat |
| Pack quantity | 1 pc |
| Weight per pack | 3.1 kg |
| EAN | 4028177997837 |
| Customs tariff number | 84145915 |
The SK 3245.800 provides high-capacity filtered forced-air cooling with EMC shielding for electrical enclosures containing sensitive industrial electronic, automation and communication equipment.
The SK 3245.800 provides an unimpeded airflow of 931 m³/h with its EMC filter mat. When used with a matching outlet filter, the airflow is 728 m³/h.
The Rittal SK 3245.800 operates from a 200–240 V single-phase AC supply at 50/60 Hz.
The SK 3245.800 provides a 0–10 V / PWM input, speed output, floating fault signal contact and RS485 Modbus interface, allowing the EC fan to be integrated into advanced enclosure climate control and monitoring systems.
The SK 3245.800 incorporates EMC shielding and an EMC filter mat and meets requirement category 2 to EN 61587-3, helping maintain electromagnetic compatibility while providing high-volume enclosure ventilation.
Rittal Blue e+ EMC fan-and-filter units combine high-volume filtered airflow, energy-efficient EC fan technology, intelligent control interfaces and electromagnetic shielding to provide dependable thermal management for demanding industrial electrical and electronic enclosures.
