Why Choose the Rittal SK 3311.370 Remote Condenser for LCP DX?

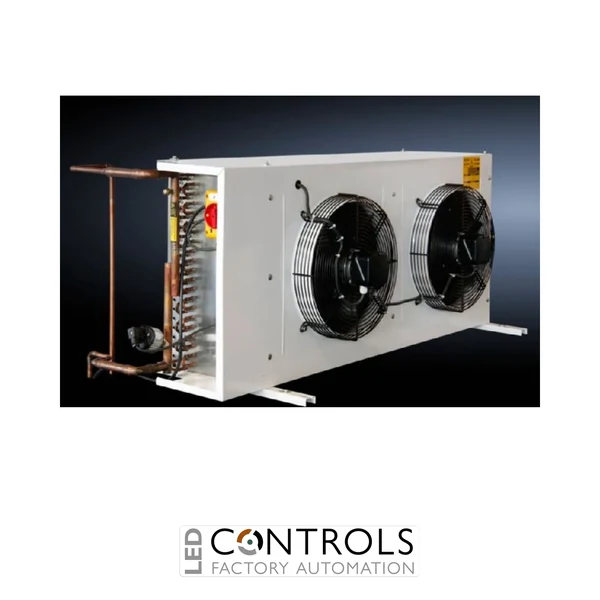

The Rittal SK 3311.370 is a high-performance 35 kW air-cooled remote condenser for refrigerant-based Rittal LCP DX cooling systems. It provides the external heat-rejection stage required for compatible direct-expansion Liquid Cooling Package installations, transferring heat absorbed from high-density IT equipment to the surrounding environment.
Designed specifically for LCP DX applications, the SK 3311.370 incorporates an external condenser and two fan modules. Fan speed is automatically controlled as a function of pressure within the refrigeration circuit, allowing condenser airflow to respond dynamically to operating conditions and helping maintain reliable refrigeration performance.
The condenser provides a maximum cooling output of 35 kW and is designed for use with R410A refrigerant. Its robust spray-finished sheet-steel construction features a powder-coated, zinc-plated surface in RAL 9003, while suitability for both roof and wall mounting provides installation flexibility for data centre cooling projects.
Key Advantages
- High-capacity 35 kW remote condenser for Rittal LCP DX cooling systems.
- Provides the external heat-rejection stage required for compatible refrigerant-based LCP installations.
- Equipped with two pressure-dependent, speed-controlled fan modules.
- Designed for operation with R410A refrigerant.
- Flexible installation with suitability for roof or wall mounting.
- Robust powder-coated, zinc-plated sheet-steel construction for demanding applications.
Key Features
- Rittal SK condenser unit for LCP DX.
- 35 kW maximum cooling output.
- Air-cooled external condenser design.
- Two fan modules for condenser airflow.
- Pressure-dependent speed-controlled fan operation.
- R410A refrigerant compatibility.
- 230 V AC, single-phase, 50/60 Hz rated operating voltage.
- Suitable for roof and wall mounting.
- Spray-finished sheet-steel construction.
- Powder-coated and zinc-plated surface finish.
- RAL 9003 colour.
- Supplied with base unit and assembly parts.
High-Capacity Heat Rejection for LCP DX Cooling Systems
Direct-expansion LCP systems remove heat from high-density IT infrastructure through a closed refrigerant circuit. The remote condenser performs an essential role by rejecting this absorbed thermal energy to the ambient environment, allowing the refrigerant to condense and continue through the refrigeration cycle.
With up to 35 kW cooling capacity, the Rittal SK 3311.370 supports demanding data centre cooling applications. Its two pressure-controlled fan modules automatically adapt condenser airflow to refrigeration circuit conditions, supporting efficient heat rejection and dependable operation of compatible Rittal LCP DX equipment.
Typical Applications
- Rittal LCP Inline DX cooling systems.
- Compatible refrigerant-based Rittal LCP installations.
- High-density data centre cooling systems.
- Server and network infrastructure requiring direct-expansion cooling.
- Remote heat rejection for 35 kW LCP DX applications.
- Data centre installations requiring roof- or wall-mounted air-cooled condensers.
