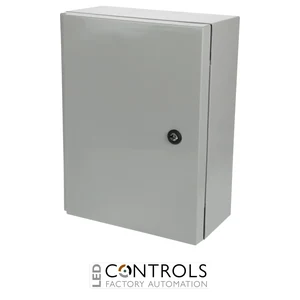

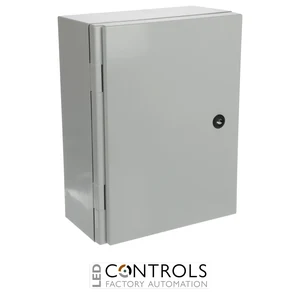

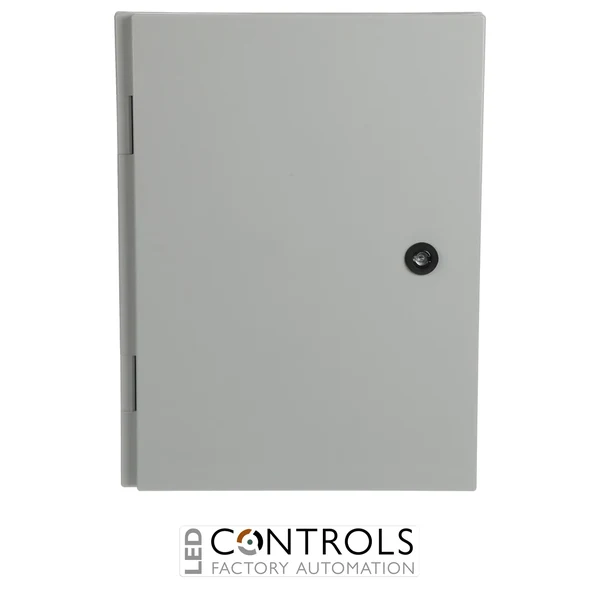

Why Choose the ABB 831036 ARIA 43 IP66 Enclosure with Three-Point Locking?
The ABB 831036, manufacturer designation AR043P33, is a robust ARIA 43 glass-fibre reinforced polyester electrical enclosure designed for low-voltage distribution, industrial control and electrical equipment protection. With dimensions of 315 mm wide × 415 mm high × 170 mm deep, this enclosure combines compact construction with a secure blind-door arrangement and a three-point locking mechanism.
Part of the established ABB ARIA universal polyester enclosure range, the AR043P33 provides IP66 ingress protection and IK08 mechanical impact resistance. Its light grey RAL 7035 housing is manufactured from through-dyed, hot-pressed, glass-fibre reinforced polyester, offering a durable, electrically insulating enclosure solution for demanding installation environments.
The ABB 831036 features a 3 mm double-bit central lock operating a three-point closure mechanism, providing secure and consistent door fastening. With a rated insulation voltage of 1,000 V, self-extinguishing, halogen-free construction and compatibility with dedicated ARIA mounting accessories, this enclosure is a practical choice for professional electrical panel builders, contractors and maintenance engineers.
Key Advantages
- IP66 ingress protection: Provides dust-tight protection and resistance to powerful water jets when correctly installed.
- IK08 impact resistance: Offers mechanical protection suitable for demanding electrical installation environments.
- Three-point locking: Secures the enclosure door at multiple points using a centrally operated locking mechanism.
- 3 mm double-bit lock: Provides controlled access using a standard industrial enclosure locking arrangement.
- Glass-fibre reinforced polyester: Combines mechanical strength, corrosion resistance and electrical insulation.
- Rated insulation voltage of 1,000 V: Supports appropriately designed low-voltage electrical assemblies.
- Halogen-free, self-extinguishing material: Provides useful material characteristics for electrical equipment housing.
- Compact enclosure dimensions: The 315 × 415 × 170 mm format suits installations where available mounting space is limited.
- Light grey RAL 7035 finish: Provides a consistent appearance for industrial and commercial electrical installations.
- ABB ARIA accessory compatibility: Supports configuration using suitable mounting plates, mounting frames and internal cover accessories.
Key Features
- ABB ARIA 43 universal polyester enclosure.
- AR043P33 manufacturer type designation.
- 315 × 415 × 170 mm nominal enclosure dimensions.
- Blind-door configuration without a transparent inspection window.
- Three-point door locking system.
- 3 mm double-bit central lock.
- IP66 ingress protection rating.
- IK08 mechanical impact resistance rating.
- Glass-fibre reinforced polyester enclosure construction.
- Light grey RAL 7035 colour.
- 1,000 V rated insulation voltage.
- Self-extinguishing and halogen-free enclosure material.
- 70 °C continuous temperature capability, with manufacturer-stated peak temperature capability up to 130 °C.
- Surface-mounted installation arrangement.
- Internal threaded mounting points for compatible mounting plates and frames.
- Suitable for electrical distribution, automation and industrial control applications.
Reliable IP66 Protection with Secure Three-Point Door Locking
Electrical enclosures must protect installed equipment while allowing appropriate access for inspection, maintenance and modification. The ABB 831036 ARIA 43 enclosure provides a robust housing solution with a high level of environmental protection, making it suitable for electrical distribution and control applications where dust, moisture and mechanical exposure must be considered.
The enclosure's IP66 protection rating indicates resistance to dust ingress and powerful water jets under the applicable test conditions. Its IK08 mechanical impact rating provides additional resistance to external impacts, helping protect the enclosure and its contents in demanding operating environments.
The glass-fibre reinforced polyester construction offers useful mechanical and electrical insulation properties. Unlike conventional unprotected steel housings, the polyester enclosure material is inherently resistant to corrosion, making it appropriate for many industrial, commercial and exposed installation environments.
A distinguishing feature of the AR043P33 is its three-point locking mechanism. The centrally operated 3 mm double-bit lock secures the door through multiple closure points, supporting consistent door engagement and helping maintain the enclosure's intended protective characteristics when correctly assembled and closed.
The enclosure's 1,000 V rated insulation voltage and self-extinguishing, halogen-free material make it suitable for consideration in appropriately designed low-voltage electrical assemblies. Its stated temperature capability provides additional flexibility, although actual equipment operating temperatures must be assessed against the thermal requirements of the completed installation.
For internal equipment installation, the ARIA 43 range offers compatible mounting accessories, including the AR043M03 steel mounting plate and AR043D03 mounting frame. These accessories support different electrical assembly configurations and should be ordered separately where required.
Outdoor or demanding-environment installation must still account for cable entries, condensation, ultraviolet exposure, mounting orientation and the operating conditions of the equipment inside. The completed assembly must preserve the required protection rating, and the enclosure must be installed in accordance with ABB instructions and applicable electrical safety requirements.
Typical Applications
- Industrial electrical distribution enclosures.
- Low-voltage switchgear and control assemblies.
- Outdoor electrical equipment housings where the completed installation is appropriately designed.
- Building services electrical distribution systems.
- Industrial automation and control panels.
- Electrical instrumentation and monitoring equipment.
- Commercial electrical installation projects.
- Water treatment and utility control equipment.
- Manufacturing and process control installations.
- Electrical panels requiring IP66 environmental protection.
- Installations requiring secure three-point enclosure door locking.
- Replacement of compatible ABB ARIA 43 enclosure assemblies.
