Why Choose the ABB 831051 ARIA 54 Polyester Enclosure?

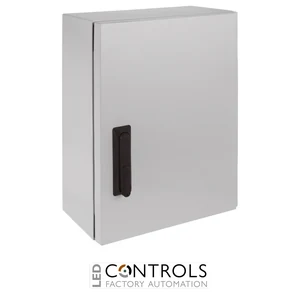

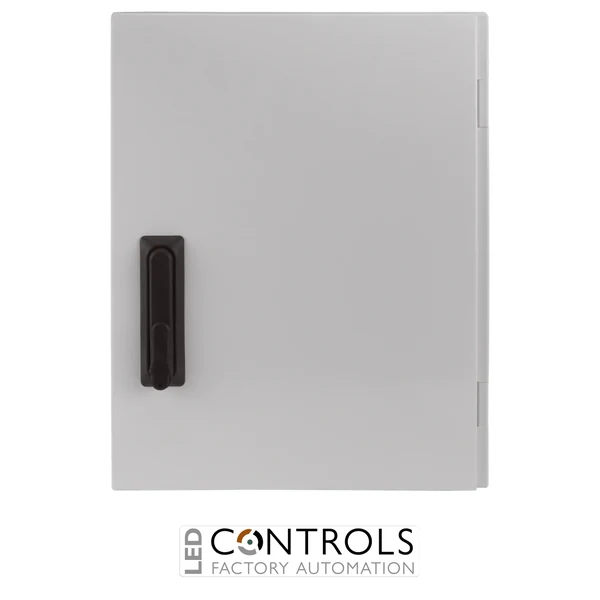

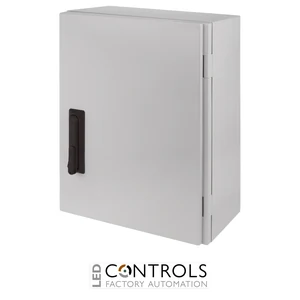

The ABB 831051, manufacturer order code 4TBA831051C0100, is a robust ARIA 54 glass-fibre reinforced polyester electrical enclosure designed to protect electrical distribution, control and automation equipment in industrial and commercial installations. Part of the ABB ARIA universal polyester enclosure series, this cabinet combines excellent environmental protection, electrical insulation and mechanical durability.
Manufactured from hot-pressed, glass-fibre reinforced polyester in RAL 7035 light grey, the enclosure provides reliable resistance to demanding operating conditions. Its IP66 ingress protection rating helps prevent dust and powerful water jets from reaching enclosed electrical equipment, while its IK08 impact resistance provides protection against mechanical impacts. The self-extinguishing, halogen-free construction supports safe and dependable electrical installations.
With external dimensions of 415 mm wide × 515 mm high × 230 mm deep, the ABB 831051 offers practical installation space for electrical components. Its solid single-door construction, swivelling lever handle and three-point locking mechanism provide secure access to installed equipment. The surface-mounted design makes it suitable for industrial control panels, electrical distribution assemblies and installations requiring a durable insulated enclosure.
Key Advantages
- Durable glass-fibre reinforced polyester enclosure designed for industrial electrical installations.
- IP66 protection against dust ingress and powerful water jets.
- IK08 mechanical impact resistance for demanding operating environments.
- 415 × 515 × 230 mm enclosure dimensions providing practical space for electrical equipment.
- Swivelling lever handle with three-point locking for secure door closure.
- Class II protective insulation supports electrical safety.
- Self-extinguishing and halogen-free polyester construction.
- Suitable for indoor and appropriately installed outdoor electrical applications.
Key Features
- ABB ARIA 54 universal polyester enclosure series.
- Model designation: AR054H33.
- ABB product reference: 831051.
- Manufacturer order code: 4TBA831051C0100.
- IP66 ingress protection rating.
- IK08 impact protection rating.
- 415 mm width, 515 mm height and 230 mm depth.
- Glass-fibre reinforced polyester housing with light grey RAL 7035 finish.
- Solid single door with swivelling lever handle.
- Three-point locking mechanism for secure closure.
- Rated insulation voltage of 1000 V.
- Class II electrical insulation.
- Surface-mounted installation.
- Integrated threaded fixing points for compatible mounting plates and internal mounting frames.
- Suitable for continuous operating temperatures up to 70 °C, with short-duration peak resistance up to 130 °C.
Reliable Protection for Electrical Distribution and Control Equipment
The ABB ARIA 54 enclosure is engineered to provide a protective housing for electrical components in installations where environmental resistance and electrical insulation are important. Its glass-fibre reinforced polyester construction offers a durable alternative to conventional metallic enclosures while providing excellent insulating properties and resistance to corrosion.
The IP66-rated cabinet is designed to protect installed electrical equipment from dust and powerful water jets when correctly assembled and installed. Its solid door, three-point locking system and impact-resistant construction help maintain enclosure integrity in industrial and commercial environments. Compatible internal mounting accessories allow the enclosure to accommodate electrical control and distribution equipment according to the installation requirements.
Typical Applications
- Industrial electrical distribution and control cabinets.
- Low-voltage electrical distribution assemblies.
- Automation and process control equipment enclosures.
- Electrical switchgear and protection equipment installations.
- Industrial machinery control systems.
- Commercial building electrical installations.
- Outdoor electrical equipment protection where appropriate installation practices are followed.
- Utility, infrastructure and industrial electrical installations.
