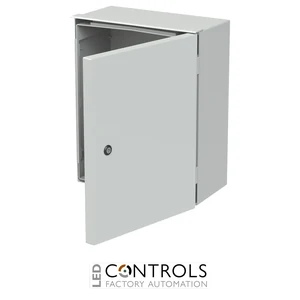

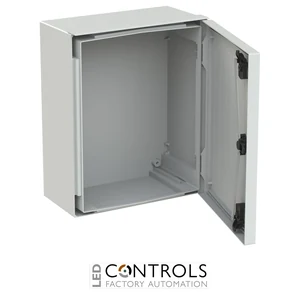

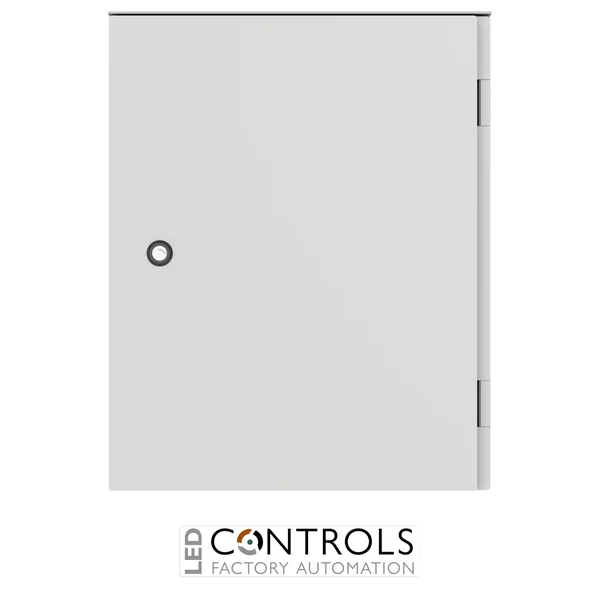

Why Choose the ABB 831052 ARIA 54 Polyester Enclosure?
The ABB 831052, manufacturer order code 4TBA831052C0100, is a durable ARIA 54 glass-fibre reinforced polyester electrical enclosure designed to protect electrical distribution, control and automation equipment in industrial and commercial installations. As part of the ABB ARIA universal polyester enclosure series, this cabinet provides excellent environmental protection, electrical insulation and mechanical durability for demanding electrical applications.
Manufactured from hot-pressed, glass-fibre reinforced polyester in RAL 7035 light grey, the enclosure offers reliable resistance to corrosion, moisture and challenging environmental conditions. Its IP66 ingress protection rating provides protection against dust and powerful water jets, while its IK08 mechanical impact resistance helps safeguard enclosed equipment against external impacts. The self-extinguishing, halogen-free construction supports safe and dependable electrical installations.
With external dimensions of 415 mm wide × 515 mm high × 230 mm deep, the ABB 831052 provides practical installation space for electrical components. The enclosure features a solid single door with a 3 mm double-bit centre lock and three-point locking mechanism, providing secure closure and controlled access to installed equipment. Its surface-mounted construction makes it suitable for electrical distribution assemblies, industrial control cabinets and automation installations.
Key Advantages
- Robust glass-fibre reinforced polyester enclosure designed for industrial electrical applications.
- IP66 ingress protection against dust and powerful water jets.
- IK08 impact resistance for enhanced mechanical protection.
- 415 × 515 × 230 mm external dimensions providing practical equipment installation space.
- 3 mm double-bit locking system with secure three-point door closure.
- Class II protective insulation for improved electrical safety.
- Corrosion-resistant, self-extinguishing and halogen-free polyester construction.
- Suitable for indoor and appropriately installed outdoor electrical applications.
Key Features
- ABB ARIA 54 universal polyester enclosure series.
- Model designation: AR054P33.
- ABB product reference: 831052.
- Manufacturer order code: 4TBA831052C0100.
- IP66 dust and water ingress protection.
- IK08 mechanical impact protection.
- 415 mm width, 515 mm height and 230 mm depth.
- 208 mm internal depth for accommodating electrical components.
- Glass-fibre reinforced polyester housing with RAL 7035 light grey finish.
- Solid single-door configuration without an inspection window.
- 3 mm double-bit centre lock with three-point locking mechanism.
- Rated insulation voltage of 1000 V.
- Class II electrical insulation.
- Surface-mounted installation for electrical cabinets and control systems.
- Integrated threaded fixing points for compatible mounting plates and mounting frames.
- Designed to withstand continuous temperatures up to 70 °C and short-duration peaks up to 130 °C.
Reliable Protection for Electrical Distribution and Control Equipment
The ABB ARIA 54 enclosure is engineered to provide a protective housing for electrical components where environmental resistance, electrical insulation and mechanical strength are essential. Its glass-fibre reinforced polyester construction provides a durable, corrosion-resistant alternative to conventional metallic cabinets, making it suitable for electrical distribution and industrial automation systems.
The IP66-rated enclosure protects installed electrical equipment against dust and powerful water jets when correctly assembled and installed. Its solid door and three-point locking mechanism operated by a 3 mm double-bit lock help maintain secure closure in demanding environments. Compatible mounting plates and internal frames allow electrical installers and panel builders to configure the cabinet for a wide range of low-voltage electrical applications.
Typical Applications
- Industrial electrical distribution cabinets.
- Low-voltage switchgear and protection equipment installations.
- Electrical control panels and automation systems.
- Industrial machinery control cabinets.
- Commercial building electrical distribution systems.
- Utility and infrastructure electrical installations.
- Outdoor electrical equipment protection where suitable installation practices are followed.
- Electrical panel building and industrial equipment integration.
