Why Choose the ABB 831065 ARIA 64 IP66 Polyester Electrical Enclosure?

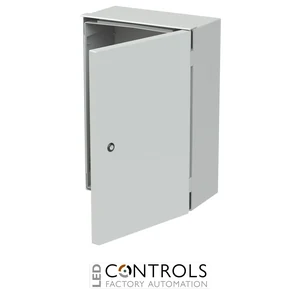

The ABB 831065 ARIA 64 is a robust, general-purpose electrical enclosure measuring 415 mm wide × 615 mm high × 230 mm deep, designed to house electrical distribution, control and switching equipment. Manufactured from hot-pressed, glass-fibre reinforced polyester, this enclosure combines mechanical strength, corrosion resistance and protective insulation for demanding electrical installation environments. Part of the ABB ARIA Enclosures range, it provides a practical housing solution for professional electrical panel builders and contractors.
Featuring an IP66 ingress protection rating and IK08 mechanical impact resistance, the ABB 831065 is designed to protect installed equipment against dust, powerful water jets and mechanical impacts when correctly assembled. Its RAL 7035 light grey construction is self-extinguishing and halogen-free, while the enclosure's 1,000 V rated insulation voltage supports appropriately designed low-voltage electrical assemblies. The non-metallic cabinet also provides protective insulation, making it suitable for applications where an insulated enclosure construction is required.

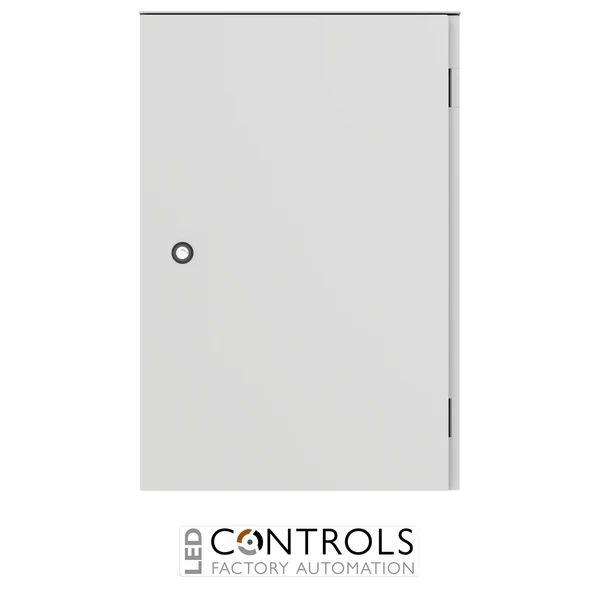

Identified by ABB extended product type AR064P33 and order code 4TBA831065C0100, this ARIA 64 enclosure incorporates a solid door with a 3 mm double-bit, three-point locking mechanism. The cabinet includes threaded mounting provisions for compatible mounting plates and frames, allowing the interior to be configured for different electrical applications. Its substantial 230 mm depth provides useful installation space for suitable equipment, wiring and accessories.
Key Advantages
- IP66 ingress protection provides dust-tight construction and resistance to powerful water jets when correctly installed.
- IK08 mechanical impact resistance helps protect electrical equipment against external mechanical damage.
- Glass-fibre reinforced polyester construction offers strength and corrosion resistance without a metallic enclosure body.
- Protective insulation supports safe electrical equipment housing within appropriately designed assemblies.
- 415 × 615 × 230 mm external dimensions provide space for electrical distribution and control components.
- Three-point locking system secures the door at multiple positions for consistent cabinet closure.
- 3 mm double-bit lock provides a defined access arrangement for electrical maintenance personnel.
- RAL 7035 light grey finish offers a professional appearance for commercial and industrial installations.
- Self-extinguishing, halogen-free construction provides useful material characteristics for electrical applications.
- 1,000 V rated insulation voltage supports suitable low-voltage electrical assemblies.
- Continuous temperature resistance up to 70 °C, with peak material temperature resistance up to 130 °C.
- Surface-mounted installation supports mounting on suitable walls and supporting structures.
- Threaded internal mounting provisions accommodate compatible ABB ARIA mounting plates and frames.
- Solid, non-transparent door provides a closed front surface for the enclosure.
- Part of the established ABB ARIA universal polyester enclosure system.
Key Features
- ABB ARIA 64 universal polyester electrical enclosure.
- Product reference: 831065.
- ABB extended product type: AR064P33.
- ABB order code: 4TBA831065C0100.
- Enclosure construction: Hot-pressed, glass-fibre reinforced polyester.
- Enclosure colour: RAL 7035 light grey.
- Ingress protection: IP66.
- Impact resistance: IK08.
- Rated insulation voltage: 1,000 V.
- External width: 415 mm.
- External height: 615 mm.
- External depth: 230 mm.
- Door arrangement: Single solid door.
- Locking mechanism: Three-point closure.
- Lock type: 3 mm double-bit.
- Mounting type: Surface mounting.
- Protective construction: Insulated, Class II enclosure.
- Material properties: Self-extinguishing and halogen-free.
- Internal mounting provisions: Threaded fixings for compatible mounting plates and frames.
- Product net weight: Approximately 7.3 kg.
- Accessory compatibility: Suitable ABB ARIA 64 mounting and enclosure accessories.
IP66 Protection and Three-Point Locking for Electrical Distribution Equipment
The ABB 831065 ARIA 64 enclosure provides a protective housing for electrical equipment installed in locations where dust, moisture and mechanical impacts must be considered. Its IP66 rating indicates dust-tight protection and resistance to powerful water jets under the relevant test conditions. The IK08 rating provides additional mechanical impact resistance. These characteristics make the enclosure suitable for a range of industrial, commercial and building services applications, provided the complete installation is designed for its environmental conditions.
The cabinet is manufactured from hot-pressed, glass-fibre reinforced polyester, a non-metallic material that combines rigidity with corrosion resistance and protective insulation. ABB specifies a 1,000 V rated insulation voltage and Class II protective insulation for the enclosure. Its material is also described as self-extinguishing and halogen-free, with continuous temperature resistance up to 70 °C and peak resistance up to 130 °C. These figures describe enclosure material characteristics rather than the permissible operating temperature of every component installed inside it.

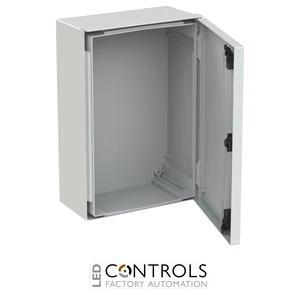

The three-point locking system helps maintain consistent door closure across the enclosure opening, while the 3 mm double-bit lock provides a practical access arrangement for authorised personnel. Internally, threaded mounting provisions allow compatible ABB ARIA mounting plates and frames to be fitted for different equipment layouts. Mounting plates, electrical components and other accessories must be selected separately where required. Cable entries, glands, sealing arrangements and modifications must also be specified carefully to preserve the required protection rating of the completed assembly.
Typical Applications
- Electrical distribution equipment requiring an IP66 enclosure.
- Industrial electrical control panel assemblies.
- Commercial electrical distribution and switching equipment.
- Building services control and electrical equipment protection.
- Automation and process control equipment enclosures.
- Surface-mounted electrical installations in dusty or damp environments.
- Equipment housing where corrosion-resistant polyester construction is desirable.
- Electrical cabinet installations requiring a secure three-point locking door.
- Outdoor electrical equipment installations where the completed assembly is suitable for the site conditions.
- Electrical panel refurbishment and enclosure replacement projects.
- Custom distribution assemblies using compatible ABB ARIA mounting accessories.
- Professional electrical installation, maintenance and panel-building applications.
