Why Choose the ABB 831112 ARIA 108 IP66 GRP Enclosure?

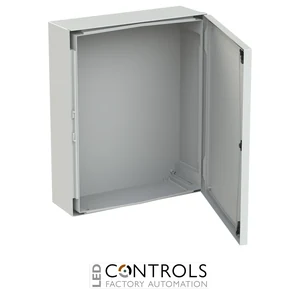

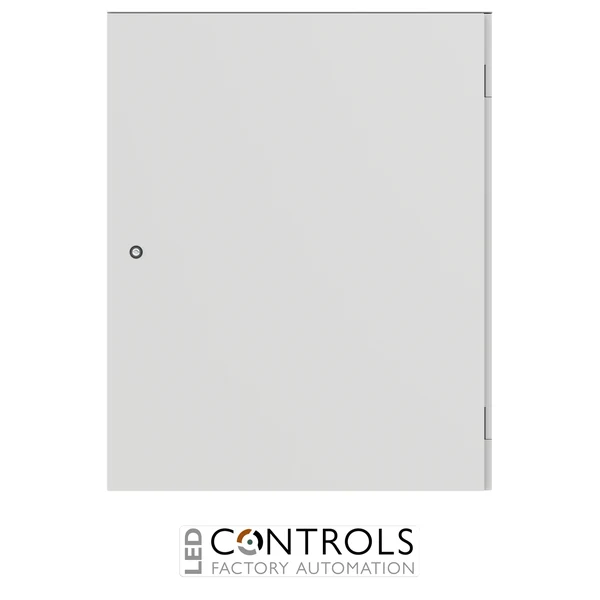

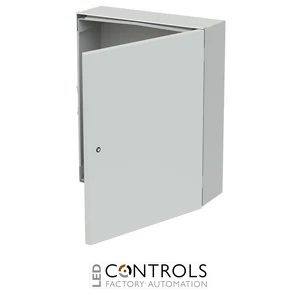

The ABB 831112, manufacturer order code 4TBA831112C0100 and extended product type AR108P33, is a heavy-duty ARIA 108 glass-fibre reinforced polyester (GRP) electrical enclosure measuring 835 mm wide × 1035 mm high × 300 mm deep. Designed for low-voltage electrical distribution, control and industrial equipment installations, this enclosure combines robust construction with a high level of environmental protection.
Featuring an IP66 ingress protection rating and IK08 impact resistance, the ABB 831112 provides a protective housing for compatible electrical equipment in demanding environments. Its light grey RAL 7035 glass-fibre reinforced polyester construction offers electrical insulation, corrosion resistance and durability, while the self-extinguishing, halogen-free material supports demanding industrial enclosure applications.
The enclosure incorporates a 3 mm double-bit locking system with three-point door locking, helping maintain secure and consistent door closure. With a rated insulation voltage of 1000 V and a design suitable for surface mounting, the ABB ARIA 108 provides a versatile enclosure platform for electrical panel builders, contractors and industrial maintenance engineers.
Key Advantages
- IP66 ingress protection against dust ingress and powerful water jets when correctly installed.
- IK08 impact resistance for enhanced mechanical durability.
- Glass-fibre reinforced polyester construction provides strength, corrosion resistance and electrical insulation.
- Generous 835 × 1035 × 300 mm enclosure dimensions for accommodating electrical equipment.
- Three-point door locking helps provide secure closure across the enclosure door.
- 3 mm double-bit locking mechanism for controlled enclosure access.
- RAL 7035 light grey finish for a professional industrial appearance.
- Self-extinguishing and halogen-free material for suitable electrical installation environments.
- 1000 V rated insulation voltage for compatible low-voltage applications.
- Surface-mounted design for installation on suitable supporting structures.
- Part of the established ABB ARIA universal polyester enclosure range.
Key Features
- ABB 831112 / AR108P33 ARIA 108 enclosure.
- 835 mm width × 1035 mm height × 300 mm depth.
- IP66 dust-tight and water-jet-resistant enclosure protection.
- IK08 mechanical impact protection.
- Glass-fibre reinforced polyester (GRP) enclosure body.
- Light grey RAL 7035 colour.
- Single solid door with three-point locking.
- 3 mm double-bit lock operation.
- Class II protective insulation construction.
- Rated insulation voltage Ui: 1000 V.
- Continuous temperature resistance up to 70 °C, with peak temperatures up to 130 °C as specified for the enclosure material.
- Self-extinguishing and halogen-free construction.
- Designed for surface-mounted installation.
- Supports separately selected compatible mounting plates and mounting frames.
- ABB manufacturer order code: 4TBA831112C0100.
Technical Specifications
- Manufacturer: ABB
- Product reference: 831112
- Extended product type: AR108P33
- ABB order code: 4TBA831112C0100
- Product series: ARIA 108
- Product family: Aria Enclosures
- Product type: Empty electrical enclosure / cabinet
- Width: 835 mm
- Height: 1035 mm
- Depth: 300 mm
- Dimensions (W × H × D): 835 × 1035 × 300 mm
- Enclosure material: Glass-fibre reinforced polyester (GRP)
- Colour: Light grey
- RAL colour reference: RAL 7035
- Ingress protection: IP66
- Impact resistance: IK08
- Protection class: Class II
- Rated insulation voltage (Ui): 1000 V
- Door configuration: Single solid door
- Locking arrangement: Three-point locking
- Lock type: 3 mm double-bit
- Mounting method: Surface mounted
- Continuous temperature resistance: Up to 70 °C
- Peak material temperature resistance: Up to 130 °C
- Material characteristics: Self-extinguishing and halogen-free
- Mounting plate: Available separately
- Approximate net weight: 23 kg
- EAN: 5411815234354
- Enclosure standard: EN/IEC 62208
- ABB product group: Aria Enclosures
Robust GRP Protection for Industrial Electrical Equipment
The ABB ARIA 108 enclosure is manufactured from hot-pressed, glass-fibre reinforced polyester, providing a robust insulating housing for electrical equipment. Its IP66 rating makes it suitable for installations requiring protection against dust and powerful water jets, while the IK08 classification indicates resistance to mechanical impacts under the applicable test conditions. The enclosure's non-metallic construction also offers resistance to corrosion, making it a practical choice for many industrial and building services environments.
The three-point locking door helps maintain a consistent closure along the enclosure opening, while the 3 mm double-bit lock provides controlled access for authorised personnel. Compatible mounting plates and mounting frames can be selected to suit the electrical equipment being installed. The enclosure's 1000 V rated insulation voltage and Class II construction support appropriate low-voltage assembly designs, subject to the installation requirements and verification of the complete electrical system.
Typical Applications
- Industrial electrical control panels and automation equipment housings.
- Low-voltage electrical distribution assemblies.
- Commercial building electrical installations.
- Industrial machinery control equipment.
- Outdoor electrical installations where the enclosure's IP66 protection and environmental suitability meet the installation requirements.
- Water treatment and pumping installations.
- Building services electrical control cabinets.
- Electrical equipment protection in dusty or wet environments.
- Industrial plant refurbishment and equipment upgrades.
- Custom electrical panel-building projects requiring a large GRP enclosure.
