Why Choose the ABB 856054 APO 61 Electrical Enclosure?

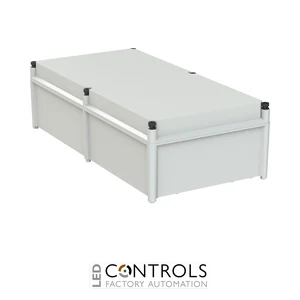

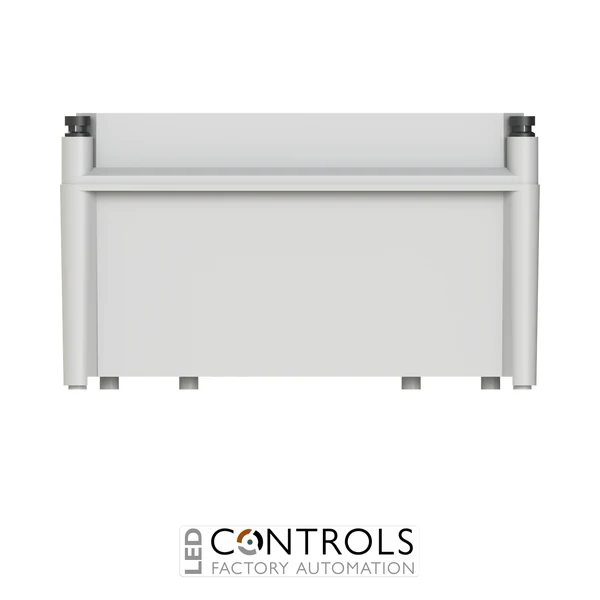

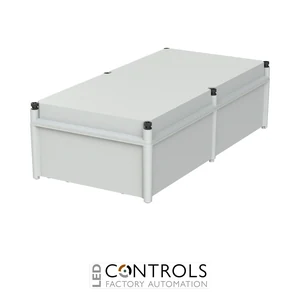

The ABB 856054, manufacturer order code 4TBO856054C0100, is an ABB APO 61 modular electrical enclosure designed to house electrical distribution, switching and control equipment. Measuring 302 mm wide × 602 mm high × 175 mm deep, this enclosure provides a practical housing solution for professional electrical installations.
Identified by ABB as the AP61P, the enclosure features a solid grey polyester cover in RAL 7035. Its closed-cover construction is suitable for applications where electrical components must be housed behind a continuous protective covering rather than exposed through a modular equipment opening.
The ABB 856054 is part of the APO modular polyester enclosure range, offering IP67 ingress protection and IK10 impact resistance when installed in accordance with the manufacturer's requirements. Its surface-mounted design makes it suitable for demanding commercial and industrial electrical applications where enclosure durability and protection are important.
Key Advantages
- IP67 ingress protection provides protection against dust ingress and temporary immersion under specified test conditions.
- IK10 impact resistance supports installation in demanding environments.
- 302 × 602 × 175 mm dimensions provide an extended-height electrical equipment housing.
- Solid grey polyester cover provides a continuous closed front.
- RAL 7035 light grey finish offers a neutral appearance for electrical installations.
- Surface-mounted construction supports practical installation on suitable mounting surfaces.
- Class II insulation supports electrical installations requiring a double-insulated enclosure system.
- Part of the ABB APO modular enclosure family, allowing integration with compatible mounting accessories.
Key Features
- ABB APO 61 enclosure for electrical distribution and control applications.
- Manufacturer type: AP61P.
- Product reference: 856054.
- ABB order code: 4TBO856054C0100.
- Enclosure dimensions: 302 × 602 × 175 mm (W × H × D).
- Housing material: Polyester-based insulating material.
- Cover: Solid grey, closed configuration.
- Colour: Light grey, RAL 7035.
- Ingress protection: IP67.
- Impact protection: IK10.
- Mounting method: Surface mounting.
- Electrical protection class: Class II.
- Designed for compatible ABB APO enclosure accessories and mounting arrangements.
Durable Electrical Equipment Protection with ABB APO 61
The ABB 856054 APO 61 enclosure provides a protective housing for compatible electrical components. Its closed polyester cover helps prevent direct access to internal equipment, while the enclosure's IP67 and IK10 ratings make it suitable for applications requiring resistance to dust, moisture and mechanical impact within the specified operating conditions.
The 302 × 602 × 175 mm enclosure format provides an extended-height arrangement for suitable electrical distribution and control assemblies. Compatible mounting plates, cable-entry components and other accessories should be selected according to the intended equipment layout. Any modifications or cable entries must preserve the required protection characteristics of the completed installation.
Typical Applications
- Industrial electrical distribution equipment housings.
- Commercial building electrical installations.
- Electrical control and automation equipment enclosures.
- Low-voltage switching and protection assemblies.
- Electrical installations exposed to dust or moisture.
- Surface-mounted electrical equipment housings.
- Industrial plant and machinery control installations.
- Electrical panel-building and enclosure assembly projects.
