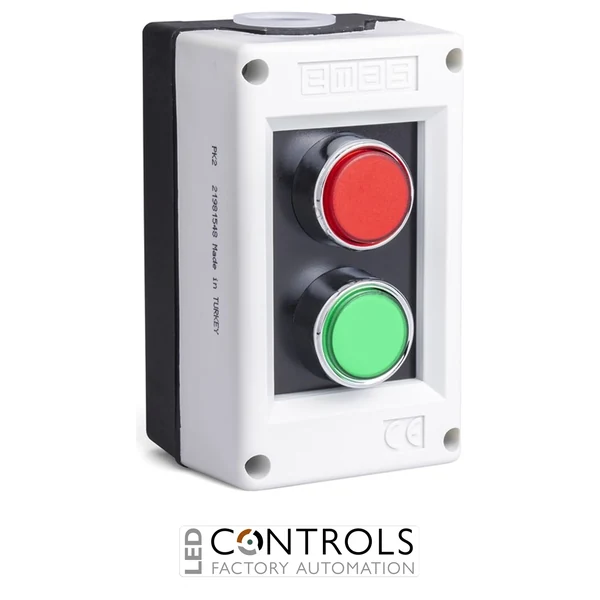

EMAS PK2 is a grey-black two-way plastic control box with red and green flush KB Series push buttons and two KB14K contact blocks, rated at 4 A at 250 V AC for AC-15 industrial control applications.
£29.20
The EMAS PK2 is a compact two-way plastic control box designed for industrial machinery, automation and local operator control applications. Part of the EMAS PK Series, it is supplied as a complete two-position control station with red and green flush push buttons, providing a practical solution for common stop/start and other dual-command functions.
The PK2 incorporates EMAS KB Series operators in a durable grey-black plastic enclosure. Its configuration comprises a DK red push button, DY green push button and two KB14K contact blocks. The contacts are rated at 4 A at 250 V AC for AC-15 control applications, making the unit suitable for switching control circuits in industrial equipment.
With enclosure dimensions of approximately 70 × 115 × 60 mm (W × L × H), the PK2 provides two operator positions while remaining compact enough for installation directly on machinery or close to the controlled equipment. Its industrial contact system provides a minimum mechanical endurance of 1,000,000 operations and a minimum electrical endurance of 100,000 operations.
The EMAS PK2 combines two commonly required control functions in one compact operator station. Its red and green flush push buttons provide immediate visual distinction between the two commands, making the unit particularly suitable for applications such as machine stop/start control where separate operator functions need to be positioned together.
With an AC-15 rating of 4 A at 250 V AC, a wide -15 to +80 °C operating temperature range and a minimum mechanical endurance of one million operations, the PK2 is designed for repetitive industrial control duties. Its compact plastic enclosure allows the control station to be mounted close to machinery, conveyors, motors or other equipment requiring convenient local operation.
| Manufacturer | EMAS |
|---|---|
| Series | PK Series Plastic |
| Model | PK2 |
| Product type | Two-way plastic control box |
| Number of operator positions | 2 |
| Configuration | DK + DY + 2 × KB14K |
| Push-button colours | Red and green |
| Push-button type | Flush |
| Enclosure colour | Grey-black |
| Enclosure material | Plastic |
| Width | 70 mm |
| Length | 115 mm |
| Height | 60 mm |
| Operational current (Ie) | 4 A at 250 V AC |
| Utilisation category | AC-15 |
| Rated insulation voltage (Ui) | 300 V |
| Rated impulse withstand voltage (Uimp) | 2.5 kV |
| Dielectric strength, body to contact | 2500 V AC |
| Dielectric strength, contact to contact | 1500 V AC |
| Insulation resistance | 10 MΩ at 500 V DC |
| Minimum mechanical life | 1,000,000 operations |
| Minimum electrical life | 100,000 operations |
| Mechanical operating frequency | Up to 3000 operations/hour |
| Electrical operating frequency | Up to 1200 operations/hour |
| Operating temperature | -15 to +80 °C |
| Pollution degree | 3 |
| Ingress protection | IP50 |
| Contact material | AgNi |
| Conductor connection | 1.5 to 2.5 mm² |
| Tightening torque | 1.5 Nm |
| Short-circuit breaking capacity (Ics) | 1 kA |
| Standards | TS EN 60947-5-1, UL 508, VDE 0660 |
| Certifications | CE, EAC, SEPRO |
The PK2 is a two-way plastic control box from the EMAS PK Series. It is supplied with red and green flush push buttons and two KB14K contact blocks for industrial machinery and automation control applications.
The PK2 contains a red DK flush push button and a green DY flush push button, together with two KB14K contact blocks.
The PK2 has an operational current rating of 4 A at 250 V AC in the AC-15 utilisation category. Its rated insulation voltage is 300 V and its rated impulse withstand voltage is 2.5 kV.
The manufacturer specifies an IP50 protection rating for the PK2 control box configuration.
The PK2 is rated for a minimum of 1,000,000 mechanical operations and 100,000 electrical operations, making it suitable for repetitive industrial control duties.
EMAS PK Series plastic control boxes provide compact and practical local control solutions for industrial machinery, combining clearly identified operator functions, durable contact systems and straightforward installation for automation and production applications.
