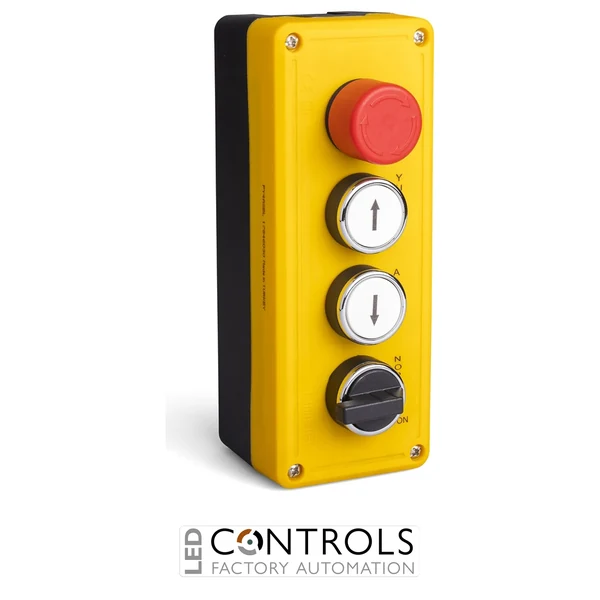

EMAS PY4ASB2 is a yellow and black four-position lift control station with two arrow-marked directional push buttons, one 30 mm emergency stop and one eight-contact selector for lift, hoist and industrial machinery applications.
£48.67
The EMAS PY4ASB2 is a robust four-position lift push button control station designed for lift, hoist and industrial machinery control applications. As part of the EMAS PY Series plastic control box range, this yellow and black station combines two arrow-marked directional push buttons, an emergency stop and an eight-contact selector within a single purpose-built operator enclosure.
The PY4ASB2 is factory configured with one B200E30 emergency stop, two B102DBOY directional push buttons and one B102S20 selector. The directional controls provide clear up and down commands, while the emergency stop and selector functions give operators the essential controls required for lift servicing, maintenance and local machinery operation.
Designed for industrial environments, the PY4ASB2 uses a yellow and black plastic enclosure with four operator positions and supports IP65 protection, subject to the protection rating of the installed operators. The control equipment has a 4 A maximum current rating, while the enclosure is designed around industrial Ø22 mm control devices for dependable lift and machinery operation.
Lift push button stations such as the EMAS PY4ASB2 provide operators and maintenance engineers with a convenient local interface for controlling lift and hoisting equipment. The two arrow-marked push buttons provide intuitive directional commands, while the emergency stop gives operators a prominent means of stopping the controlled equipment when required.
The PY4ASB2 also incorporates an eight-contact selector, adding flexibility for operating or control-mode selection. Combining these functions within one compact enclosure simplifies installation and provides a purpose-designed interface for lift servicing, maintenance, material handling and industrial machinery applications.
| Manufacturer | EMAS |
|---|---|
| Series | PY Series Plastic |
| Model | PY4ASB2 |
| Product type | Lift push button control station |
| Number of control positions | 4 |
| Enclosure colour | Yellow / black |
| Enclosure material | Plastic |
| Emergency stop | 1 × B200E30 |
| Emergency stop size | 30 mm |
| Directional push buttons | 2 × B102DBOY |
| Directional marking | Arrow symbols |
| Selector | 1 × B102S20 |
| Selector contacts | 8 |
| Maximum current | 4 A |
| Control device mounting size | Ø22 mm |
| Protection rating | IP65 enclosure; complete product subject to the minimum protection rating of the fitted operators |
| Configuration | Pre-assembled control station |
The PY4ASB2 is a four-position lift and industrial machinery control station designed to provide directional movement, emergency stop and selector functions from one operator enclosure.
The station is factory configured with one B200E30 emergency stop, two B102DBOY arrow-marked directional push buttons and one B102S20 selector.
Yes. The PY4ASB2 incorporates a dedicated 30 mm B200E30 emergency stop operator alongside its two directional push buttons and selector.
The PY4ASB2 is configured with an eight-contact selector, providing additional switching capability for lift and machinery control circuits.
The PY Series control box provides IP65 protection; however, the final protection rating of the complete station is determined by the lowest protection rating of the fitted operator devices.
EMAS PY Series lift control stations provide lift engineers, maintenance professionals and machine builders with robust operator interfaces combining directional movement, emergency stopping and selection functions in practical industrial enclosures.
