Why Choose the Lovato SM1Z1705P Flush-Mount Enclosure?

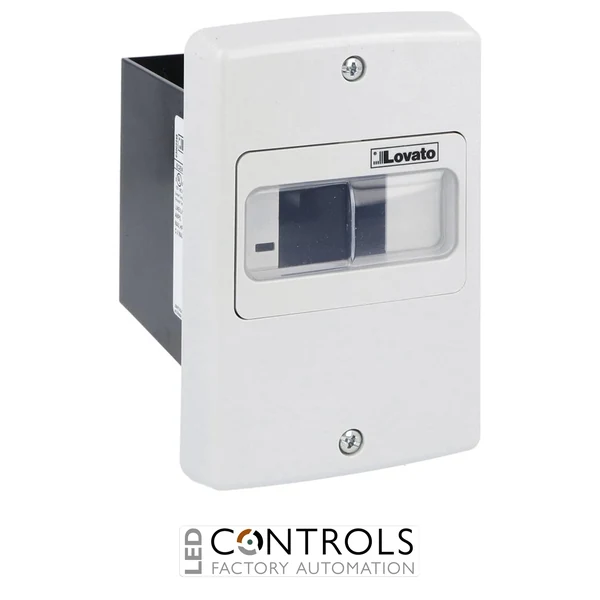

The Lovato SM1Z1705P is a dedicated flush-mount enclosure for Lovato SM1P motor protection circuit breakers, designed to provide a neat and protected installation through the front of an industrial control panel or machine enclosure. Its compact 87 mm width makes it suitable for panel designs where installation space is limited.
Designed specifically around the Lovato SM1P platform, the SM1Z1705P provides IP65 protection to IEC requirements and UL Type 4X protection at the front. This helps protect the installed motor protection circuit breaker against dust and water while retaining convenient front access to its operating controls.
The enclosure supports an SM1P circuit breaker together with a front-mounted auxiliary contact block and either a shunt release or undervoltage release. With an operating temperature range of -25 to +60 °C, a mechanical life of 100,000 cycles and an included earth/ground terminal, the SM1Z1705P provides a robust solution for industrial motor-control installations.
Key Advantages
- Purpose-designed for Lovato SM1P motor protection circuit breakers.
- Flush-mount design provides a neat, integrated panel installation.
- IP65 protection helps protect against dust and water ingress.
- UL Type 4X front protection supports demanding industrial applications.
- Compact 87 mm width helps minimise required panel space.
- Supports selected SM1P auxiliary and release accessories inside the enclosure.
- Includes an earth/ground terminal.
- Designed for reliable operation from -25 to +60 °C.
Key Features
- Lovato SM1Z series flush-mount enclosure.
- Designed for SM1P series motor protection circuit breakers.
- IP65 IEC degree of protection.
- UL Type 4X protection at the front.
- 87 mm enclosure width.
- Approximately 133 × 87 × 86 mm overall dimensions.
- Panel cut-out approximately 115.5 × 70.5 mm.
- Supports one front-mount auxiliary contact block.
- Supports either one shunt release or undervoltage release with the SM1P breaker.
- 100,000-cycle mechanical life.
- Operating temperature range from -25 to +60 °C.
- Storage temperature range from -50 to +80 °C.
Protected Flush Mounting for SM1P Motor Protection
Motor protection circuit breakers need to remain accessible for operation and resetting while also being protected from the surrounding industrial environment. The Lovato SM1Z1705P allows an SM1P breaker to be installed through the panel face, providing convenient front access while maintaining an IP65-rated installation.
Its dedicated SM1P design simplifies integration into motor-control panels, machinery and OEM assemblies. The enclosure can accommodate the breaker with selected front-mounted and release accessories, allowing additional control and signalling functionality to be incorporated while retaining a compact panel footprint.
Typical Applications
- SM1P motor protection circuit breaker installations.
- Industrial motor-control panels.
- Machine control enclosures.
- Pump and fan control systems.
- Conveyor and materials-handling equipment.
- Manufacturing and production machinery.
- OEM electrical control assemblies.
- Panel installations requiring IP65 front protection.
