Why Choose the Lovato SM1Z1710R Surface-Mount Enclosure?

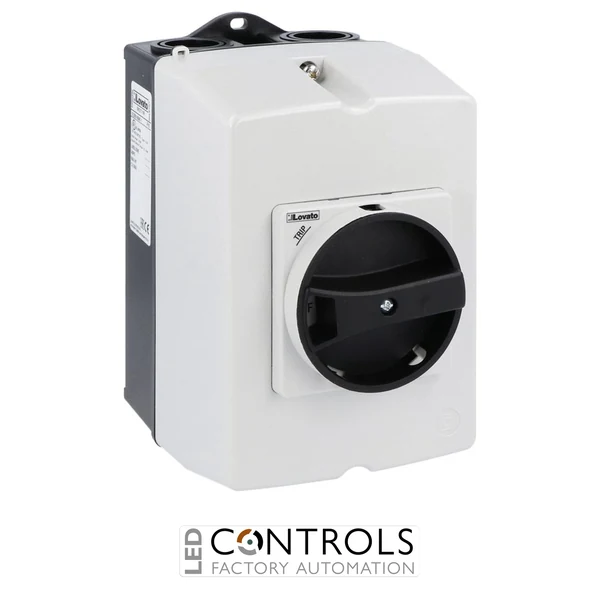

The Lovato SM1Z1710R is a robust surface-mount enclosure for Lovato SM1R motor protection circuit breakers, supplied with a black rotary actuator handle. Designed specifically for the SM1R range, it provides a convenient way to install and operate a motor protection circuit breaker independently of a larger electrical control enclosure.
With IP65 protection to IEC requirements and a UL Type 4X rating, the SM1Z1710R is designed for demanding industrial environments where protection against dust and water is required. Its strong plastic construction is UV-resistant and provides IK07 impact protection, supporting reliable use on machinery and industrial equipment.
The enclosure measures approximately 100 × 154 × 138 mm and incorporates a black rotary operating handle that can be secured in the OFF position using up to three padlocks. Breakable membranes for M20/M25 cable glands simplify cable entry, while an operating temperature range of -25 to +60 °C supports use across a wide range of industrial environments.
Key Advantages
- Purpose-designed for Lovato SM1R motor protection circuit breakers.
- Surface-mount design enables convenient standalone installation.
- Supplied with a black rotary actuator handle.
- IP65 protection against dust and water ingress.
- UL Type 4X rating for demanding industrial applications.
- IK07 impact resistance for enhanced mechanical protection.
- Strong UV-resistant plastic construction.
- Rotary handle can be secured with up to three padlocks for safer isolation procedures.
Key Features
- Lovato SM1Z surface-mount enclosure.
- Compatible with SM1R series motor protection circuit breakers.
- Integrated black rotary actuator.
- 100 mm enclosure width.
- IP65 IEC degree of protection.
- UL Type 4X degree of protection.
- IK07 impact protection.
- UV-resistant plastic enclosure construction.
- Breakable membranes for M20/M25 cable glands.
- Lockable using up to three 4–8 mm diameter padlocks.
- 100,000-cycle mechanical life.
- Operating temperature range from -25 to +60 °C.
Protected Surface Mounting for SM1R Motor Protection
Motor protection circuit breakers provide essential switching and protection for industrial motors, but some installations require the breaker to be mounted independently of the main control cabinet. The Lovato SM1Z1710R provides a dedicated surface-mount housing for an SM1R circuit breaker while retaining convenient external operation through its black rotary handle.
The enclosure's IP65, UL Type 4X and IK07 ratings make it suitable for demanding machinery environments. Its lockable rotary actuator also supports safer maintenance and isolation procedures, while the M20/M25 cable-entry provisions help simplify integration into industrial motor-control wiring systems.
Typical Applications
- Lovato SM1R motor protection circuit breaker installations.
- Industrial motor isolation and protection.
- Pump and fan control systems.
- Conveyor and materials-handling machinery.
- Machine tools and production equipment.
- Industrial automation systems.
- OEM machinery and electrical assemblies.
- Standalone motor-control installations requiring IP65 protection.
