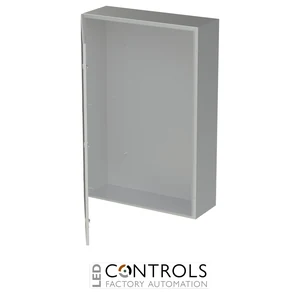

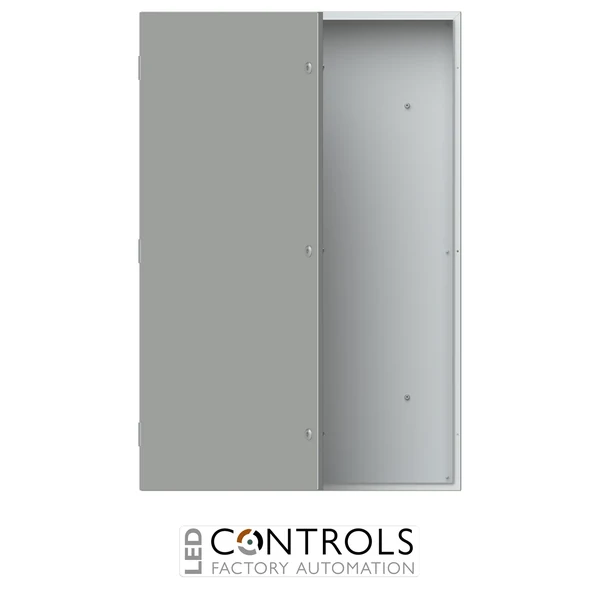

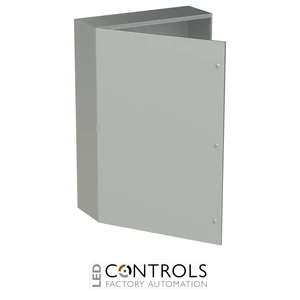

Why Choose the ABB SRN12830X Stainless Steel Enclosure?
The ABB SRN12830X is a robust SRX stainless steel enclosure with blind door and internal mounting plate, designed for industrial automation, command, control and electrical distribution applications. Measuring 1200 mm high × 800 mm wide × 300 mm deep, this large-format enclosure provides substantial internal space for control equipment while maintaining a compact wall- or floor-mounted configuration.
Manufactured from AISI 304 stainless steel, the SRN12830X is designed for demanding indoor and outdoor environments where corrosion resistance, hygiene and mechanical strength are important. The enclosure provides IP66 ingress protection, IK10 impact resistance and a NEMA 4X enclosure rating, making it suitable for applications exposed to dust, water jets and challenging industrial conditions.
The SRN12830X is supplied with a single blind door and galvanised sheet-steel internal mounting plate, providing a ready platform for fitting automation and electrical equipment. The enclosure has no cable-entry flange plates, allowing the installation to be configured to suit the required cable-routing arrangement.
Key Advantages
- Heavy-duty AISI 304 stainless steel enclosure for demanding industrial environments.
- Large 1200 mm high × 800 mm wide × 300 mm deep enclosure format.
- IP66 protection against dust and powerful water jets.
- NEMA 4X enclosure rating for demanding indoor and outdoor installations.
- IK10 mechanical impact resistance with the blind-door configuration.
- Supplied with a galvanised internal mounting plate for equipment installation.
- Suitable for both wall and floor installation with the appropriate ABB mounting accessories.
Key Features
- ABB SRN12830X SRX stainless steel enclosure.
- AISI 304 stainless steel enclosure construction.
- Single blind door configuration.
- 1200 mm height × 800 mm width × 300 mm depth.
- IP66 ingress protection.
- NEMA 4X enclosure classification.
- IK10 impact resistance.
- Galvanised sheet-steel mounting plate included.
- Suitable for indoor and outdoor industrial applications.
- Surface-mounting enclosure suitable for wall or floor installation with appropriate accessories.
High-Protection Stainless Steel Enclosure for Industrial Control
ABB SRX enclosures are designed for small and medium-sized electrical switchboards used in automation, command and control applications. The AISI 304 stainless steel construction of the SRN12830X provides excellent resistance to corrosion and oxidation, making the enclosure particularly useful where painted mild-steel cabinets may be unsuitable.
With its combination of IP66, NEMA 4X and IK10 protection, the SRN12830X is well suited to demanding industrial environments. The included mounting plate provides a substantial internal surface for control components, drives, terminals and other electrical equipment, while the blind stainless steel door creates a robust external barrier for the completed assembly.
Typical Applications
- Industrial automation and machine-control systems.
- Food and beverage processing installations.
- Pharmaceutical and hygienic industrial environments.
- Chemical and process-industry control systems.
- Outdoor electrical and automation installations.
- Industrial command and control panels.
- Small and medium-sized electrical distribution assemblies.
