Why Choose the ABB SRN3215X Stainless Steel Enclosure?

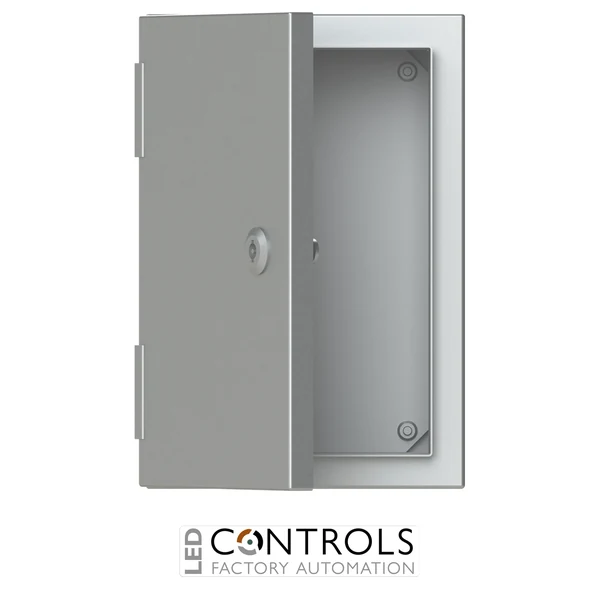

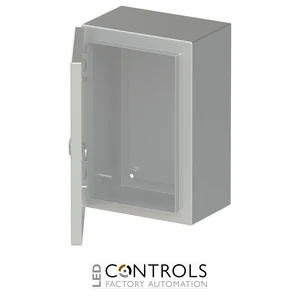

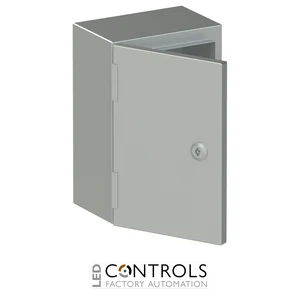

The ABB SRN3215X is a compact SRX stainless steel enclosure with blind door, designed for industrial automation, command and control applications. Manufactured from AISI 304 stainless steel, it provides a durable enclosure solution for protecting electrical and electronic equipment in demanding indoor and outdoor environments.
The SRN3215X measures 300 mm high × 200 mm wide × 150 mm deep and is supplied with a galvanised sheet-steel internal mounting plate. Its blind-door construction keeps installed equipment concealed while providing straightforward access for installation and maintenance, with the door capable of opening through approximately 120°.
With an IP66 degree of protection and NEMA 4X classification for the SRX range, the enclosure is engineered for applications requiring strong resistance to dust and water ingress. The blind-door version also achieves IK10 impact resistance, while the enclosure is supplied without cable-entry flanges so cable entries can be configured to suit the installation.
Key Advantages
- Genuine ABB SRX stainless steel enclosure for automation and control applications.
- Compact 300 mm × 200 mm × 150 mm (H × W × D) dimensions.
- Manufactured from corrosion-resistant AISI 304 stainless steel.
- IP66 protection against dust and powerful water jets.
- NEMA 4X enclosure classification for the SRX range.
- Supplied with a galvanised sheet-steel internal mounting plate.
Key Features
- ABB SRX series enclosure.
- SRN3215X manufacturer order code.
- Blind / opaque door configuration.
- 300 mm height × 200 mm width × 150 mm depth.
- AISI 304 stainless steel enclosure construction.
- IP66 degree of protection.
- NEMA 4X classification.
- IK10 impact resistance for the blind-door version.
- Approximately 120° door opening.
- Internal galvanised mounting plate included.
- Supplied without cable-entry flanges.
- Suitable for wall-mounted industrial electrical installations.
IP66 Stainless Steel Protection for Automation Equipment
Stainless steel enclosures are particularly useful where electrical equipment requires robust environmental protection and corrosion resistance. The AISI 304 stainless steel construction of the SRN3215X makes it suitable for a broad range of industrial installations, while its blind door protects and conceals the components installed inside.
The combination of IP66 ingress protection, NEMA 4X classification and IK10 impact resistance makes the ABB SRN3215X a robust enclosure for automation and control equipment. Its included galvanised mounting plate provides a practical internal surface for installing electrical components, while the absence of predetermined cable-entry flanges gives panel builders flexibility when planning cable routing.
Typical Applications
- Industrial automation and control systems.
- Machine control panels.
- Electrical and electronic equipment protection.
- Industrial instrumentation installations.
- OEM machinery and equipment.
- Indoor and outdoor industrial electrical installations.
