Why Choose the ABB SRN7520K SR2 Electrical Enclosure?

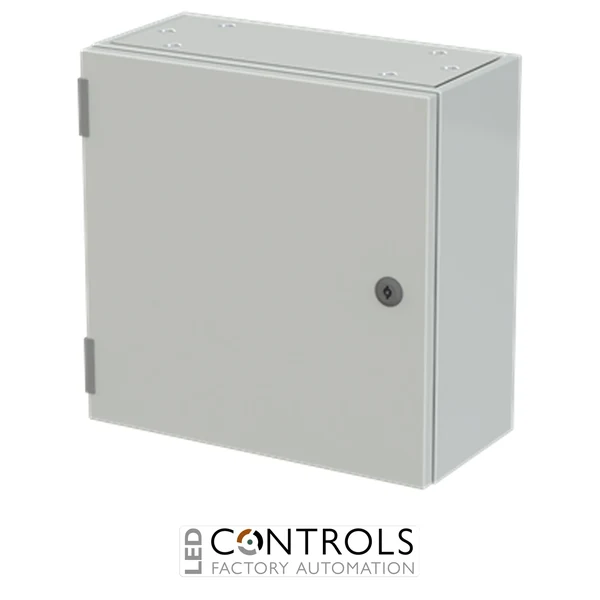

The ABB SRN7520K is a robust SR2 monobloc sheet steel electrical enclosure designed to house and protect electrical, control and automation equipment in industrial applications. Supplied with a single blind door and internal back plate, it provides a practical ready-to-equip solution for switchgear, control panels and machine automation systems.
Part of the ABB SR2 enclosure series, the SRN7520K combines durable steel construction with an IP65 ingress protection rating and IK10 impact resistance. The enclosure is powder coated in RAL 7035 light grey, providing a durable professional finish suitable for industrial panel building and machinery applications.
The correct manufacturer dimensions for the SRN7520K are 700 × 500 × 200 mm (H × W × D). With an internal depth of approximately 183.5 mm, an included mounting plate and two flange openings, the enclosure provides useful installation space and flexible cable-entry arrangements for electrical assemblies.
Key Advantages
- Robust ABB SR2 monobloc electrical enclosure for industrial applications.
- IP65 ingress protection against dust and water jets.
- IK10 impact resistance provides excellent mechanical protection.
- Supplied with an internal mounting plate for electrical components.
- Generous 700 × 500 × 200 mm enclosure dimensions.
- Two flange openings provide flexible cable-entry options.
Key Features
- ABB SR2 monobloc enclosure series.
- 700 mm height × 500 mm width × 200 mm depth.
- 183.5 mm internal depth.
- IP65 protection rating.
- IK10 impact resistance rating.
- Single opaque blind door.
- 1.2 mm cabinet and door steel thickness.
- Internal mounting plate included.
- Two flange openings for cable entry.
- Powder-coated RAL 7035 light grey finish.
Reliable Protection for Electrical and Automation Equipment
Industrial electrical enclosures provide a protected environment for control, switching, distribution and automation components. The ABB SRN7520K combines IP65 ingress protection with IK10 impact resistance, helping protect correctly installed equipment against dust, water jets and mechanical impacts in demanding industrial environments.
The included back plate provides a dedicated internal mounting surface for contactors, relays, terminals, controllers, power supplies and other panel components. Combined with 183.5 mm of internal depth and two flange openings for cable entry, the SRN7520K provides panel builders with a versatile platform for organised industrial electrical assemblies.
Typical Applications
- Industrial electrical control panels.
- Automation and PLC systems.
- Machine control equipment.
- Electrical distribution and switchgear assemblies.
- Instrumentation and monitoring systems.
- Manufacturing and process control installations.
