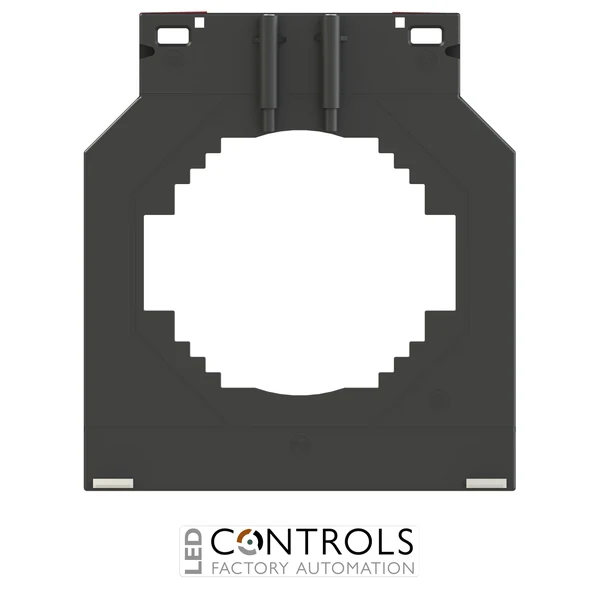

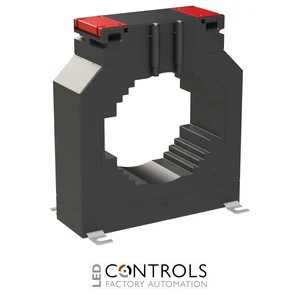

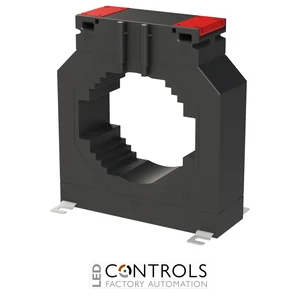

Why Choose the ABB CT1M-10 1000 Current Transformer?
The ABB CT1M-10 1000 is a reliable 1000/5 A current transformer designed for indirect measurement of electrical current in low-voltage metering and energy-monitoring systems. As part of the ABB CT1M current transformer series, it transforms high primary currents into a standardised 5 A secondary current suitable for connection to compatible meters and electrical measuring instruments.
Designed in accordance with IEC 61869-2, the CT1M-10 1000 provides a best accuracy class of 0.5 and is intended for applications where dependable current transformation is required. Its through-primary construction accommodates cables and horizontal or vertical busbars, making it suitable for distribution boards, switchboards and energy-monitoring installations.
With a rated primary current of 1000 A, rated secondary current of 5 A and rated frequency of 50–60 Hz, the CT1M-10 1000 is designed for high-current electrical measurement. It provides rated outputs of 15 VA at Class 0.5, 20 VA at Class 1 and 25 VA at Class 3, while the CT1M-10 frame accommodates cables up to 86 mm and busbars up to 100 × 30 mm, 80 × 50 mm or 70 × 60 mm.
Key Advantages
- Reliable 1000/5 A current transformation for indirect electrical measurement.
- Best accuracy class 0.5 for precise metering applications.
- 15 VA rated output at Class 0.5 for compatible measuring circuits.
- Designed in accordance with IEC 61869-2.
- Through-primary design suitable for cable and busbar installations.
- Accommodates cables up to 86 mm through the primary opening.
- Busbar and mounting-foot fixings are supplied as standard for convenient installation.
Key Features
- ABB CT1M-10 current transformer series.
- 1000 A rated primary current.
- 5 A rated secondary current.
- 1000/5 A transformation ratio.
- Accuracy class 0.5 with 15 VA rated output.
- 20 VA rated output at Class 1.
- 25 VA rated output at Class 3.
- 50–60 Hz rated frequency.
- FS 5 instrument security factor.
- IP20 protection rating.
- Through-primary construction for indirect current measurement.
Reliable Current Measurement for Electrical Metering
Current transformers allow measuring equipment to monitor high electrical currents without routing the full primary current directly through the measuring instrument. The ABB CT1M-10 1000 converts a 1000 A primary current proportionally to a standard 5 A secondary signal, enabling compatible ammeters, multifunction meters and energy meters to perform indirect current measurement.
The CT1M range is designed for electrical distribution and energy-efficiency applications where accurate and dependable current measurement is required. The CT1M-10 through-primary format provides installation flexibility for cables and busbars, while its defined accuracy classes and VA ratings allow the transformer to be matched to the requirements of the connected metering circuit.
Typical Applications
- Electrical energy metering systems.
- Main and sub-distribution switchboards.
- Industrial electrical distribution panels.
- Indirect current measurement with ammeters.
- Multifunction electrical measuring instruments.
- Energy monitoring and management systems.
- Commercial and industrial power-distribution installations.
