Why Choose the ABB CT1M-10 1200 Current Transformer?

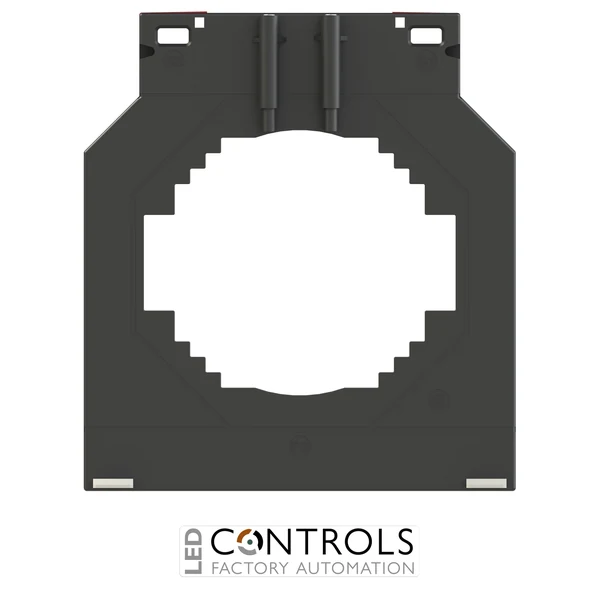

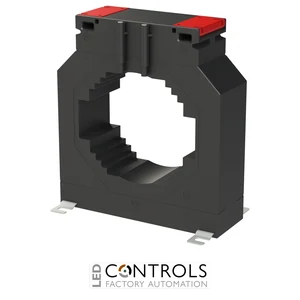

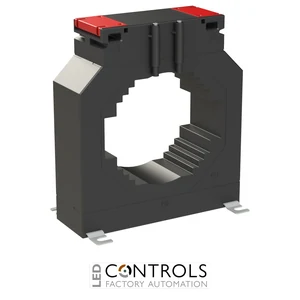

The ABB CT1M-10 1200, order code 2CSG280635R1000, is a 1200 A/5 A through-primary current transformer designed for indirect measurement of electrical parameters in metering, monitoring and energy management applications. Part of ABB's Metering Accessories range, it transforms a high primary current into a standardised 5 A secondary current for compatible electricity meters, network analysers and measuring instruments.
As part of the ABB CT1M current transformer series, the CT1M-10 1200 is designed according to IEC 61869-2. Its through-primary construction and large conductor aperture make it suitable for cable and busbar installations in commercial and industrial electrical distribution systems.
With a 1200 A rated primary current, 5 A rated secondary current and accuracy class 0.5, the CT1M-10 1200 provides a 1200:5 transformation ratio for accurate indirect electrical measurement. It delivers 15 VA at class 0.5, 30 VA at class 1 and 30 VA at class 3, while accommodating cables up to 86 mm and busbars up to 100 × 30 mm, 80 × 50 mm or 70 × 60 mm.
Key Advantages
- Purpose-designed for indirect electrical current measurement.
- 1200 A/5 A current ratio for compatible metering and monitoring equipment.
- Accuracy class 0.5 supports precise current and energy measurement.
- 15 VA rated output at class 0.5.
- Large through-primary aperture accommodates cables up to 86 mm.
- Suitable for horizontal and vertical busbars up to 100 × 30 mm, 80 × 50 mm or 70 × 60 mm.
- Busbar and mounting feet fixings are supplied as standard for straightforward installation.
Key Features
- ABB CT1M-10 current transformer series.
- 1200 A rated primary current.
- 5 A rated secondary current.
- 1200:5 current transformation ratio.
- Accuracy class 0.5.
- 15 VA rated output at class 0.5.
- 30 VA rated output at class 1.
- 30 VA rated output at class 3.
- 50–60 Hz rated frequency.
- IP20 protection rating.
- 86 mm maximum cable diameter.
- Through-primary construction for cable and busbar installations.
Reliable Indirect Measurement for High-Current Electrical Systems
Current transformers allow meters and measuring instruments to monitor electrical circuits carrying currents above their direct measurement range. The transformer produces a proportional secondary current, allowing electrical parameters to be measured without routing the full primary circuit current through the connected measuring instrument.
The ABB CT1M-10 1200 converts a nominal 1200 A primary current into a 5 A secondary current. Its class 0.5 accuracy, 15 VA class 0.5 output and large conductor aperture make it suitable for accurate indirect current measurement in industrial distribution boards, switchboards, power distribution systems and energy management installations using substantial cables or busbars.
Typical Applications
- Electrical energy metering systems.
- Commercial and industrial power distribution installations.
- Main distribution switchboards and electrical panels.
- Indirect measurement of circuits with a 1200 A nominal current.
- Energy monitoring and management systems.
- Current measurement with compatible network analysers, meters and instrumentation.
- Large cable and busbar current measurement.
- Industrial panel-building and electrical instrumentation applications.
