Why Choose the ABB CT1M-12 6000 Current Transformer?

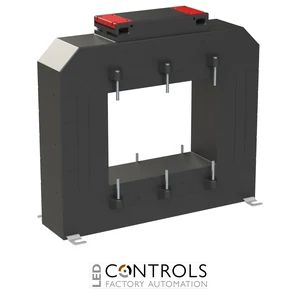

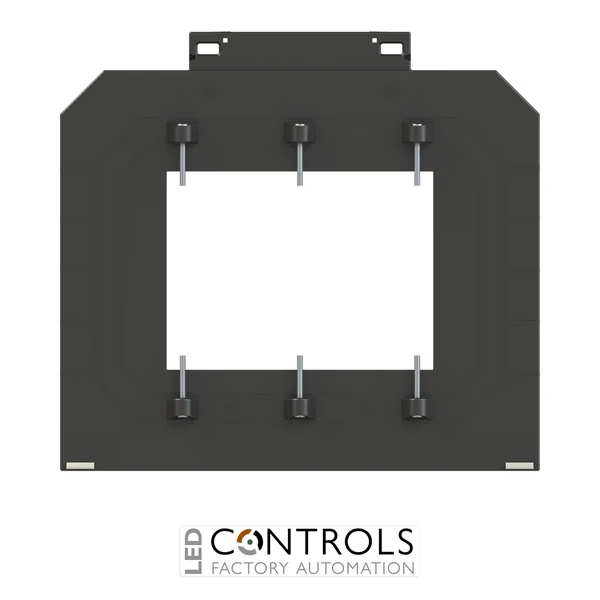

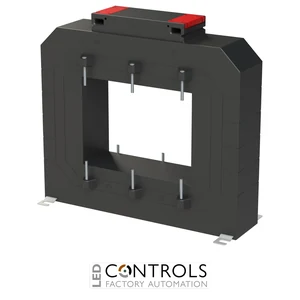

The ABB CT1M-12 6000, order code 2CSG280695R1000, is a 6000 A/5 A through-primary current transformer designed for indirect measurement of electrical parameters in high-current metering, monitoring and energy management applications. Part of ABB's Metering Accessories range, it transforms a high primary current into a standardised 5 A secondary current for compatible electricity meters, network analysers and measuring instruments.
As part of the ABB CT1M current transformer series, the CT1M-12 6000 is designed according to IEC 61869-2. Its large through-primary aperture is designed for substantial horizontal busbars, making it particularly suitable for industrial distribution equipment, main switchboards and other high-current electrical systems.
With a 6000 A rated primary current, 5 A rated secondary current and accuracy class 0.5, the CT1M-12 6000 provides a 6000:5 transformation ratio for accurate indirect electrical measurement. It delivers 100 VA at class 0.5, 100 VA at class 1 and 100 VA at class 3, while accommodating a horizontal busbar cross-section up to 125 × 93 mm.
Key Advantages
- Designed for high-current indirect electrical measurement applications.
- 6000 A/5 A current ratio for compatible metering and monitoring equipment.
- Accuracy class 0.5 supports precise current and energy measurement.
- 100 VA rated output at class 0.5 for demanding metering installations.
- Large through-primary opening accommodates horizontal busbars up to 125 × 93 mm.
- FS 5 overcurrent limiting factor for metering applications.
- Busbar and mounting feet fixings are supplied as standard for straightforward installation.
Key Features
- ABB CT1M-12 current transformer series.
- 6000 A rated primary current.
- 5 A rated secondary current.
- 6000:5 current transformation ratio.
- Accuracy class 0.5.
- 100 VA rated output at class 0.5.
- 100 VA rated output at class 1.
- 100 VA rated output at class 3.
- FS 5 overcurrent limiting factor.
- 50–60 Hz rated frequency.
- IP20 protection rating.
- Through-primary construction for horizontal busbar installations.
Reliable Indirect Measurement for Very High-Current Electrical Systems
Current transformers allow meters and measuring instruments to monitor electrical circuits carrying currents above their direct measurement range. The transformer produces a proportional secondary current, allowing electrical parameters to be measured without routing the full primary circuit current through the connected measuring instrument.
The ABB CT1M-12 6000 converts a nominal 6000 A primary current into a 5 A secondary current. Its class 0.5 accuracy, 100 VA class 0.5 output and large 125 × 93 mm horizontal busbar aperture make it particularly suitable for accurate indirect current measurement in high-capacity industrial distribution systems, main switchboards and energy monitoring installations.
Typical Applications
- High-current electrical energy metering systems.
- Industrial power distribution installations.
- Main distribution switchboards and electrical panels.
- Indirect measurement of circuits with a 6000 A nominal current.
- Energy monitoring and management systems.
- Current measurement with compatible network analysers, meters and instrumentation.
- Large horizontal busbar current measurement.
- Industrial panel-building and electrical instrumentation applications.
