Why Choose the Lovato DM1TA0400 Split-Core Current Transformer?

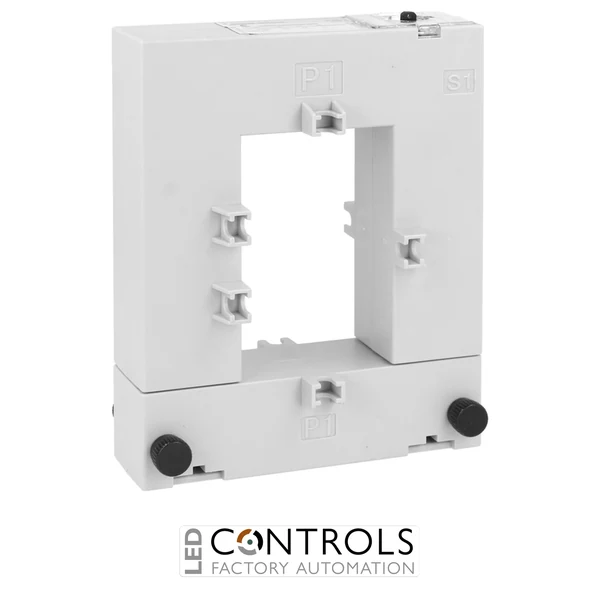

The Lovato DM1TA0400 is a high-performance split-core current transformer (CT) designed for accurate current measurement in industrial and commercial electrical systems. Featuring a 400/5 A transformation ratio, it converts high primary currents into a standard 5 A secondary output suitable for multifunction power meters, energy analysers and protection devices.
Its split-core design allows installation around an existing cable or busbar without disconnecting the primary conductor, making it ideal for retrofit energy monitoring projects, electrical upgrades and maintenance work where downtime must be minimised.
With a large 52 × 80 mm internal window, Class 0.5 accuracy at 1.5 VA and Class 1 accuracy at 3 VA, the DM1TA0400 delivers dependable performance for switchboards, distribution systems and industrial automation installations. It is manufactured to IEC standards and offers robust long-term reliability.
Key Advantages
- Accurate 400/5 A current transformation ratio.
- Split-core construction allows installation without disconnecting conductors.
- Large 52 × 80 mm aperture for cables and busbars.
- Class 0.5 accuracy at 1.5 VA for precision metering.
- Class 1 accuracy at 3 VA for general measurement applications.
- Standard 5 A secondary output compatible with industrial measuring equipment.
Key Features
- Lovato DM series split-core current transformer.
- 400 A rated primary current.
- 5 A rated secondary current.
- 52 × 80 mm split-core opening.
- Class 0.5 accuracy at 1.5 VA.
- Class 1 accuracy at 3 VA.
- Suitable for 50/60 Hz electrical systems.
- 720 V rated insulation voltage.
- 120% continuous overload capability.
- Screw terminal secondary connections.
- Robust screw fixing installation.
Ideal for Retrofit Energy Monitoring
The split-core construction enables the Lovato DM1TA0400 to be installed around existing conductors without disconnecting them, significantly reducing installation time and avoiding unnecessary power interruptions. This makes it particularly valuable when upgrading existing switchboards with energy monitoring equipment.
Its 5 A secondary output is compatible with a wide range of multifunction meters and power analysers, while the generous aperture accommodates larger conductors and busbars commonly found in industrial electrical installations.
Typical Applications
- Industrial switchboards.
- Electrical distribution panels.
- Energy monitoring systems.
- Multifunction power meters.
- Power quality analysers.
- Building energy management systems.
- Commercial electrical installations.
- Industrial automation systems.
