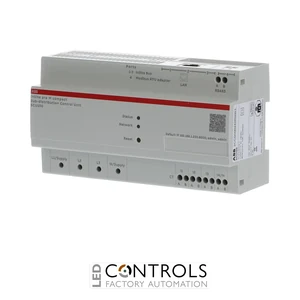

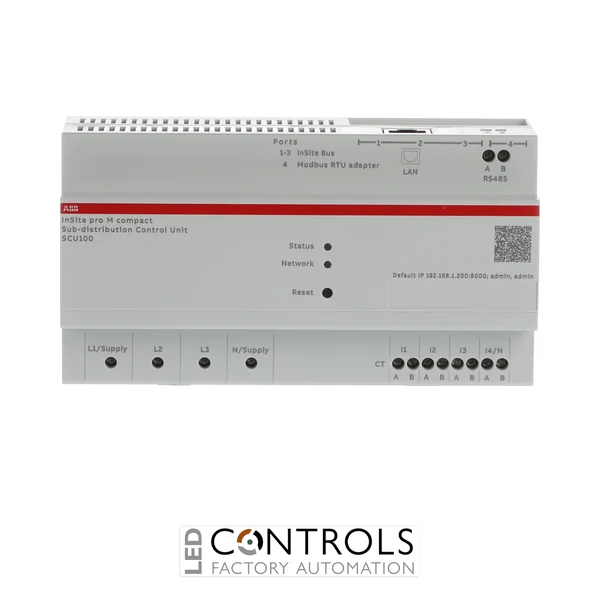

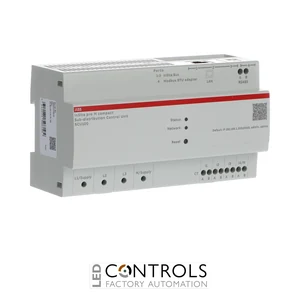

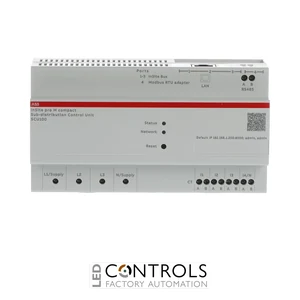

2CCG000242R0001 ABB SCU100 InSite pro M compact Control Unit
ABB SCU100 2CCG000242R0001 is the InSite pro M compact sub-distribution control unit for aggregating data from compatible current sensors, digital I/O modules and Modbus meters with Modbus TCP/IP and Modbus RTU connectivity.
Why Choose the ABB SCU100 InSite pro M compact Control Unit?
The ABB SCU100, order code 2CCG000242R0001, is the sub-distribution control unit at the heart of the ABB InSite pro M compact energy monitoring system. Designed as a single access point for a sub-distribution board, it collects and aggregates information from compatible current sensors, digital I/O modules, meters and other field devices.
The SCU100 supports integration of CMS current sensors, ABB digital input/output modules and energy or power meters using Modbus RTU. Communication through Modbus TCP/IP and Modbus RTU enables collected electrical data to be made available to supervisory and energy management systems, supporting detailed monitoring of electrical distribution installations.
An integrated web-based interface provides a central platform for commissioning, configuration and monitoring, while the SCU100's internal power supply supports connected sensors and I/O modules. This combination makes the control unit a practical foundation for scalable branch-circuit monitoring, energy management and intelligent sub-distribution applications.
Key Advantages
Acts as the central control and data aggregation unit for InSite pro M compact installations.
Provides a single access point for monitoring devices within a sub-distribution board.
Supports compatible ABB CMS current sensors for detailed branch-circuit monitoring.
Integrates compatible digital input and output modules for monitoring and control functions.
Modbus TCP/IP and Modbus RTU support enables integration with supervisory systems.
Can communicate with compatible energy and power meters via Modbus RTU.
Internal power supply supports communication and operation of connected sensors and I/O modules.
Key Features
ABB InSite pro M compact sub-distribution control unit.
Central data collector and aggregator for connected field devices.
Modbus TCP/IP communication.
Modbus RTU communication.
Connectivity for compatible ABB CMS current sensors.
Supports compatible DM00, DM10 and DM11 digital I/O modules.
Supports compatible energy and power meters using Modbus RTU.
Integrated power supply for connected sensors and I/O modules.
LED indication for installation and operating status.
InSite bus connectivity using a 4-pole flat cable.
Designed for integration within low-voltage sub-distribution boards.
Compact DIN-rail system architecture for scalable electrical monitoring.
Centralised Monitoring for Intelligent Sub-Distribution
The ABB SCU100 provides the central intelligence required to turn individual monitoring components into an integrated sub-distribution monitoring system. Current sensors can provide branch-level electrical measurements, while digital I/O modules enable conventional accessories and devices with digital or pulse interfaces to become part of the monitoring architecture. Modbus RTU also allows compatible energy and power meters to contribute data to the system.
By aggregating this information and making it available through Modbus TCP/IP or Modbus RTU, the SCU100 provides a bridge between field-level electrical devices and higher-level supervision or energy management platforms. This architecture enables detailed visibility of electrical consumption and operating status while retaining the modularity required to expand the monitoring system as installation requirements develop.
Typical Applications
Commercial and industrial sub-distribution boards.
ABB InSite pro M compact energy monitoring systems.
Branch-circuit current and energy monitoring.
Building energy management systems.
Electrical load and consumption analysis.
Data centre and critical-power distribution monitoring.
Integration of digital status and control signals.
Modbus-connected energy and power meter integration.
Technical Specifications
Series
InSite pro M compact
Order code
2CCG000242R0001
GTIN / EAN
7612271508104
Product group
Energy Monitoring Systems
Product type
Sub-distribution control unit
Function
Communication, data aggregation and electrical monitoring
Communication protocols
Modbus TCP/IP and Modbus RTU
Sensor interface
InSite bus
InSite bus connection
4-pole flat cable
Compatible current monitoring
ABB CMS sensors
Compatible I/O modules
DM00, DM10 and DM11
Voltage range
90–240 V
Maximum input current
6 A
Maximum apparent power
40 VA
Product width
161 mm
Product height
87 mm
Product depth
64.9 mm
Product weight
0.329 kg
Frequently Asked Questions
What is the ABB SCU100 used for?
The ABB SCU100 is the sub-distribution control unit for the InSite pro M compact system. It acts as a central access point, collecting and aggregating information from compatible current sensors, digital I/O modules and Modbus-connected meters.
Which communication protocols does the ABB SCU100 support?
The SCU100 supports Modbus TCP/IP and Modbus RTU, allowing collected information to be communicated to compatible supervisory and energy management systems.
Can the SCU100 connect to ABB CMS current sensors?
Yes. The SCU100 is designed to integrate compatible ABB CMS current sensors through the InSite bus, enabling detailed branch-circuit current monitoring within a sub-distribution board.
Can digital input and output devices be integrated with the SCU100?
Yes. Compatible DM00, DM10 and DM11 digital I/O modules can be connected through the InSite system, enabling status signals, control functions and suitable pulse-output devices to be incorporated into the monitoring architecture.
Can the ABB SCU100 communicate with energy and power meters?
Yes. The SCU100 supports compatible energy and power meters through Modbus RTU, allowing meter data to be collected alongside current sensor and digital I/O information within the InSite pro M compact system.
Centralised Energy Monitoring from ABB
The ABB SCU100 provides the central communication and data aggregation platform for InSite pro M compact, bringing current sensors, digital I/O modules and compatible Modbus meters together in a scalable solution for intelligent sub-distribution and energy monitoring.
Series
InSite pro M compact
Order code
2CCG000242R0001
GTIN / EAN
7612271508104
Product group
Energy Monitoring Systems
Product type
Sub-distribution control unit
Function
Communication, data aggregation and electrical monitoring
Communication protocols
Modbus TCP/IP and Modbus RTU
Sensor interface
InSite bus
InSite bus connection
4-pole flat cable
Compatible current monitoring
ABB CMS sensors
Compatible I/O modules
DM00, DM10 and DM11
Voltage range
90–240 V
Maximum input current
6 A
Maximum apparent power
40 VA
Product width
161 mm
Product height
87 mm
Product depth
64.9 mm
Product weight
0.329 kg
