Why Choose the ABB SCU200 Control Unit?

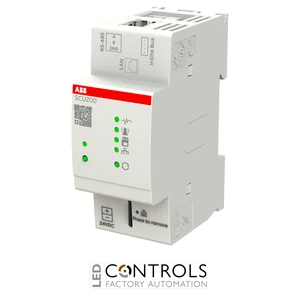

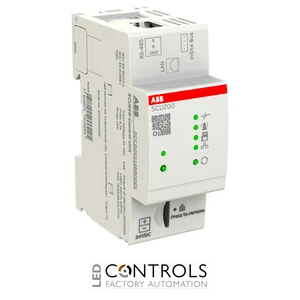

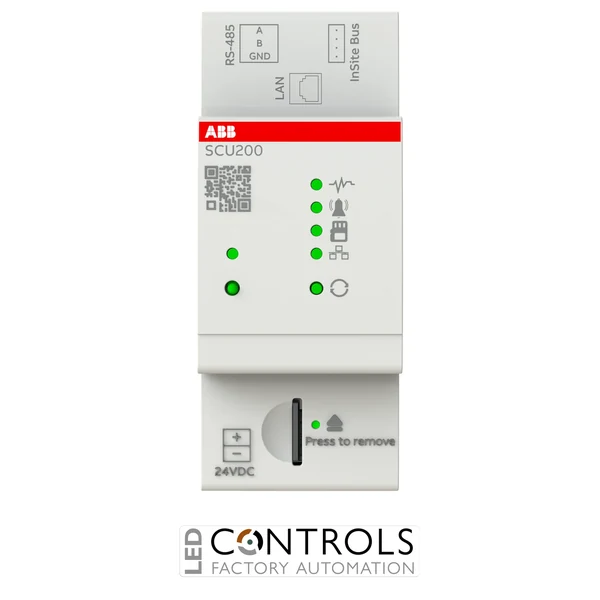

The ABB SCU200, order code 2CCG001158R0001, is a compact DIN-rail control unit for the ABB InSite energy management system. Designed for intelligent energy and load management in sub-distribution and final distribution applications, it collects information from compatible field devices and provides a central platform for monitoring, data visualisation and system integration.
The SCU200 can integrate up to 16 Modbus RTU devices, 16 Modbus TCP devices and 32 InSite bus devices. Compatible equipment can include current sensors, digital I/O modules, smart auxiliary contacts, energy meters and network analysers, enabling electrical information from multiple devices to be consolidated within one compact control architecture.
An integrated InSite web server provides access to measurement and system information through a standard network connection. With Ethernet, RS485 and InSite bus interfaces, plus support for Modbus RTU, Modbus TCP/IP, REST API, DHCP, HTTPS and NTP, the SCU200 provides flexible connectivity for local monitoring and integration with higher-level energy or building management platforms.
Key Advantages
- Compact central control unit for ABB InSite energy and load management systems.
- Supports up to 16 Modbus RTU devices and 16 Modbus TCP devices.
- Supports up to 32 InSite bus devices for scalable circuit-level monitoring.
- Integrated web server provides centralised monitoring and system configuration.
- Ethernet connectivity enables straightforward integration into wired network infrastructures.
- Supports Modbus RTU, Modbus TCP/IP and REST API for integration with compatible external systems.
- Modular architecture supports additional metering, power supply and communication modules for application-specific requirements.
Key Features
- ABB SCU200 InSite control unit.
- Central data acquisition and management for compatible field devices.
- Ethernet communication interface.
- RS485 communication interface.
- InSite bus flat-cable interface.
- Modbus RTU communication.
- Modbus TCP/IP communication.
- REST API support.
- Supports DHCP, HTTPS and NTP.
- Capacity for up to 16 Modbus RTU devices.
- Capacity for up to 16 Modbus TCP devices.
- Capacity for up to 32 InSite bus devices.
- Integrated web-server functionality for monitoring and configuration.
- DIN-rail mounting for compact electrical distribution-board installation.
- Compatible with dedicated SCU200 expansion and energy metering modules.
Centralised Energy and Load Management with SCU200
The ABB SCU200 provides the central intelligence for an InSite energy management installation. It can collect electrical measurements and status information from compatible Modbus and InSite bus devices, allowing current sensors, I/O modules, smart accessories, energy meters and network analysers to contribute data to a common monitoring platform.
The integrated web server makes this information accessible through the network, while Ethernet, RS485 and supported open communication protocols enable connection to higher-level systems. Its modular architecture also allows compatible SCU200 metering, power supply and communication modules to be added where required, providing a scalable foundation for energy monitoring and load management projects.
Typical Applications
- ABB InSite energy management systems.
- Commercial and industrial energy monitoring.
- Sub-distribution and final-distribution monitoring.
- Branch-circuit current and energy monitoring.
- Building energy management systems.
- Electrical load and consumption analysis.
- Integration of compatible Modbus energy meters and network analysers.
- Data centre and critical-power distribution monitoring.
