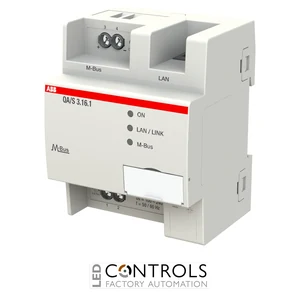

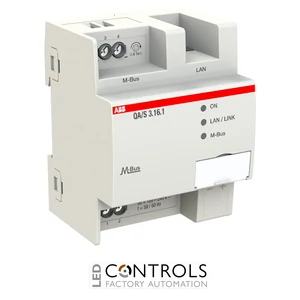

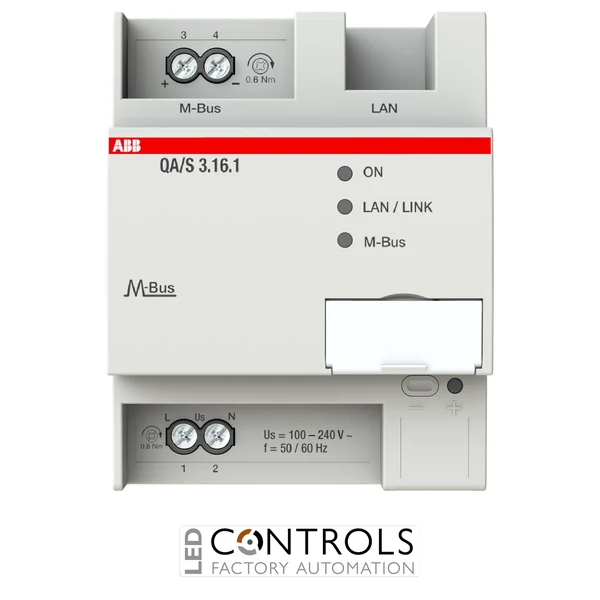

2CDG110226R0011 ABB EQmatic QA/S3.16.1 M-Bus Energy Analyzer
ABB EQmatic QA/S3.16.1 2CDG110226R0011 is a DIN-rail M-Bus energy analyzer for capturing, storing, displaying and analysing consumption data from up to 16 electricity, gas, water or heat meters through an integrated web-based interface.
Why Choose the ABB EQmatic QA/S3.16.1 Energy Analyzer?
The ABB EQmatic QA/S3.16.1, order code 2CDG110226R0011, is an M-Bus energy analyzer for up to 16 devices, designed to capture, store, display and analyse consumption data from electricity, gas, water and heat meters. It provides a central energy management platform for installations where consumption information from multiple meters needs to be consolidated and evaluated.
The QA/S3.16.1 communicates with up to 16 M-Bus meters and provides an integrated web-based user interface for system configuration and energy analysis. Graphical functions include dashboards, historical data, current values, consumption comparisons and cost-allocation analysis, allowing users to examine energy usage without requiring separate visualisation software for everyday analysis.
With Ethernet connectivity, data logging and export functionality, the EQmatic energy analyzer can also support further processing of metering information by external systems. Its compact DIN-rail mounted design makes it suitable for professional energy monitoring in commercial, industrial and building-services installations.
Key Advantages
Centralised energy management for up to 16 M-Bus meters.
Supports consumption monitoring for electricity, gas, water and heat.
Integrated web-based user interface for configuration and analysis.
Provides data logging and historical consumption information.
Graphical dashboard enables clear visualisation of energy consumption.
Supports consumer and time-period comparisons for detailed analysis.
Provides analysis functions for cost allocation between consumer groups.
Export functions and APIs support further processing of collected metering data.
Key Features
ABB EQmatic QA/S3.16.1 energy analyzer.
M-Bus meter communication.
Supports up to 16 M-Bus devices.
Compatible with electricity, gas, water and heat consumption meters using M-Bus.
Data logging functionality.
Web UI for system configuration.
Web UI for graphical energy analysis.
Customisable dashboard functionality.
Historical consumption data.
Display of current metering values.
Consumer and time-period comparison functions.
Cost-allocation analysis by consumer group.
Multiple data export functions.
APIs for further processing of metering data.
Ethernet data interface.
DIN-rail mounting for distribution-board installation.
Web-Based M-Bus Energy Analysis with ABB EQmatic
The ABB EQmatic QA/S3.16.1 combines an M-Bus data gateway with integrated energy-management functionality. Consumption information from up to 16 compatible electricity, gas, water or heat meters can be collected and stored centrally, eliminating the need to inspect individual meters when analysing building or facility consumption. The collected information can then be organised and viewed through the device's web-based interface.
The graphical interface provides dashboards, historical records, current values and comparison functions that help users identify consumption patterns across different meters and time periods. Cost-allocation tools can also be used to analyse consumption by consumer group, while export functions and APIs allow metering information to be transferred for further processing by compatible external applications and management systems.
Typical Applications
Commercial building energy monitoring.
Industrial energy management systems.
Monitoring of up to 16 M-Bus meters.
Electricity consumption analysis.
Gas, water and heat consumption monitoring.
Multi-tenant and departmental cost-allocation analysis.
Historical energy consumption reporting.
Facility and building-services energy optimisation.
Technical Specifications
Tick the specs you need, then view products that match.
Device Type
Accessory / module
Series
EQmatic
Order code
2CDG110226R0011
GTIN / EAN
4016779997751
Product group
Energy Monitoring Systems
Product type
Energy analyzer / energy data gateway
Meter communication
M-Bus
Maximum number of meters
16
Supported consumption media
Electricity, gas, water and heat
Data transmission interface
Ethernet
Nominal voltage
230 V
Nominal frequency
50–60 Hz
Degree of protection
IP20
Mounting
DIN rail
Modular width
4 modules
Data logging
Yes
Web-based configuration
Yes
Web-based energy analysis
Yes
Historical data
Yes
Dashboard
Yes
Cost-allocation analysis
Yes
Net weight
0.150 kg
Country of origin
Germany
Packaging unit
1 piece
Frequently Asked Questions
What is the ABB EQmatic QA/S3.16.1 used for?
The ABB EQmatic QA/S3.16.1 is an energy analyzer and M-Bus data gateway used to capture, store, display and analyse consumption information from compatible electricity, gas, water and heat meters.
How many meters can the ABB QA/S3.16.1 monitor?
The QA/S3.16.1 can connect to and monitor up to 16 M-Bus meters.
Which types of consumption can the QA/S3.16.1 analyse?
The EQmatic QA/S3.16.1 can collect consumption information from compatible electricity, gas, water and heat meters communicating through M-Bus.
Does the ABB EQmatic QA/S3.16.1 have a web interface?
Yes. The QA/S3.16.1 provides an integrated web-based user interface for configuration and energy analysis, including dashboards, historical information, current values, comparison functions and cost-allocation analysis.
Can data from the QA/S3.16.1 be used by other systems?
Yes. The ABB EQmatic platform provides data export functions and APIs for further processing of collected metering information, while the QA/S3.16.1 also provides Ethernet connectivity for network integration.
Centralised M-Bus Energy Analysis from ABB
The ABB EQmatic QA/S3.16.1 combines M-Bus connectivity for up to 16 meters with data logging, web-based dashboards, historical analysis, consumption comparisons and cost-allocation tools, providing a compact platform for monitoring electricity, gas, water and heat consumption.
Device Type
Accessory / module
Series
EQmatic
Order code
2CDG110226R0011
GTIN / EAN
4016779997751
Product group
Energy Monitoring Systems
Product type
Energy analyzer / energy data gateway
Meter communication
M-Bus
Maximum number of meters
16
Supported consumption media
Electricity, gas, water and heat
Data transmission interface
Ethernet
Nominal voltage
230 V
Nominal frequency
50–60 Hz
Degree of protection
IP20
Mounting
DIN rail
Modular width
4 modules
Data logging
Yes
Web-based configuration
Yes
Web-based energy analysis
Yes
Historical data
Yes
Dashboard
Yes
Cost-allocation analysis
Yes
Net weight
0.150 kg
Country of origin
Germany
Packaging unit
1 piece
