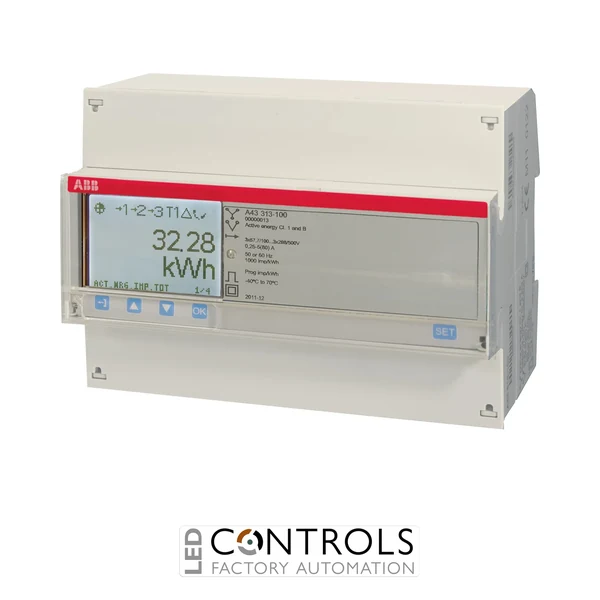

Why Choose the ABB A43 313-100 Energy Meter?
The ABB A43 313-100 is an advanced three-phase direct-connected electricity meter designed for accurate energy monitoring in commercial, industrial and building-services installations. As part of the ABB A43 EQ meter series, this Silver-function meter combines direct measurement up to 80 A with active and reactive energy measurement, multi-tariff functionality and integrated M-Bus communication.
Designed for direct connection without external current transformers, the A43 313-100 can be used in 3-wire and 4-wire three-phase systems. It measures active and reactive energy in both import and export directions, with Class B (Class 1) active energy accuracy and Class 2 reactive energy accuracy. Separate energy registers and a resettable intermediate register support detailed analysis of electrical consumption and energy flow.
The meter operates across a wide 3 × 57.7/100–288/500 V AC measurement range and supports up to four tariffs. Two inputs and two outputs can be used for pulse, tariff and alarm functions, while integrated M-Bus communication, instrumentation values, configurable alarms and event logging provide comprehensive functionality for connected energy-management systems.
Key Advantages
- Advanced three-phase direct-connected energy meter for professional installations.
- Direct measurement up to 80 A without external current transformers.
- Suitable for 3-wire and 4-wire three-phase networks.
- Class B (Class 1) active energy accuracy for dependable energy measurement.
- Measures active and reactive energy in import and export directions.
- Integrated M-Bus communication for remote meter reading and system integration.
- Supports up to four tariffs for multi-tariff energy monitoring.
- Two inputs and two outputs provide flexible pulse, tariff and alarm functionality.
- Up to 25 configurable alarms and event logging support detailed electrical monitoring.
- IEC approved and MID approved and verified for professional metering applications.
Key Features
- ABB A43 EQ meter series.
- Silver functionality level.
- Three-phase direct-connected electricity meter.
- Maximum direct current: 80 A.
- 3 × 57.7/100–288/500 V AC measurement range.
- 50–60 Hz operating frequency.
- Class B (Class 1) active energy accuracy.
- Class 2 reactive energy accuracy.
- Active and reactive energy measurement.
- Import and export energy stored in separate registers.
- Resettable register for intermediate energy values.
- Up to four energy tariffs.
- Integrated M-Bus communication.
- Infrared communication interface.
- Two inputs and two outputs for pulse, tariff and alarm functions.
- Instrumentation values for power, current, voltage, frequency, power factor and apparent power.
- Up to 25 configurable alarm conditions.
- Event logging functionality.
- Backlit digital display with up to seven digits.
- Seven-module DIN-rail construction.
Reliable Direct-Connected Three-Phase Energy Monitoring
Direct-connected energy meters such as the ABB A43 313-100 measure three-phase electricity without requiring external current transformers on circuits within the meter's 80 A rating. This simplifies installation while providing detailed measurement of both active and reactive energy flowing into or out of the monitored electrical system.
The A43 313-100 extends energy measurement with electrical instrumentation, configurable alarms, event logging and multi-tariff functionality. Integrated M-Bus communication enables meter information to be collected remotely by compatible building-management and energy-management systems, providing a practical solution for centralised monitoring of commercial and industrial electrical installations.
Typical Applications
- Commercial building energy monitoring.
- Industrial three-phase electrical distribution.
- Direct-connected sub-metering up to 80 A.
- Building management systems using M-Bus communication.
- Import and export energy measurement.
- Renewable and distributed-generation monitoring.
- Tenant and departmental electricity allocation.
- Multi-tariff electricity monitoring.
- Distribution boards and electrical control panels.
- Energy efficiency and electrical consumption analysis.
