Why Choose the ABB D11 15-M 40 M-Bus Energy Meter?

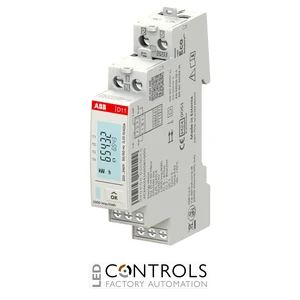

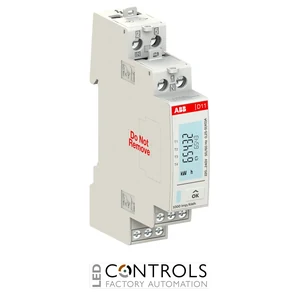

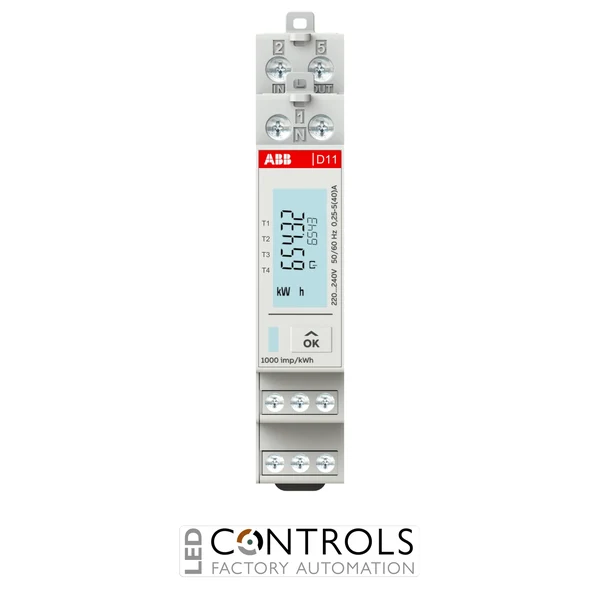

The ABB D11 15-M 40 is a compact single-phase direct-connected electricity meter designed for accurate energy monitoring in residential, commercial and light industrial electrical installations. As part of the ABB D11 15 DIN rail mounted meter range, it combines bidirectional energy measurement with integrated M-Bus communication in a space-saving one-module format.
This electronic energy meter measures active and reactive energy in both import and export directions, making it suitable for conventional consumption monitoring and installations with bidirectional energy flow. Its integrated M-Bus interface enables measurement data to be collected remotely by compatible building-management, energy-management and automatic meter-reading systems.
With direct connection for currents up to 40 A and operation on 220–240 V AC single-phase systems, the D11 15-M 40 requires no external current transformer for loads within its rated range. Its compact 1 DIN-module design allows straightforward installation in distribution boards and control panels where available rail space is limited.
Key Advantages
- Compact single-phase direct-connected energy meter rated up to 40 A.
- Integrated M-Bus communication for remote meter reading and energy monitoring.
- Measures active and reactive energy in import and export directions.
- Class 1 active-energy accuracy for dependable electricity measurement.
- Class 2 reactive-energy accuracy for reactive consumption monitoring.
- Direct connection eliminates the need for external current transformers within the rated current range.
- Space-saving construction occupies only one DIN module.
Key Features
- ABB D11 15 energy meter series.
- Single-phase direct-connected metering.
- 0.25–5(40) A current range.
- 40 A maximum current.
- 220–240 V AC operating voltage.
- Integrated M-Bus communication interface.
- Measurement of active and reactive energy.
- Measures both imported and exported energy.
- Class 1 active-energy and Class 2 reactive-energy accuracy.
- Digital display for local meter reading.
- Designed for standard 35 mm DIN rail mounting.
- Compact 1 DIN-module construction.
Compact M-Bus Energy Monitoring
Direct-connected meters such as the ABB D11 15-M 40 measure electrical current without requiring external current transformers for loads within their rated range. This simplifies installation and wiring while enabling accurate monitoring of active and reactive energy in compact single-phase distribution systems.
Integrated M-Bus communication makes the D11 15-M 40 particularly suitable for networked metering installations. Energy information can be collected by compatible M-Bus masters, gateways and energy-management platforms, allowing multiple meters to form part of a centralised building or utility monitoring system.
Typical Applications
- Single-phase residential energy monitoring.
- Commercial building sub-metering.
- Apartment and multi-occupancy metering systems.
- Light industrial electrical distribution systems.
- Electrical control panels and distribution boards.
- Building-management and energy-management systems.
- Bidirectional import and export energy monitoring.
- Remote meter reading through M-Bus networks.
