Why Choose the ABB D13 15-M 65 Three-Phase Energy Meter?

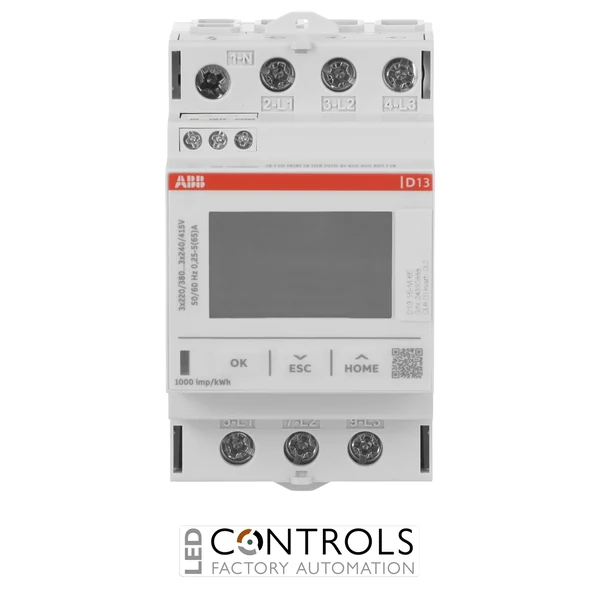

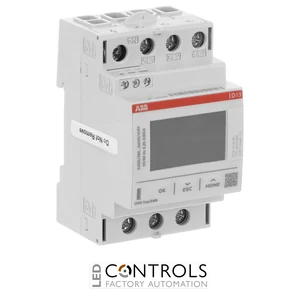

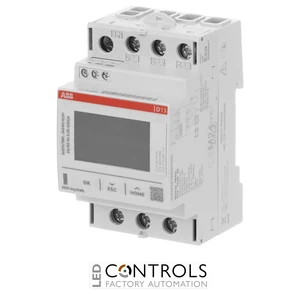

The ABB D13 15-M 65 is a compact three-phase direct-connected DIN rail energy meter designed for accurate electrical energy measurement in industrial, commercial and residential distribution systems. As part of the ABB D13 EQ meter series, it provides comprehensive measurement of energy and key electrical quantities while occupying only three DIN modules.
The D13 15-M 65 measures energy consumption and generation together with active, reactive and apparent energy. It also provides electrical instrumentation including current, voltage, power and frequency, giving users useful information for monitoring loads and analysing energy usage. A digital display provides clear local access to measured values.
Designed for three-phase direct connection up to 65 A, the D13 15-M 65 eliminates the need for external current transformers in suitable applications. It operates on 3 × 230/400 V AC, 50/60 Hz systems and includes one digital input and one digital output, with the output configurable for pulse or alarm operation. MID certification makes this version suitable for applications requiring verified energy measurement.
Key Advantages
- Compact three-phase direct-connected energy meter for electrical distribution systems.
- Direct connection up to 65 A without external current transformers in suitable applications.
- Measures energy consumption and generation for bidirectional energy monitoring.
- Measures active, reactive and apparent energy together with key electrical parameters.
- Class B active energy accuracy for dependable energy measurement.
- One digital input and one configurable pulse or alarm output.
- Compact 3 DIN-module width helps conserve distribution-board space.
- MID certified for applications requiring compliant energy metering.
Key Features
- ABB D13 EQ meter series.
- Three-phase direct-connected metering up to 65 A.
- 3 × 230/400 V AC nominal system voltage.
- 50/60 Hz operating frequency.
- Four-wire 3P+N connection.
- Measures energy consumption and generation.
- Measurement of active, reactive and apparent energy.
- Measurement of current, voltage, power and frequency.
- Class B active energy accuracy.
- One digital input and one digital output.
- S0 electrical pulse output configurable for energy pulses or alarm operation.
- Multi-tariff capability with tariff control.
- Digital display for local energy and instrumentation readings.
- IP20 protection rating.
- Compact DIN rail housing only 52.5 mm wide.
Compact Three-Phase Energy Monitoring
The ABB D13 15-M 65 combines direct-connected three-phase metering with comprehensive electrical measurement in a compact three-module housing. Its ability to measure consumption and generation, as well as active, reactive and apparent energy, makes it suitable for both conventional loads and installations where bidirectional energy flow needs to be monitored.
The meter's digital input and configurable digital output provide additional integration flexibility. The electrical S0 output can provide energy pulses to compatible monitoring equipment or be used for alarm management, making the D13 15-M 65 suitable for standalone metering as well as wider energy monitoring systems.
Typical Applications
- Three-phase electrical distribution boards.
- Industrial energy monitoring.
- Commercial buildings and facilities.
- Energy sub-metering and consumption allocation.
- Residential and multi-occupancy electrical installations.
- Energy consumption and generation monitoring.
- Machinery and equipment energy measurement.
- DIN rail control panels and switchboards.
