Why Choose the ABB D13 15 65 Three-Phase Energy Meter?

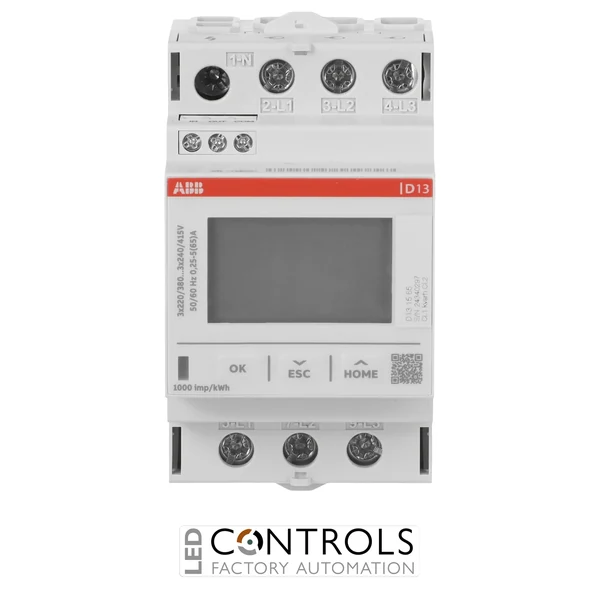

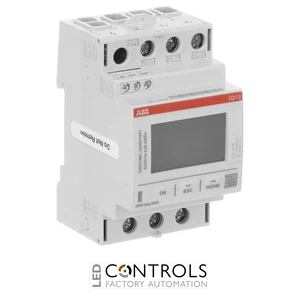

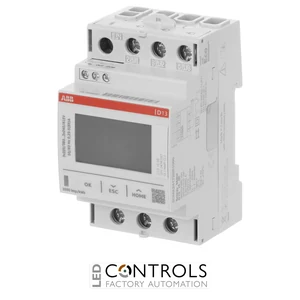

The ABB D13 15 65 is a compact three-phase direct-connected DIN rail energy meter designed for accurate electrical energy measurement in industrial, commercial and building distribution systems. As part of the ABB D13 EQ meter series, it provides active and reactive energy measurement together with useful electrical instrumentation in a space-saving three-module format.
The D13 15 65 supports measurement of both imported and exported energy, making it suitable for monitoring electrical consumption as well as installations with bidirectional energy flow. Its digital display provides clear local access to measured values, while one digital input and one digital output provide flexible integration with external equipment.
Designed for three-phase direct connection up to 65 A, the D13 15 65 can meter suitable loads without external current transformers. It is designed for 3 × 230/400 V AC, 50/60 Hz electrical systems and provides Class 1 active energy and Class 2 reactive energy accuracy. This version has no communications protocol and is not MID certified, making it suited to monitoring applications where network communications and MID billing certification are not required.
Key Advantages
- Compact three-phase direct-connected energy meter for electrical distribution systems.
- Direct connection up to 65 A without external current transformers in suitable applications.
- Measures active and reactive energy for detailed electrical energy monitoring.
- Supports import and export measurement for bidirectional energy flows.
- Class 1 active energy accuracy and Class 2 reactive energy accuracy.
- Includes one digital input and one digital output for external integration.
- No network communications, providing a straightforward standalone metering solution.
- Compact 3 DIN-module format helps conserve space in electrical distribution panels.
Key Features
- ABB D13 EQ meter series.
- Three-phase direct-connected metering up to 65 A.
- 3 × 230/400 V AC nominal voltage.
- 50/60 Hz operating frequency.
- 5 A nominal current with 65 A maximum current.
- Active and reactive energy measurement.
- Import and export energy measurement.
- Active energy accuracy Class 1.
- Reactive energy accuracy Class 2.
- One digital input and one digital output.
- No Modbus or M-Bus network communication.
- Digital display for local energy and instrumentation readings.
- No external current transformers required for suitable loads up to 65 A.
- Compact 3 DIN-module housing for DIN rail installation.
Straightforward Three-Phase Energy Monitoring
The ABB D13 15 65 provides direct measurement of three-phase electrical energy without requiring external current transformers for suitable circuits up to 65 A. Its measurement of active and reactive energy, together with import and export registers, makes it useful for analysing energy consumption and bidirectional electrical energy flows.
This version is designed as a straightforward standalone meter without Modbus or M-Bus network communications. One digital input and one digital output provide additional flexibility for connection to compatible external equipment, while the compact three-module DIN rail design allows efficient installation in distribution boards, switchboards and control panels.
Typical Applications
- Three-phase electrical distribution boards.
- Industrial energy monitoring.
- Commercial buildings and facilities.
- Energy sub-metering and consumption monitoring.
- Production and manufacturing equipment.
- Electrical switchboards and control panels.
- Import and export energy monitoring.
- Standalone metering applications where network communication is not required.
