Why Choose the Carlo Gavazzi CPTDINAV53HV1AX Energy Transducer?

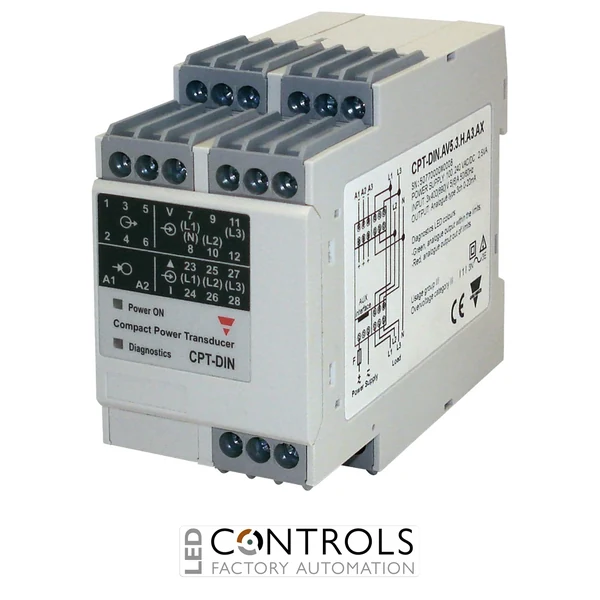

The Carlo Gavazzi CPTDINAV53HV1AX is a compact and advanced DIN rail mounted energy transducer designed for accurate monitoring of electrical variables in industrial power distribution, machinery and automation systems. As part of the Carlo Gavazzi CPTDIN Advanced series, it provides reliable three-phase measurement with analogue voltage output functionality for integration with PLCs, controllers, monitoring systems and energy management platforms.
This transducer is designed to measure important electrical parameters including voltage, current, frequency, active power, apparent power, reactive power, power factor and energy values. Its 0-10 V DC analogue output allows selected measured values to be transmitted as a proportional signal to compatible control or monitoring equipment.
With support for 230-347 V L-N, 400-600 V L-L systems and 5(6) A current transformer inputs, the CPTDINAV53HV1AX is well suited to three-phase energy monitoring applications. Its 90-260 V AC/DC auxiliary supply and compact DIN rail housing make it straightforward to install inside electrical control panels, switchgear assemblies and distribution boards.
Key Advantages
- Compact DIN rail energy transducer for industrial monitoring applications.
- Designed for three-phase electrical measurement.
- Measures voltage, current, frequency, power, power factor and energy values.
- 5(6) A current transformer input for use with standard CT systems.
- One analogue 0-10 V DC output for proportional signal integration.
- Wide 90-260 V AC/DC auxiliary supply for flexible panel installation.
Key Features
- Carlo Gavazzi CPTDIN Advanced series.
- Three-phase energy transducer.
- 230-347 V L-N / 400-600 V L-L measurement range.
- 5(6) A current transformer input.
- 1 analogue output, 0-10 V DC.
- Supports 50 / 60 Hz electrical systems.
- Measures consumption and generation energy values.
- DIN rail mounting for fast installation in control panels.
Analogue Energy Monitoring for Industrial Panels
Energy transducers such as the Carlo Gavazzi CPTDINAV53HV1AX convert measured electrical values into a proportional analogue voltage signal that can be used by PLCs, data loggers, remote I/O systems and automation controllers. This allows engineers to monitor electrical loading, energy use and system performance across machinery, panels and distribution networks.
The CPTDIN Advanced series is designed for compact installation and dependable measurement in demanding electrical environments. Its 0-10 V DC analogue output makes it especially useful where a simple proportional signal is required for local monitoring, control feedback or data acquisition.
Typical Applications
- Industrial energy monitoring systems.
- Electrical control panels and distribution boards.
- Machine power monitoring and process automation.
- Building management systems and facility monitoring.
- PLC and analogue signal monitoring applications.
- Energy management and consumption analysis systems.
