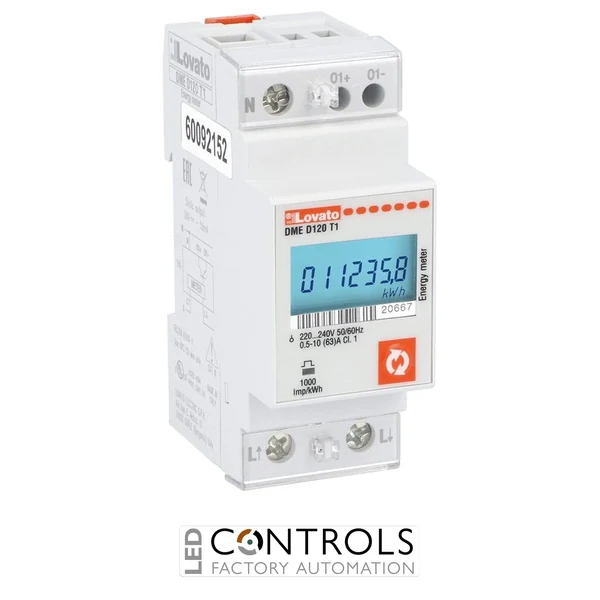

Why Choose the Lovato DMED120T1 Single-Phase Energy Meter?
The Lovato DMED120T1 is a compact single-phase digital energy meter designed for accurate monitoring of electrical energy consumption in residential, commercial and industrial applications. With a direct connection rating of up to 63 A, it eliminates the need for an external current transformer in many standard installations while providing reliable multi-parameter electrical measurements.
As part of the Lovato Electric DMED energy meter range, the DMED120T1 combines a clear backlit LCD display with comprehensive electrical measurement capabilities. In addition to imported active and reactive energy, it measures voltage, current, active power, reactive power, power factor and frequency, making it suitable for detailed energy monitoring and electrical analysis.
The meter is housed in a compact 2-module DIN rail enclosure and includes one programmable static output for remote pulse counting or alarm signalling. It is ideal for distribution boards, machinery, commercial premises and industrial control panels requiring dependable energy monitoring.
Key Advantages
- Direct connection up to 63 A without an external current transformer.
- Measures active energy, reactive energy and key electrical parameters.
- Large backlit LCD display provides excellent readability.
- Programmable static output for pulse or threshold functions.
- Compact 2-module DIN rail design.
- Suitable for commercial, industrial and building energy monitoring.
Key Features
- Lovato Electric DMED series energy meter.
- Single-phase direct-connected design.
- 63 A maximum current rating.
- 220-240 V AC operating voltage.
- Class 1 active energy accuracy.
- Class 2 reactive energy accuracy.
- Backlit LCD display with multiple electrical measurements.
- One programmable static output.
- Measures voltage, current, power, power factor and frequency.
- DIN rail mounting.
Comprehensive Electrical Monitoring
The Lovato DMED120T1 continuously measures electrical parameters within a single-phase installation, providing significantly more information than a conventional energy counter. Alongside active and reactive energy values, it displays voltage, current, frequency, power factor and power measurements, helping engineers monitor installation performance and identify opportunities to improve efficiency.
Its programmable output allows integration with compatible building-management systems, PLCs, data concentrators and energy-monitoring platforms. The compact DIN rail housing makes installation straightforward in new panels or retrofit projects where reliable electrical measurement is required.
Typical Applications
- Commercial building energy monitoring.
- Industrial distribution boards.
- Tenant sub-metering.
- Machine energy monitoring.
- Building management systems.
- Electrical control panels.
- HVAC equipment monitoring.
- Energy efficiency projects.
