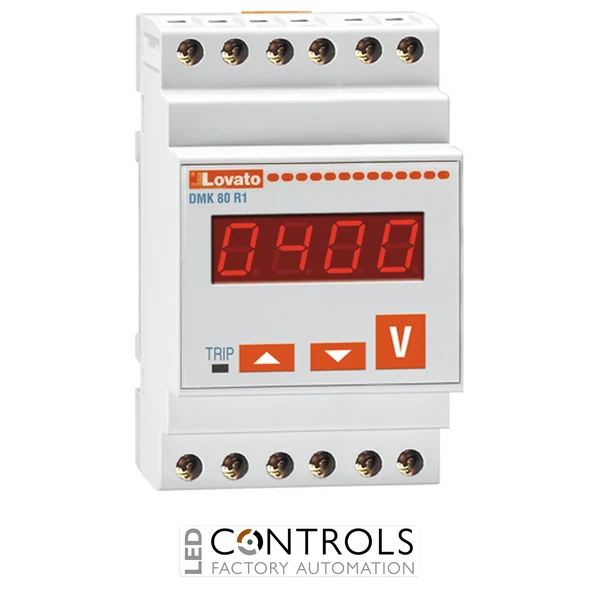

Why Choose the Lovato DMK80R1 Single-Phase Digital Voltmeter?
The Lovato DMK80R1 is a compact single-phase digital voltmeter designed for continuous AC voltage monitoring, alarm signalling and protection in industrial switchboards, distribution boards and machinery control systems. It displays the present voltage together with stored minimum and maximum values, helping operators identify supply variations and abnormal electrical conditions.
The instrument uses True RMS measurement to provide dependable readings, including where voltage waveforms are affected by harmonics or distortion from variable speed drives, electronic power supplies and other non-linear equipment. Its wide measuring range of 15 to 660 V AC makes it suitable for many low-voltage monitoring applications.
The DMK80R1 also includes a programmable relay output with control and protection functions. This allows the meter to activate an alarm, switch a contactor or interface with an external control circuit when configured voltage thresholds are reached. Its compact three-module DIN rail housing simplifies installation in electrical panels where available space is limited.
Key Advantages
- Accurate single-phase AC voltage monitoring.
- True RMS measurement for reliable readings on distorted waveforms.
- Wide direct measuring range of 15 to 660 V AC.
- Displays present, minimum and maximum voltage values.
- Includes a programmable relay output for control, alarm and protection.
- Supports voltage transformer scaling for indirect measurements.
- Compact three-module DIN rail-mounted design.
Key Features
- Lovato DMK digital metering instrument series.
- Single-phase digital AC voltmeter.
- One present voltage reading.
- One stored maximum voltage value.
- One stored minimum voltage value.
- 15 to 660 V AC operating measurement range.
- 600 V AC rated measuring voltage.
- True RMS voltage measurement.
- One programmable relay output.
- 220 to 240 V AC auxiliary supply.
- Four-digit LED display.
- Three-module DIN rail installation.
Reliable Voltage Monitoring and Protection
Continuous voltage monitoring helps engineers identify overvoltage, undervoltage and unstable supply conditions before they affect connected machinery or electrical equipment. The Lovato DMK80R1 records minimum and maximum values, allowing voltage fluctuations that occur between inspections to be reviewed quickly.
Its programmable relay output extends the meter beyond basic indication. The relay can activate an external warning device, control a contactor or communicate a voltage condition to another control system, making the DMK80R1 suitable for automatic supply supervision and protective applications.
Typical Applications
- Industrial switchboards and electrical distribution panels.
- Machinery and process control cabinets.
- Single-phase supply voltage monitoring.
- Overvoltage and undervoltage protection.
- Generator and power supply supervision.
- Building services electrical systems.
- Alarm and protective control circuits.
- Indirect voltage measurement through an external voltage transformer.
