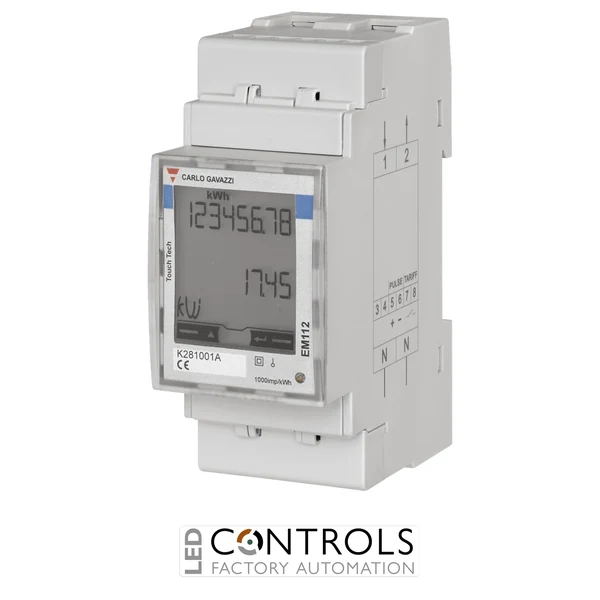

Why Choose the Carlo Gavazzi EM112DINAV01XM1X Energy Analyser?
The Carlo Gavazzi EM112DINAV01XM1X is a compact and highly accurate single-phase energy analyser designed for energy monitoring, sub-metering and power analysis in commercial, industrial and building automation applications. As part of the advanced Carlo Gavazzi EM112 series, it provides reliable measurement of imported and exported electrical energy together with an integrated M-Bus communication interface for seamless integration into energy management and building control systems.
Designed for DIN rail mounting, the EM112DINAV01XM1X features direct current measurement up to 100 A without requiring external current transformers. The backlit LCD display provides clear visibility of electrical parameters, while the compact 2-DIN enclosure makes installation simple in distribution boards and control panels.
Operating from a 230 V AC single-phase supply, this energy analyser measures active and reactive energy, voltage, current, active power, reactive power, apparent power, frequency and power factor. The integrated M-Bus communication port enables reliable data transmission to central monitoring and building management systems for effective energy management.
Key Advantages
- Compact single-phase energy analyser for DIN rail installation.
- Direct measurement up to 100 A without external current transformers.
- M-Bus communication for building and energy management systems.
- Measures imported and exported active and reactive energy.
- Backlit LCD display with integrated touch keypad.
- Ideal for sub-metering, energy monitoring and cost allocation.
Key Features
- Carlo Gavazzi EM112 Series.
- Single-phase (2-wire) energy analyser.
- 230 V AC L-N input voltage.
- Direct connection 5 (100) A.
- M-Bus communication interface.
- Measures voltage, current, power, energy, frequency and power factor.
- Backlit LCD display with touch controls.
- Compact 2-DIN module for DIN rail mounting.
Reliable Energy Monitoring for Commercial and Industrial Installations
The Carlo Gavazzi EM112DINAV01XM1X provides precise measurement of electrical energy consumption and generation, enabling engineers and facility managers to optimise energy usage, improve operational efficiency and reduce running costs. Its direct measurement capability eliminates the need for external current transformers in applications up to 100 A.
With integrated M-Bus communication, comprehensive electrical parameter measurement and a compact DIN rail enclosure, the EM112 series is ideally suited for modern building management systems, industrial automation and energy monitoring installations.
Typical Applications
- Commercial building sub-metering.
- Industrial control panels.
- Energy management systems.
- Building management systems (BMS).
- Electrical distribution boards.
- Energy efficiency and cost allocation projects.
