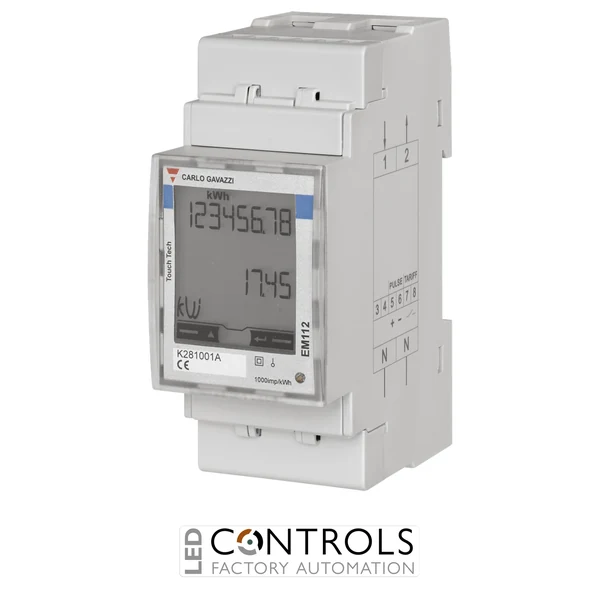

EM112DINAV01XS1PFA - 1-ph energy meter, 100A, 230VLN

EM112DINAV01XS1PFA – 1-ph energy meter, 100A, 230VLN

Carlo Gavazzi EM112DINAV01XS1PFA single-phase MID energy analyser with 230 V AC input, 5 (100) A direct measurement, self-powered operation and RS485 Modbus RTU communication for commercial and industrial energy monitoring.

SKU: EM112DINAV01XS1PFAMPN: EM112DINAV01XS1PFA
Price
List Price £162.62 ex VAT
Your Price (ex VAT)
£162.62
Manufacturer Lead Time Please contact us for a delivery time before you order
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £162.62
Trade pricing is personalised to your account

Manufacturer Lead Time

£162.62

Why Choose the Carlo Gavazzi EM112DINAV01XS1PFA MID Energy Analyser?

The Carlo Gavazzi EM112DINAV01XS1PFA is a compact and highly accurate single-phase MID-certified energy analyser designed for precise consumption monitoring, fiscal metering and sub-metering applications. As part of the dependable Carlo Gavazzi EM112 series, it provides reliable energy measurement with integrated RS485 Modbus RTU communication for connection to energy management, building automation and monitoring systems.

Designed for DIN rail installation, the EM112DINAV01XS1PFA supports direct current measurement up to 100 A, helping simplify installation by removing the need for external current transformers. Its backlit LCD display with touch keypad provides clear access to energy readings and electrical parameters, making it suitable for commercial, industrial and smart building applications.

Operating from a 230 V AC single-phase supply, this MID energy analyser measures consumption energy and key electrical values including voltage, current, power, frequency and power factor. With self-powered operation, compact 2-DIN construction and MID approval, it is ideal for approved billing, tenant metering and energy efficiency projects.

Key Advantages

  • Compact single-phase MID-certified energy analyser for DIN rail mounting.
  • Direct measurement up to 100 A without external current transformers.
  • Integrated RS485 Modbus RTU communication for remote energy monitoring.
  • MID certified for approved fiscal metering applications.
  • Self-powered operation from the measured supply.
  • Backlit LCD display with integrated touch keypad.

Key Features

  • Carlo Gavazzi EM112 Series.
  • Single-phase (2-wire) MID energy analyser.
  • 230 V AC L-N input voltage.
  • Direct connection 5 (100) A.
  • RS485 Modbus RTU communication interface.
  • Designed for consumption energy metering.
  • Backlit LCD display with integrated touch keypad.
  • Compact 2-DIN module for DIN rail installation.

Reliable MID Metering with Modbus RTU Communication

The Carlo Gavazzi EM112DINAV01XS1PFA provides accurate consumption monitoring for installations where approved energy measurement and remote data access are required. Its MID certification makes it suitable for fiscal metering applications, while the RS485 Modbus RTU interface allows measured data to be integrated into building management systems, PLCs and energy monitoring platforms.

With direct measurement up to 100 A, self-powered operation and a compact DIN rail enclosure, the EM112DINAV01XS1PFA is a practical solution for electrical contractors, panel builders and facilities teams working on commercial metering, tenant billing and industrial energy efficiency projects.

Typical Applications

  • Commercial building sub-metering.
  • Tenant billing and energy cost allocation.
  • Building management systems (BMS).
  • Industrial control panels.
  • Electrical distribution boards.
  • Modbus-based energy monitoring systems.

Technical Specifications

Tick the specs you need, then view products that match.

MID Approval Yes
Measurement Connection Type Direct connection
Current Input Rating (A) 100 A
Device Type Energy analyser
Current 100 A
Voltage 230 V
Manufacturer Carlo Gavazzi
Series EM112
Model EM112DINAV01XS1PFA
Product type Single-phase MID energy analyser
Voltage input 230 V AC L-N
Current input 5 (100) A direct connection
Input phases 1-phase (2-wire)
Frequency 50 Hz
Energy metering Consumption
Communication RS485 Modbus RTU
Power supply Self-powered
Display Backlit LCD with touch keypad
Accuracy class Class B / Class 1 active energy
Approvals CE, MID, UKCA
Protection rating IP51 front, IP20 terminals
Mounting type DIN rail
Dimensions (H × W × D) approx. 90 × 35 × 63 mm

Frequently Asked Questions

What is the Carlo Gavazzi EM112DINAV01XS1PFA used for?

It is used for accurate single-phase energy consumption measurement, sub-metering and MID-approved billing applications in commercial and industrial installations.

Does this energy analyser support Modbus communication?

Yes. The EM112DINAV01XS1PFA includes an integrated RS485 Modbus RTU communication interface for remote monitoring and system integration.

What current can the analyser measure directly?

The unit supports direct current measurement from 5 A up to 100 A without requiring external current transformers.

Is the EM112DINAV01XS1PFA MID certified?

Yes. This model is MID certified, making it suitable for approved fiscal metering and billing applications where compliant energy measurement is required.

Where is this energy analyser typically installed?

It is designed for DIN rail mounting inside electrical distribution boards, switchboards, meter panels and industrial control panels.
