Why Choose the Carlo Gavazzi WM50AV53HBC Branch Circuit Analyser?

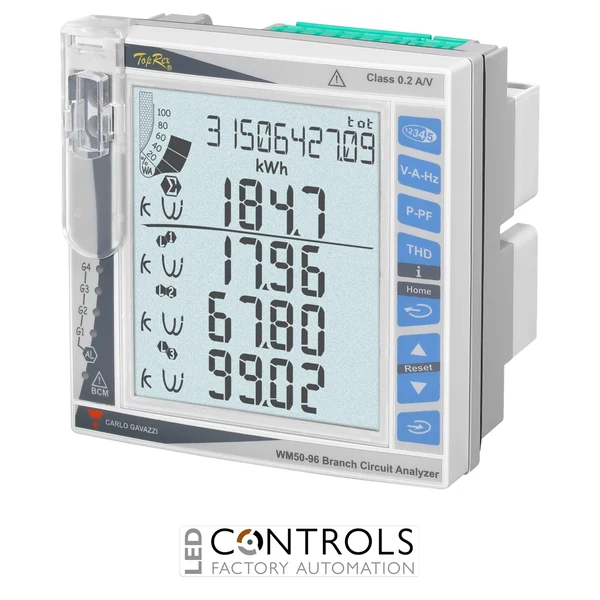

The Carlo Gavazzi WM50AV53HBC is a modular three-phase branch circuit power analyser designed for multi-load energy monitoring in low-voltage electrical distribution systems. As part of the Carlo Gavazzi WM50 series, it provides detailed measurement of multiple single-phase, two-phase and three-phase loads, making it ideal for switchboards, power distribution units and critical load monitoring applications.
This compact panel-mounted analyser is designed to work with TCD12 split-core current sensors, enabling simultaneous monitoring of numerous branch circuits without the complexity of conventional individual meter installations. Its modular design includes communication support, optical programming and data logging, helping engineers and facility managers improve visibility across electrical networks.
With support for 400 V class three-phase systems, 5 A current input and a 100–277 V AC/DC auxiliary power supply, the WM50AV53HBC is suited to industrial, commercial and data centre environments where accurate branch circuit monitoring, alarm management and long-term energy analysis are required.
Key Advantages
- Modular branch circuit power analyser for multi-load energy monitoring.
- Monitors multiple single-phase, two-phase and three-phase loads.
- Designed for use with TCD12 split-core current sensors.
- Can monitor up to 96 channels depending on the sensor configuration.
- Integrated data logging and alarm management for critical load monitoring.
- Panel-mounted design for switchboards, PDUs and electrical distribution panels.
Key Features
- Carlo Gavazzi WM50 branch circuit monitoring series.
- Multi-channel power analyser for low-voltage systems.
- 5 A current measurement configuration.
- 100–277 V AC/DC auxiliary power supply.
- Backlit LCD display for clear measurement visualisation.
- Supports communication modules and optical programming.
- Integrated data logging for energy and event tracking.
- Suitable for monitoring critical loads in industrial and commercial installations.
Advanced Branch Circuit Monitoring for Critical Loads
Branch circuit analysers such as the Carlo Gavazzi WM50AV53HBC allow engineers to monitor multiple outgoing circuits from a single compact unit. This helps reduce panel space, simplify installation and provide detailed visibility of energy consumption across separate loads in distribution boards and power distribution units.
The WM50 series is particularly useful in environments where uptime, load balancing and consumption tracking are essential. With channel-level monitoring, alarm management and data logging, the WM50AV53HBC helps support preventative maintenance, energy efficiency projects and operational reliability across critical electrical systems.
Typical Applications
- Branch circuit monitoring in electrical distribution panels.
- Data centre power distribution units.
- Industrial critical load monitoring.
- Commercial building energy management systems.
- Switchboards and low-voltage distribution boards.
- Hospitals, food storage facilities and production environments.
