Why Choose the ABB INS105 5m Flat Cable?

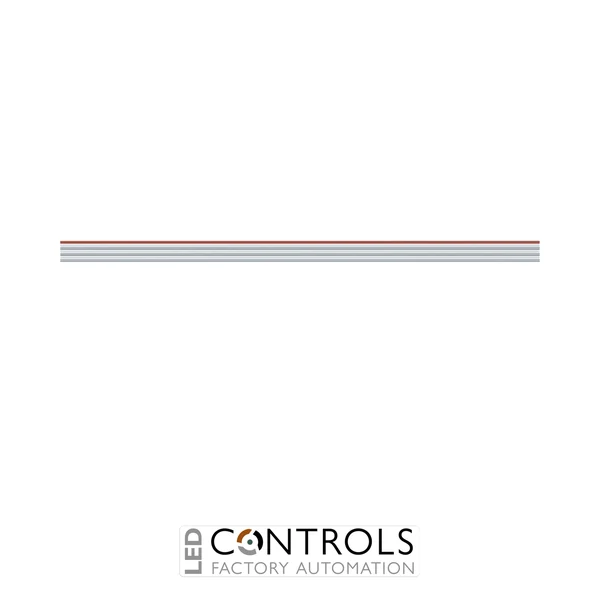

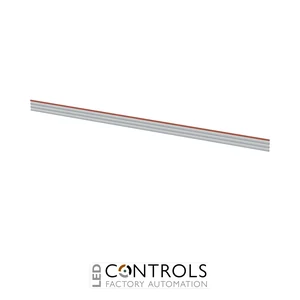

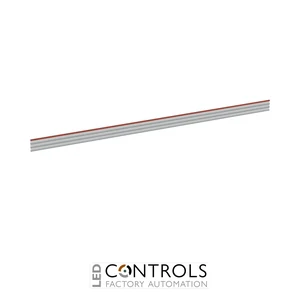

The ABB INS105, order code 2CCG000243R0001, is a 5 m flat cable designed for the ABB InSite energy monitoring architecture. It provides the InSite bus connection used to link compatible monitoring devices within an electrical distribution system, helping create an organised and scalable communication network.
Designed for use with compatible ABB InSite equipment, the INS105 enables information from devices such as CMS current sensors and digital I/O modules to be transmitted to the system control unit. Its flat-cable format supports flexible device positioning within a distribution board, allowing monitoring components to be installed at distances appropriate to the application.
With a total length of 5000 mm, the INS105 provides ample cable for multi-device installations while retaining the compact wiring architecture of the InSite system. It is a dedicated ABB accessory for professional energy monitoring installations where reliable communication between field devices and the control unit is required.
Key Advantages
- Genuine ABB 5 m InSite flat cable for energy monitoring installations.
- Provides the InSite bus connection between compatible monitoring components.
- Supports connection of compatible CMS current sensors and digital I/O modules.
- 5 m cable length provides flexibility when positioning devices within distribution boards.
- Flat-cable construction supports compact and organised panel wiring.
- Designed as part of the ABB InSite energy monitoring architecture.
- Suitable for scalable multi-device circuit and energy monitoring installations.
Key Features
- ABB INS105 flat cable.
- 5 m cable length.
- 5000 mm overall length.
- Designed for ABB InSite bus communication.
- Flat-cable construction.
- Used to connect compatible field devices to the InSite control architecture.
- Supports compatible ABB CMS current sensors.
- Supports compatible ABB digital I/O modules.
- Allows flexible positioning of connected devices within the installation.
- Designed for electrical distribution and energy monitoring systems.
Flexible InSite Bus Connectivity for Energy Monitoring
The ABB InSite architecture uses a flat-cable bus to connect compatible monitoring devices within an electrical distribution board. This approach simplifies communication wiring and allows current sensors and digital I/O modules to be positioned at suitable locations rather than requiring every device to be wired individually back to the control unit.
At 5 m long, the INS105 provides flexibility for installations containing multiple monitoring devices or equipment spread across a larger enclosure. Together with the appropriate ABB connectors and compatible InSite components, the cable forms part of the communication infrastructure required for scalable circuit-level monitoring and energy management.
Typical Applications
- ABB InSite energy monitoring systems.
- Connection of compatible ABB CMS current sensors.
- Connection of compatible ABB digital I/O modules.
- Sub-distribution board energy monitoring.
- Branch-circuit monitoring systems.
- Commercial and industrial distribution boards.
- Building energy management installations.
- Scalable multi-circuit electrical monitoring systems.
