Why Choose the ABB DM10 Digital Input and Output Module?

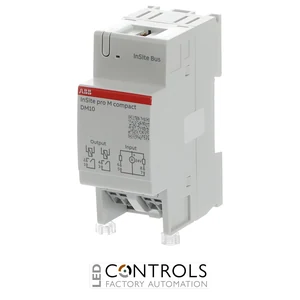

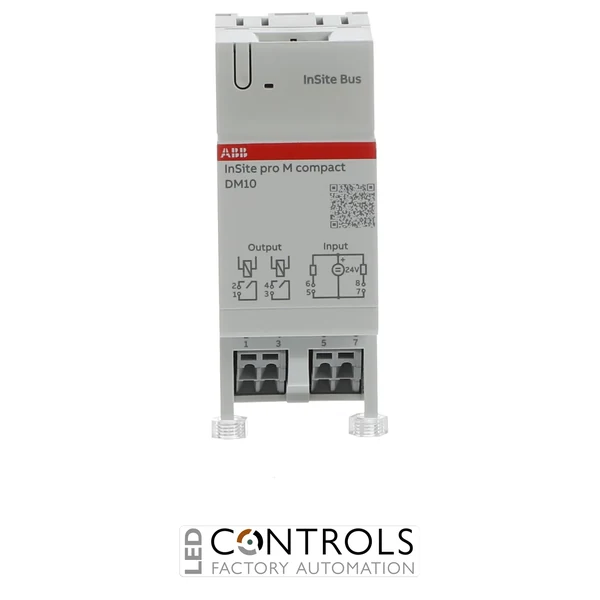

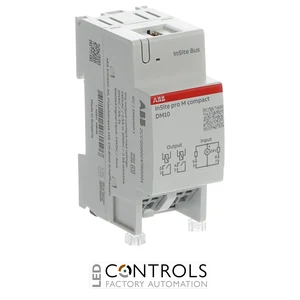

The ABB DM10 is a compact digital input and output module designed for ABB System pro M compact InSite energy and load management systems. Supplied under ABB order code 2CCG000247R0001, the module provides two digital inputs and two digital outputs, enabling a compatible InSite installation to receive status information from connected devices and execute control commands.
By combining input and output functionality in a single module, the DM10 provides a flexible interface between electrical equipment and the InSite monitoring platform. The digital inputs can be used to acquire external status signals, while the digital outputs enable control actions, supporting applications where both monitoring and automated response are required within an electrical distribution system.
The DM10 connects to the InSite bus via the system flat cable, simplifying integration alongside compatible current sensors, control units and other digital modules. Its compact construction and straightforward connection technology make it well suited to distribution boards and control panels where efficient use of installation space and reduced wiring complexity are important.
Key Advantages
- Combined two digital inputs and two digital outputs in one compact module.
- Enables both status acquisition and execution of control commands.
- Designed for integration with ABB System pro M compact InSite.
- Connects through the InSite bus flat-cable system.
- Supports monitoring and control functions within a single energy-management architecture.
- Screwless connection technology helps simplify field wiring.
- Compact format is suitable for installation in space-constrained distribution boards and control panels.
Key Features
- ABB System pro M compact InSite digital module.
- 2 digital input channels.
- 2 digital output channels.
- Supports input status monitoring and output control.
- InSite bus flat-cable communication interface.
- Designed for integration with compatible ABB InSite control units.
- Screwless terminals for convenient field connections.
- Individual module addressing within the InSite system.
- Suitable for energy-management, load-management and building-control applications.
Flexible Digital I/O for Energy and Load Management
Digital I/O modules such as the ABB DM10 extend an energy-monitoring system by providing an interface to external status signals and controllable equipment. Its two digital inputs allow the InSite system to receive information from connected devices, while its two outputs provide a means of implementing control actions generated by the monitoring or automation system.
Combining these functions with ABB current sensors, meters and compatible InSite control units enables electrical installations to incorporate monitoring and control within a common architecture. The InSite flat-cable bus reduces connection complexity and supports modular expansion as additional monitoring or control points are required.
Typical Applications
- ABB System pro M compact InSite energy-management systems.
- Electrical equipment status monitoring.
- Automated load-management and load-control systems.
- Commercial and industrial electrical distribution boards.
- Building energy-management and automation installations.
- Remote monitoring and control of electrical equipment.
