Why Choose the ABB INS-PS-2 Power Supply Module?

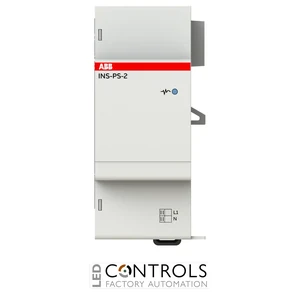

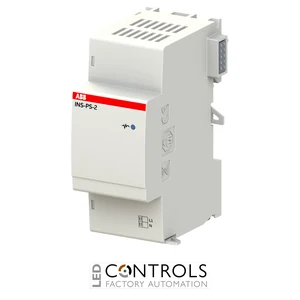

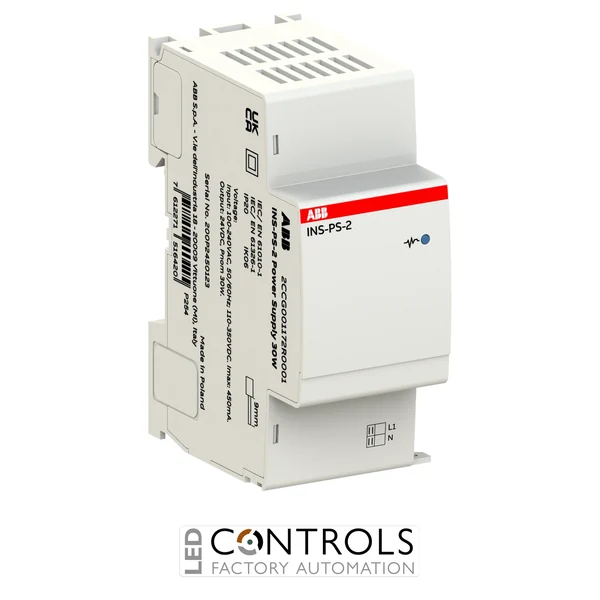

The ABB INS-PS-2 is a compact 30 W power supply module designed for the ABB InSite energy management system and the SCU200 control unit. Supplied under ABB order code 2CCG001172R0001, it provides the system power required by the SCU200 and compatible expansion modules in commercial and industrial energy-monitoring installations.
The INS-PS-2 accepts a wide 100–240 V AC or 110–350 V DC supply and provides up to 30 W continuous output power, with a peak capability of 45 W. This allows the module to power the SCU200 together with up to five additional compatible InSite modules, supporting expandable monitoring and communication architectures within electrical distribution systems.
Designed for straightforward panel integration, the INS-PS-2 is DIN-rail mounted and can be attached to the SCU200 without tools. Its InSite Modular Bus interface and screwless connection technology simplify system assembly, helping reduce wiring complexity while providing a dedicated power source for modular ABB InSite energy-management installations.
Key Advantages
- 30 W power supply module developed for ABB InSite energy management systems.
- Wide 100–240 V AC and 110–350 V DC input range for flexible installation.
- Provides up to 30 W continuous power with 45 W peak capability.
- Can supply the SCU200 plus up to five additional compatible modules.
- Tool-free attachment to the SCU200 simplifies system assembly.
- DIN-rail mounting supports convenient installation inside distribution boards.
- Integrated InSite Modular Bus interface for the ABB modular system architecture.
- Screwless connection technology helps simplify panel wiring.
Key Features
- ABB InSite power supply module.
- 30 W rated power output.
- 45 W peak power capability.
- 100–240 V AC input supply.
- 110–350 V DC input supply.
- Designed for the ABB SCU200 control unit.
- Supports the SCU200 and up to five additional InSite modules.
- InSite Modular Bus communication interface.
- DIN-rail mounting.
- Screwless electrical connections.
Reliable Power for Modular Energy Management
Power supply modules such as the ABB INS-PS-2 provide the stable system power needed by modular energy-monitoring equipment. By supplying the SCU200 and compatible expansion modules from a dedicated unit, the INS-PS-2 supports the creation of scalable monitoring systems incorporating metering, communication and other InSite functions.
The combination of a wide AC/DC input range, 30 W continuous output and support for multiple modules makes the INS-PS-2 particularly useful for expanded SCU200 installations. DIN-rail mounting, tool-free connection to the control unit and screwless terminals further simplify integration into modern electrical distribution boards.
Typical Applications
- ABB InSite energy management systems.
- Power supply for ABB SCU200 control units.
- Multi-module InSite energy-monitoring installations.
- Commercial and industrial electrical distribution boards.
- Building energy-management systems.
- Electrical load and consumption monitoring installations.
