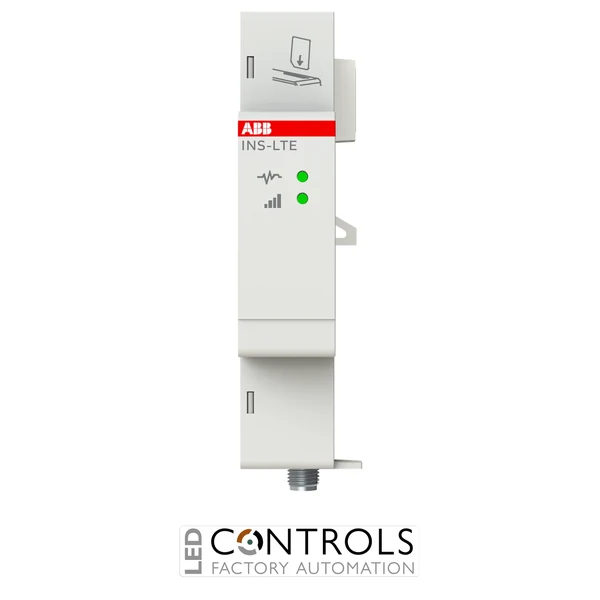

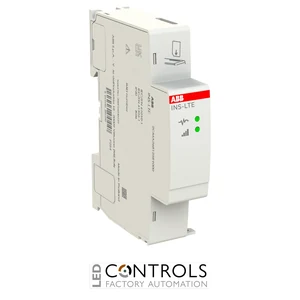

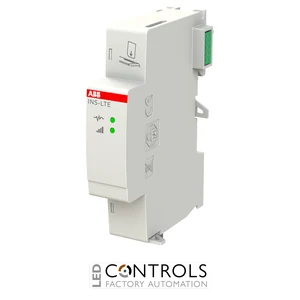

Why Choose the ABB INS-LTE 4G LTE Connectivity Module?
The ABB INS-LTE is a compact 4G LTE connectivity module designed to extend the communication capabilities of the ABB InSite energy-management system. Installed alongside a compatible SCU200 or SCU200-W control unit, it provides cellular connectivity for remote energy-management applications where a conventional wired network connection may not be available or preferred.
The module communicates using LTE/4G and accepts a Micro SIM (3FF). It supports LTE-FDD frequency bands B1, B3, B5, B7, B8 and B20 for European deployments and is designed to connect ABB InSite installations to services such as ABB Ability InSite Energy Pro through cellular networks.
Powered directly through the InSite modular bus at 24 V DC, the INS-LTE requires no separate module-level power connection when incorporated into a correctly configured system. Its compact 17.5 mm DIN-rail format, external antenna connection and direct integration with the SCU200 architecture make it a practical communications upgrade. ABB order code 2CMA268125R1000 identifies this dedicated InSite LTE module.
Key Advantages
- Adds LTE/4G cellular connectivity to compatible ABB InSite installations.
- Designed for direct integration with ABB SCU200 and SCU200-W control units.
- Supports a standard Micro SIM (3FF) for cellular network access.
- Powered at 24 V DC through the InSite modular bus, simplifying system wiring.
- External antenna connection supports flexible antenna positioning within suitable installations.
- Compact 17.5 mm single-module DIN-rail format minimises distribution-board space requirements.
Key Features
- ABB InSite LTE connectivity expansion module.
- LTE/4G communication protocol.
- Micro SIM (3FF) card format.
- LTE-FDD bands B1/B3/B5/B7/B8/B20.
- Maximum RF output power of 23 dBm.
- 24 V DC supply via the InSite modular bus.
- Power consumption of 0.24 W in idle mode.
- External antenna interface using male SMA, 50 Ω.
- Antenna frequency range of 0.8–2.6 GHz.
- Designed for indoor use in Europe and the UK.
Cellular Connectivity for ABB InSite Energy Management
The INS-LTE enables compatible ABB InSite installations to communicate over cellular networks, providing an alternative communications path where fixed Ethernet infrastructure is unavailable or impractical. This can support remote monitoring of energy data and connected assets across commercial, industrial and distributed electrical installations.
Direct integration with the SCU200 architecture keeps the solution compact and modular. The module receives power through the InSite modular bus, provides clear LED status indication and uses an external antenna for cellular communication, allowing the communications hardware to be incorporated efficiently into the wider InSite system.
Typical Applications
- ABB InSite energy-management systems.
- ABB SCU200 and SCU200-W installations.
- Remote energy and load monitoring.
- Cellular connectivity for distribution boards.
- Commercial building energy management.
- Industrial electrical monitoring.
- Distributed sites without convenient wired network infrastructure.
- Connectivity to compatible ABB cloud-based energy-management services.
