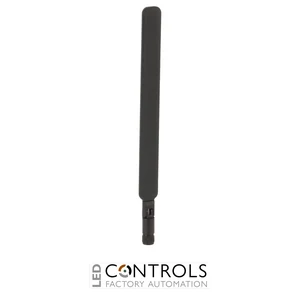

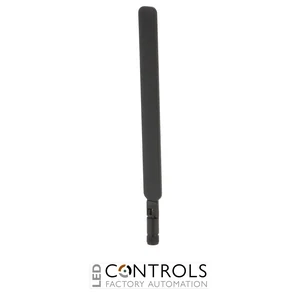

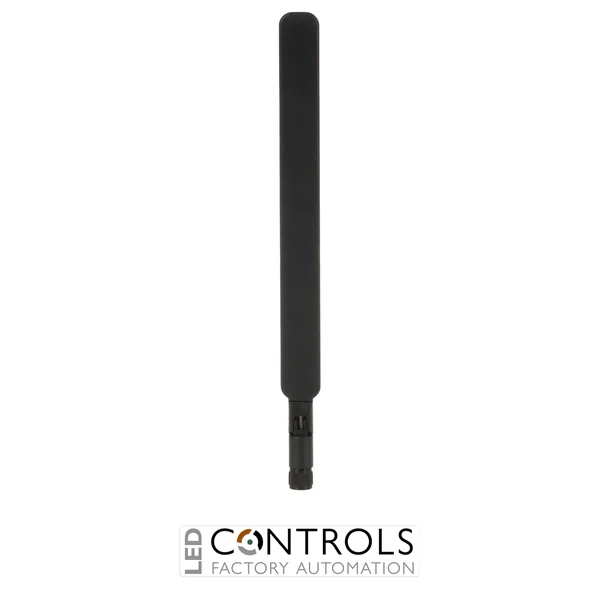

2CMA269075R1000 ABB INS-ATE Antenna for InSite System

2CMA269075R1000 ABB INS-ATE Antenna for InSite System

ABB INS-ATE 2CMA269075R1000 is a wide-band SMA male antenna designed for compatible wireless connections within the ABB InSite energy management system.

SKU: 2CMA269075R1000Alt SKU: INS-ATEMPN: 2CMA269075R1000
Price
List Price £8.90 ex VAT
Your Price (ex VAT)
£8.90
Manufacturer Lead Time Estimated Delivery 9 weeks
Get the best trade prices Trade exclusive

Create a trade account to unlock exclusive pricing, special offers and more.

Sign up for a trade account Quick & easy setup
SUBTOTAL (EX VAT) £8.90
Trade pricing is personalised to your account

Manufacturer Lead Time

£8.90

Why Choose the ABB INS-ATE Antenna for the InSite System?

The ABB INS-ATE, order code 2CMA269075R1000, is a wide-band RF antenna for the ABB InSite energy management system, designed to support wireless communication across compatible InSite control units and expansion modules. As part of ABB's Energy Monitoring Systems portfolio, it provides a tested antenna solution for wireless connections within the InSite range.

The INS-ATE is designed for use with compatible SCU200-W, INS-LORA, INS-LTE and INS-WM devices, providing one versatile antenna for multiple wireless technologies within the InSite ecosystem. Its broad frequency coverage makes it suitable for the different wireless communication requirements supported by these devices, helping simplify specification and installation.

Featuring a straight whip design, SMA male termination and connector mounting, the INS-ATE provides straightforward connection to compatible InSite equipment. The antenna supports nine frequency bands across a wide spectrum from 698 MHz up to 6 GHz and has an IP55 ingress protection rating.

Key Advantages

  • ABB-tested antenna for wireless connections within the InSite range.
  • Compatible with SCU200-W, INS-LORA, INS-LTE and INS-WM devices.
  • Wide-band operation covering frequencies from 698 MHz to 6 GHz across multiple bands.
  • Nine-band antenna design supports multiple wireless communication applications.
  • SMA male connector provides direct connection to compatible equipment.
  • IP55 protection rating provides protection against dust ingress and water jets.
  • Compact straight whip format simplifies installation with compatible InSite devices.

Key Features

  • ABB InSite energy management system antenna.
  • Wide-band RF antenna with nine supported frequency bands.
  • Frequency coverage spanning 698 MHz to 6 GHz across specified ranges.
  • SMA male termination.
  • Straight whip antenna construction.
  • Connector-mounted installation.
  • IP55 ingress protection.
  • Maximum antenna height of 190 mm.
  • Suitable for wireless applications including LTE.

Reliable Wireless Connectivity for ABB InSite

The ABB InSite energy management system provides monitoring and management of energy and connected electrical loads in distribution applications. Wireless communication options expand the system's connectivity, enabling compatible InSite devices to communicate using technologies such as cellular, LoRa and Wireless M-Bus according to the installed module and application.

The INS-ATE provides a common ABB-tested external antenna solution for compatible wireless products in the InSite range. Its wide frequency coverage and SMA connection make it suitable for the differing radio requirements of SCU200-W and the INS-LORA, INS-LTE and INS-WM expansion modules.

Typical Applications

  • ABB InSite energy management installations.
  • SCU200-W wireless energy monitoring systems.
  • INS-LTE cellular communication installations.
  • INS-LORA long-range wireless communication installations.
  • INS-WM Wireless M-Bus installations.
  • Energy monitoring and load management systems.
  • Commercial and industrial electrical distribution applications.

Technical Specifications

Tick the specs you need, then view products that match.

Device Type Accessory
Product group Energy Monitoring Systems
Product code INS-ATE
Order code / Product ID 2CMA269075R1000
Product type RF / wireless antenna
System ABB InSite energy management system
RF family / standard Cellular
Frequency group Wide band
Number of bands 9
Frequency ranges 698–960 MHz; 824 MHz–1.28 GHz; 1.176–1.61 GHz; 1.4–2.17 GHz; 1.71–2.69 GHz; 2.17–2.7 GHz; 3.3–4 GHz; 4–5 GHz; 5–6 GHz
Centre / band frequencies 829 MHz, 1.228 GHz, 1.505 GHz, 1.762 GHz, 1.94 GHz, 2.43 GHz, 3.65 GHz, 4.5 GHz, 5.5 GHz
Antenna type Straight whip
Termination SMA male
VSWR 3
Gain 1.7 dBi, 1.9 dBi, 3 dBi, 2.6 dBi
Protection rating IP55
Mounting type Connector mounting
Maximum height 190 mm
Compatible InSite devices SCU200-W, INS-LORA, INS-LTE and INS-WM
Application Wireless communication including LTE

Frequently Asked Questions

What is the ABB INS-ATE 2CMA269075R1000 used for?

The INS-ATE is an external wide-band RF antenna designed for compatible wireless devices within the ABB InSite energy management system.

Which ABB InSite products are compatible with the INS-ATE antenna?

The INS-ATE is tested for wireless connections with compatible SCU200-W, INS-LORA, INS-LTE and INS-WM products in the ABB InSite range.

What frequency range does the ABB INS-ATE support?

The antenna provides wide-band coverage across nine specified bands, extending from 698 MHz up to 6 GHz.

What connector does the INS-ATE use?

The ABB INS-ATE uses an SMA male connector for connection to compatible InSite wireless equipment.

What is the protection rating of the ABB INS-ATE?

The INS-ATE has an IP55 ingress protection rating and uses a connector-mounted straight whip antenna design.

Designed for the ABB InSite Ecosystem

The ABB INS-ATE provides a tested wide-band antenna solution for wireless connections across compatible products in the InSite energy management range, supporting reliable integration of SCU200-W, INS-LORA, INS-LTE and INS-WM applications.
