Why Choose the ABB INS-HMI InSite HMI Display?

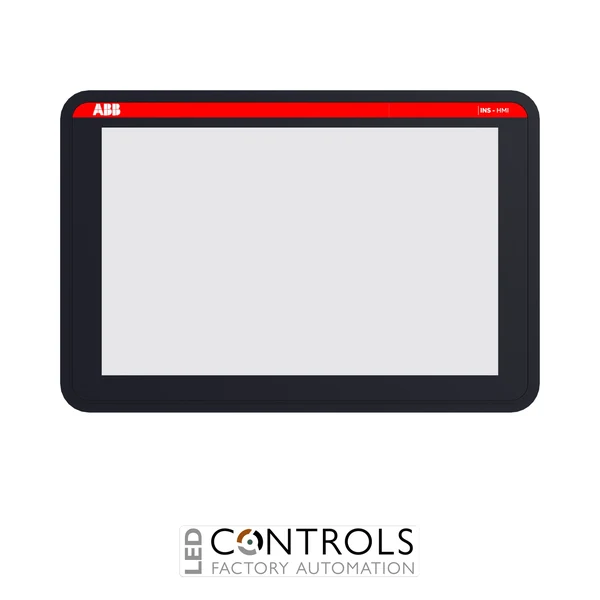

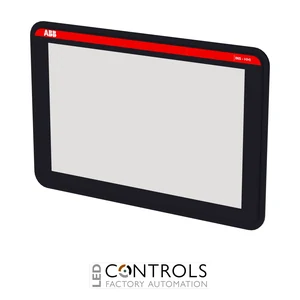

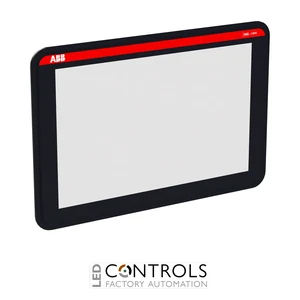

The ABB INS-HMI is a 10.1-inch touchscreen HMI display designed to provide local access to the integrated web server of ABB InSite energy monitoring systems. Supplied under ABB order code 2CMA278465R1000, it is compatible with the ABB SCU100 and SCU200 control units and provides an intuitive panel-mounted interface for viewing energy and electrical monitoring information directly at the distribution board.
Designed as an external monitor for the InSite web interface, the INS-HMI enables operators and maintenance personnel to access system visualisation without requiring a separate computer at the installation. The touchscreen format makes dashboards, measurement values and other information available locally, supporting convenient supervision of energy consumption and electrical distribution performance.
The INS-HMI is designed for panel or enclosure-door mounting and measures approximately 262 × 176 × 41 mm. It includes a 10/100 Mbit/s RJ45 Ethernet interface, two USB 2.0 ports and a microSD/TF card slot, while its front face provides IP64 protection for use in indoor electrical-panel applications.
Key Advantages
- 10.1-inch touchscreen display for local ABB InSite system visualisation.
- Compatible with ABB SCU100 and SCU200 control units.
- Displays the integrated InSite web server directly at the electrical distribution board.
- Panel and enclosure-door mounting provides convenient operator access.
- Integrated 10/100 Mbit/s Ethernet interface for network connectivity.
- Two USB 2.0 ports provide peripheral connectivity.
- IP64 front protection supports installation in industrial electrical panels.
Key Features
- ABB InSite HMI touchscreen display.
- 10.1-inch display format.
- Designed for visualisation of the InSite integrated web server.
- Compatible with SCU100 and SCU200.
- 10/100 Mbit/s RJ45 Ethernet network interface.
- 2 × USB 2.0 ports, each supporting up to 500 mA.
- MicroSD / TF card slot.
- IP64 front and IP20 rear protection ratings.
- Landscape-orientation panel mounting.
- Designed for indoor use.
Local Visualisation for InSite Energy Monitoring
Human-machine interfaces such as the ABB INS-HMI provide convenient local access to information collected by an energy monitoring system. By displaying the InSite web server on a dedicated touchscreen, operators can view measurement information and system data directly at the electrical distribution board rather than relying on a separate workstation for routine supervision.
The combination of Ethernet connectivity, touchscreen operation and enclosure-door mounting makes the INS-HMI particularly suitable for professional energy-management installations. When paired with an SCU100 or SCU200, it provides a dedicated local visualisation point for ABB InSite monitoring data while maintaining the modular architecture of the wider system.
Typical Applications
- ABB InSite energy monitoring systems.
- Local visualisation of SCU100 and SCU200 monitoring data.
- Commercial and industrial electrical distribution boards.
- Building energy-management installations.
- Panel-mounted energy and electrical monitoring interfaces.
- Facility-management and electrical maintenance applications.
