Why Choose the Lovato DMGM3KIT01 Current Clamp and Voltage Cable Kit?
The Lovato DMGM3KIT01 is a dedicated current clamp and voltage measurement cable kit designed for use with Lovato DMG...M3 portable power analysers. It provides the essential accessories required to connect a compatible portable analyser to three-phase electrical systems for temporary energy monitoring, commissioning and power-quality investigations.

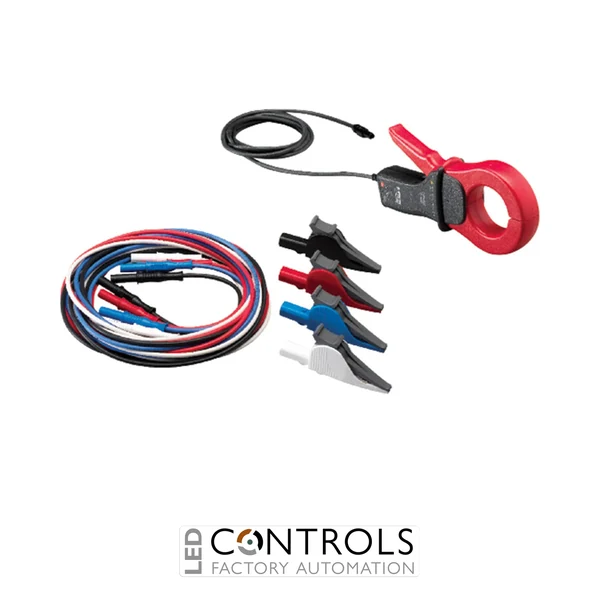

The kit contains three 1000/1 current clamps for measuring the current flowing through the three phase conductors. Clamp-style sensors allow measurements to be taken without disconnecting or cutting the monitored cables, helping engineers install the equipment quickly and with minimal disruption.
Four voltage measurement cables with alligator clips are also included for connection to the electrical network. Together, the current clamps and voltage leads provide a practical measurement solution for portable Lovato power analysers. The DMGM3KIT01 is listed as out of catalogue, so contact LED Controls to check availability or discuss a suitable alternative.
Key Advantages
- Complete measurement accessory kit for compatible Lovato DMG...M3 portable analysers.
- Includes three 1000/1 current clamps.
- Includes four alligator clip voltage measurement cables.
- Enables non-intrusive current measurement around existing conductors.
- Suitable for temporary three-phase electrical monitoring.
- Supports rapid deployment during commissioning and maintenance.
- Ideal for portable energy audits and power-quality investigations.
- Supplied as one coordinated measurement kit.
Key Features
- Lovato DMGM3KIT01 portable measurement accessory kit.
- Designed for Lovato DMG...M3 portable devices.
- Three clamp-on current sensors included.
- 1000/1 current clamp ratio.
- Four voltage measurement leads included.
- Alligator clip terminations for convenient voltage connections.
- Suitable for three-phase network measurements.
- Supports current, voltage, power and energy analysis through the connected instrument.
- Portable format for field testing and maintenance work.
- Conforms to relevant electrical measurement and EMC standards.
Practical Connections for Portable Power Analysis
The Lovato DMGM3KIT01 allows a compatible portable analyser to be connected to a three-phase electrical installation without permanently modifying the switchboard. The clamp sensors fit around the phase conductors, while the alligator clip leads provide the voltage references required for calculating power, power factor, energy consumption and other network parameters.
This portable arrangement is particularly useful when measurements are required across several installations or only for a limited monitoring period. Engineers can use the kit for commissioning, fault diagnosis, load surveys and energy audits before removing the equipment and deploying it at another location.
Typical Applications
- Portable three-phase power analysis.
- Industrial energy audits.
- Electrical installation commissioning.
- Temporary load and demand monitoring.
- Power-quality investigations.
- Switchboard and feeder testing.
- Preventive maintenance surveys.
- Electrical fault diagnosis.
