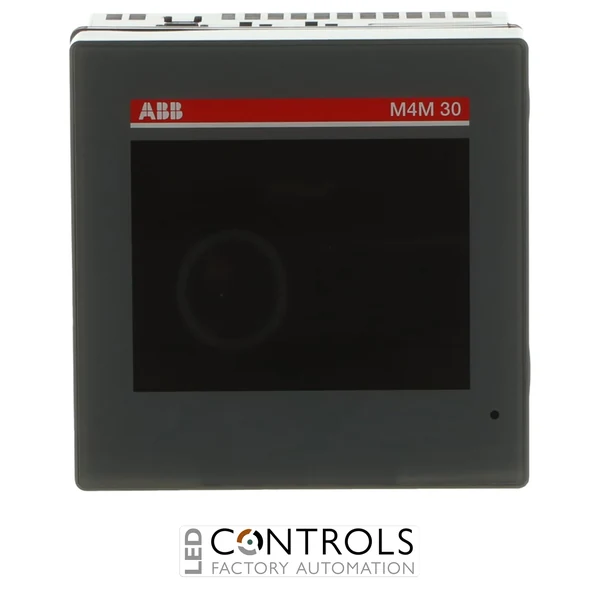

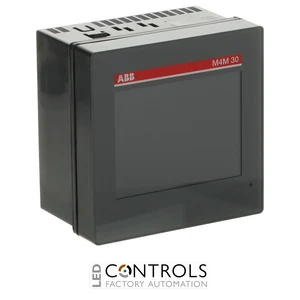

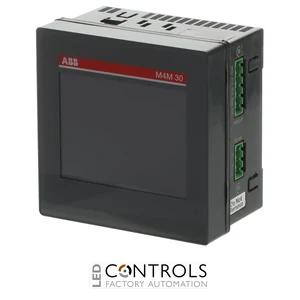

Why Choose the ABB M4M 30 Rogowski Network Analyser?
The ABB M4M 30 Rogowski is an advanced three-phase network analyser and power-quality meter designed for detailed electrical measurement, energy-efficiency monitoring and power-quality analysis in industrial and commercial installations. As part of the ABB M4M 30 panel-mounted meter series, it combines comprehensive electrical measurements with an intuitive colour touchscreen, communications and flexible monitoring functions.
This version is specifically designed for use with ABB R4M Rogowski coils, providing a flexible current-measurement solution that is particularly useful for retrofit installations. The M4M 30 Rogowski provides four Rogowski coil inputs and can be used with ABB R4M-80 and R4M-200 coils, allowing current measurement to be added around existing conductors with minimal disruption to the electrical installation.
The analyser supports Modbus RTU via RS485 and Bluetooth communication and includes four programmable I/O. With a 48–240 V AC/DC auxiliary supply, 96 × 96 mm front-panel format and extensive measurement of voltage, current, power, energy, power factor, frequency, harmonics and other power-quality parameters, it provides a versatile monitoring platform for modern electrical distribution systems.
Key Advantages
- Advanced network analysis and power-quality monitoring for electrical distribution systems.
- Designed specifically for ABB R4M Rogowski coils for flexible current measurement.
- Ideal for retrofit installations where conventional current transformers may be difficult to install.
- Modbus RTU and Bluetooth communications support integration and commissioning.
- Four programmable I/O provide flexible signalling and control capabilities.
- Colour touchscreen simplifies configuration and access to measurement data.
- Comprehensive energy and power-quality information supports energy-efficiency analysis and troubleshooting.
Key Features
- ABB M4M 30 network analyser series.
- Dedicated Rogowski-coil current measurement.
- Four Rogowski coil inputs for advanced network configurations and neutral-current measurement.
- Compatible with ABB R4M-80 and R4M-200 Rogowski coils.
- Modbus RTU communication via RS485.
- Integrated Bluetooth connectivity for smart commissioning.
- Four programmable I/O.
- Colour touchscreen display.
- Measurement of voltage, current, frequency, power factor and active, reactive and apparent power.
- Active, reactive and apparent energy measurement.
- Power-quality analysis including THD and individual harmonics up to the 40th harmonic.
- Waveform capture and phasor-diagram functionality.
- 32 MB onboard memory for data and event recording.
Comprehensive Power and Energy Monitoring
The ABB M4M 30 Rogowski provides detailed visibility of an electrical network by measuring fundamental quantities including voltage, current, frequency, power factor, active power, reactive power, apparent power and energy. Advanced functions such as harmonic analysis, THD measurement, waveform capture and phasor diagrams help engineers identify power-quality issues and evaluate electrical-system performance.
Rogowski-coil technology is particularly valuable when monitoring existing installations because the flexible coils can be fitted around conductors without the installation constraints associated with conventional closed-core current transformers. Combined with Modbus RTU, Bluetooth and programmable I/O, the M4M 30 Rogowski provides a flexible platform for energy-management, power-quality and electrical-distribution monitoring systems.
Typical Applications
- Industrial electrical distribution systems.
- Commercial building energy monitoring.
- Power-quality analysis and troubleshooting.
- Energy-efficiency monitoring and optimisation.
- Retrofit metering of existing electrical installations.
- Main and sub-distribution switchboards.
- Industrial machinery and production facilities.
- Building-management and energy-management systems.
