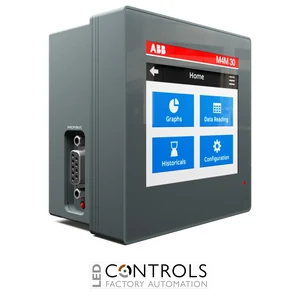

Why Choose the ABB M4M 30 PROFIBUS Network Analyzer?
The ABB M4M 30 PROFIBUS is an advanced three-phase network analyzer designed for detailed electrical measurement, energy monitoring and power-quality analysis. Part of ABB's M4M range of panel-mounted meters, it combines comprehensive metering capabilities with an intuitive colour touchscreen interface for commercial and industrial electrical distribution systems.
This version incorporates PROFIBUS DP-V0 communication, enabling the network analyzer to exchange measurement data with compatible industrial automation and energy-management systems. It also provides Bluetooth Low Energy (BLE) connectivity for convenient local commissioning and 4 programmable I/O for flexible integration with additional monitoring and control functions.
The M4M 30 PROFIBUS is designed for three-phase electrical networks with a 50–400 V measurement range and provides active-energy measurement accuracy of ±0.5%. Its 96 mm × 96 mm front-panel format, colour touchscreen and industrial communication capabilities make it a versatile metering solution for switchboards, control panels and energy-management applications.
Key Advantages
- Advanced three-phase network analysis for electrical distribution systems.
- Integrated PROFIBUS DP-V0 communication for industrial network integration.
- Bluetooth Low Energy supports convenient local commissioning and configuration.
- 4 programmable I/O for flexible monitoring and control applications.
- Colour touchscreen interface provides straightforward access to measurements and settings.
- Supports detailed power-quality and energy-efficiency analysis.
- Standard 96 mm × 96 mm panel-mount format for electrical switchboards and control panels.
Key Features
- ABB M4M 30 network analyzer series.
- Three-phase electrical measurement.
- PROFIBUS DP-V0 communication.
- Bluetooth Low Energy (BLE) connectivity.
- 4 programmable I/O.
- 48–240 V AC/DC auxiliary supply.
- 50–400 V voltage measurement range.
- ±0.5% active-energy accuracy.
- Graphic colour touchscreen display.
- Power-quality and energy-efficiency monitoring functions.
- Front-panel mounting for switchboards and electrical panels.
Advanced Network and Energy Analysis
The ABB M4M 30 range is designed to provide detailed visibility into electrical networks, supporting measurement of key electrical and energy parameters alongside power-quality analysis. The touchscreen colour interface gives operators direct access to measurement data and configuration functions, while the meter's monitoring capabilities support energy-efficiency evaluation and electrical-system diagnostics.
For industrial automation environments, the M4M 30 PROFIBUS adds PROFIBUS DP-V0 communication for integration with compatible controllers, supervisory systems and energy-management architectures. Bluetooth connectivity supports local commissioning, while four programmable I/O provide additional flexibility for interfacing the analyzer with external equipment and monitoring functions.
Typical Applications
- Industrial electrical distribution systems.
- PROFIBUS-based industrial automation networks.
- Commercial and industrial switchboards.
- Energy-efficiency monitoring and analysis.
- Power-quality monitoring applications.
- Electrical load and consumption monitoring.
- Factory and infrastructure energy-management systems.
- Three-phase electrical network monitoring.
